text version of content this owner's manual page from owners manual to the vehicle Seat Cordoba, year of production 2002 - 2009:

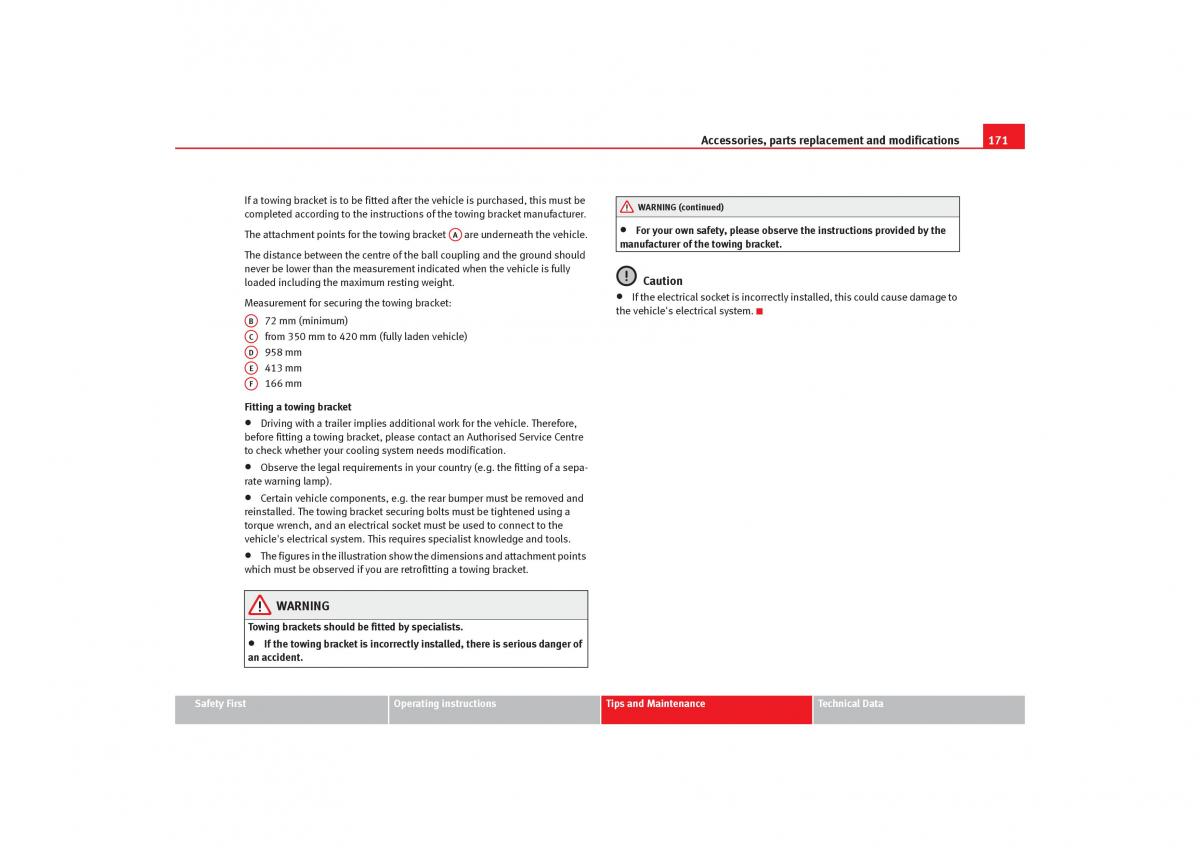

COR_ING_0707 Seite 171 Mittwoch, 1. August 2007 6:25 18 Accessories, parts replacement and modifications171 If a towing bracket is to be fitted after the vehicle is purchased, this must be WARNING (continued) completed according to the instructions of the towing bracket manufacturer. The attachment points for the towing bracket A are underneath the vehicle.• For your own safety, please observe the instructions provided by the A manufacturer of the towing bracket. The distance between the centre of the ball coupling and the ground should never be lower than the measurement indicated when the vehicle is fully loaded including the maximum resting weight. Caution Measurement for securin g the towing bracket: • If the electrical socket is incorrectly installed, this could cause damage to the vehicle's electrical system. B A72 mm (minimum) C from 350 mm to 420 mm (fully laden vehicle) A D 958 mm A E A413 mm F 166 mm A Fitting a towing bracket • Driving with a trailer implies additional work for the vehicle. Therefore, before fitting a towing bracket, please contact an Authorised Service Centre to check whether your cooling system needs modification. • Observe the legal requirements in your country (e.g. the fitting of a sepa- rate warning lamp). • Certain vehicle components, e.g. the rear bumper must be removed and reinstalled. The towing bracket securing bolts must be tightened using a torque wrench, and an electrical socket must be used to connect to the vehicle's electrical system. This requires specialist knowledge and tools. • The figures in the illustration show the dimensions and attachment points which must be observed if you are retrofitting a towing bracket. WARNING Towing brackets should be fitted by specialists. • If the towing bracket is incorrectly installed, there is serious danger of an accident. Safety First Operating instructions Tips and Maintenance Technical Data
