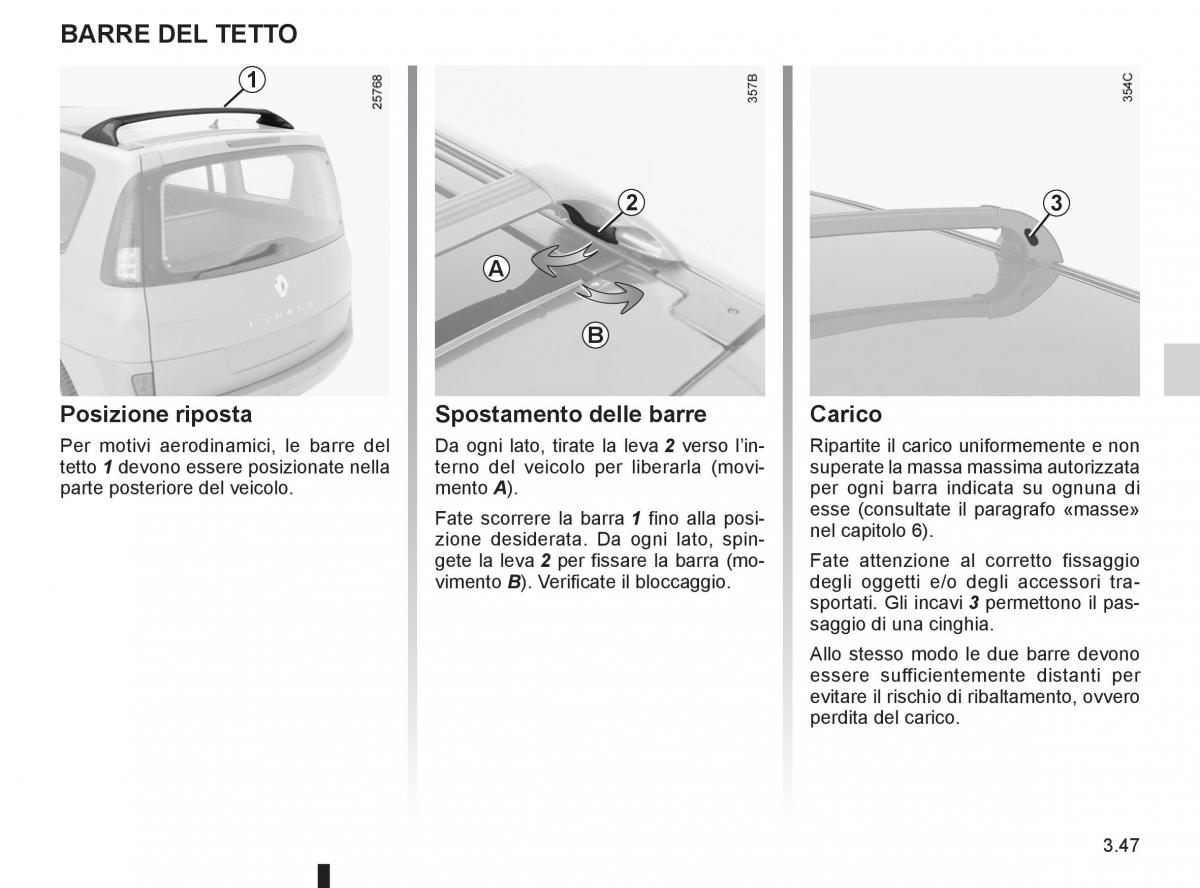

BARRE DEL TETTO
1
2 3
A
B
Posizione riposta Spostamento delle barre Carico
Per motivi aerodinamici, le barre del Da ogni lato, tirate la leva 2 verso l’in- Ripartite il carico uniformemente e non
tetto 1 devono essere posizionate nella terno del veicolo per liberarla (movi- superate la massa massima autorizzata
parte posteriore del veicolo. mento A). per ogni barra indicata su ognuna di
Fate scorrere la barra 1 fino alla posi- esse (consultate il paragrafo «masse»
zione desiderata. Da ogni lato, spin- nel capitolo 6).
gete la leva 2 per fissare la barra (mo- Fate attenzione al corretto fissaggio
vimento B). Verificate il bloccaggio. degli oggetti e/o degli accessori tra-
sportati. Gli incavi 3 permettono il pas-
saggio di una cinghia.
Allo stesso modo le due barre devono
essere sufficientemente distanti per
evitare il rischio di ribaltamento, ovvero
perdita del carico.
3.47
ITA_UD20403_1
ITA_NU_1009-2_X81_Renault_3 Barres de toit (X81 - J81 - Renault)
Barres de toit
galerie
barres de toit . (jusqu’à la fin de l’UD)
barres de toit. (jusqu’à la fin de l’UD)
