from owners manual to the vehicle Fiat Punto, year of production 1999 - 2011:

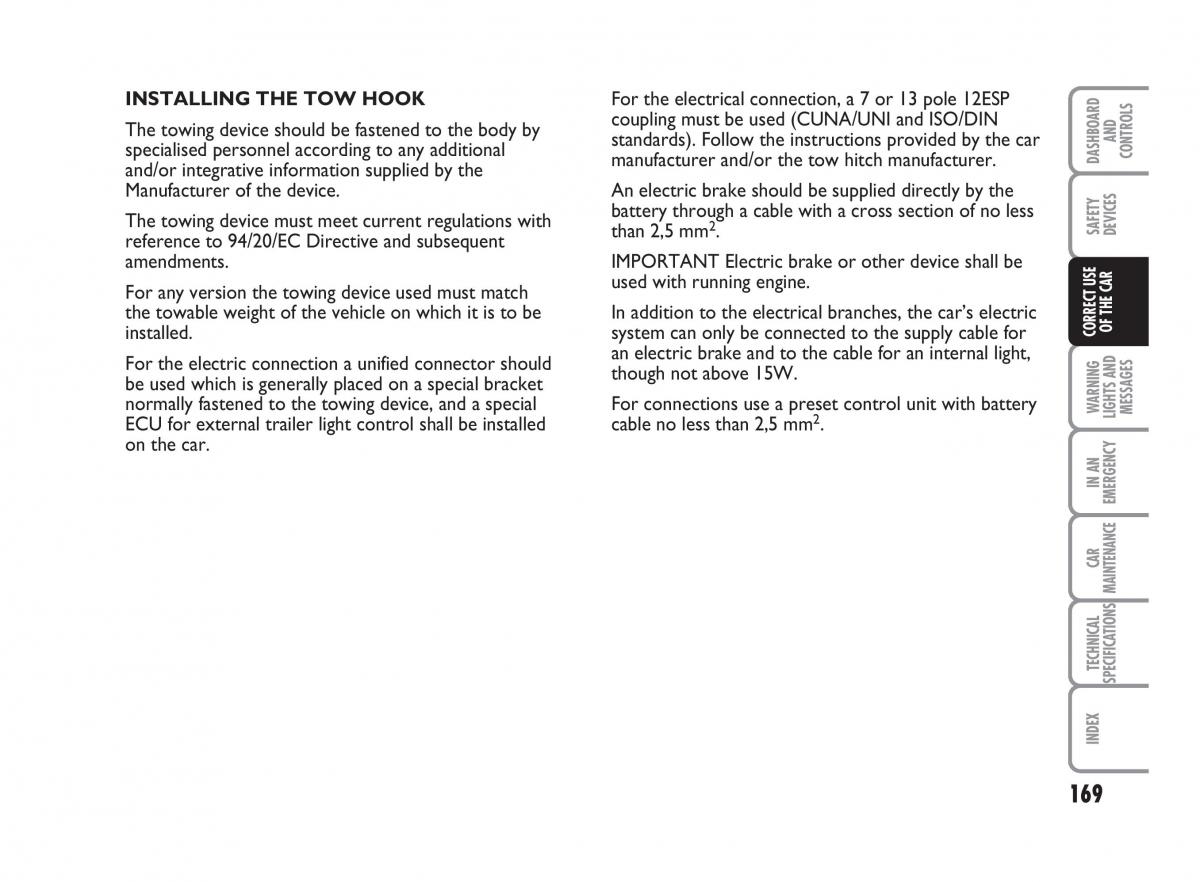

INSTALLING THE TOW HOOK For the electrical connection, a 7 or 13 pole 12ESP
The towing device should be fastened to the body bycoupling must be used (CUNA/UNI and ISO/DIN
specialised personnel according to any additionalstandards). Follow the instructions provided by the carAND
manufacturer and/or the tow hitch manufacturer.DASHBOARDCONTROLS
and/or integrative information supplied by the
Manufacturer of the device. An electric brake should be supplied directly by the
The towing device must meet current regulations withbattery through a cable with a cross section of no less
reference to 94/20/EC Directive and subsequentthan 2,5 mm2. SAFETYDEVICES
amendments. IMPORTANT Electric brake or other device shall be
For any version the towing device used must matchused with running engine.
the towable weight of the vehicle on which it is to beIn addition to the electrical branches, the cars electricOF THE CAR
installed. system can only be connected to the supply cable forCORRECT USE
For the electric connection a unified connector shouldan electric brake and to the cable for an internal light,
be used which is generally placed on a special bracketthough not above 15W.
normally fastened to the towing device, and a specialFor connections use a preset control unit with batteryARNING
WLIGHTS ANDMESSAGES
ECU for external trailer light control shall be installedcable no less than 2,5 mm2.
on the car.
IN AN
EMERGENCY
CAR
MAINTENANCE
TIONS
TECHNICALSPECIFICA
INDEX
169
