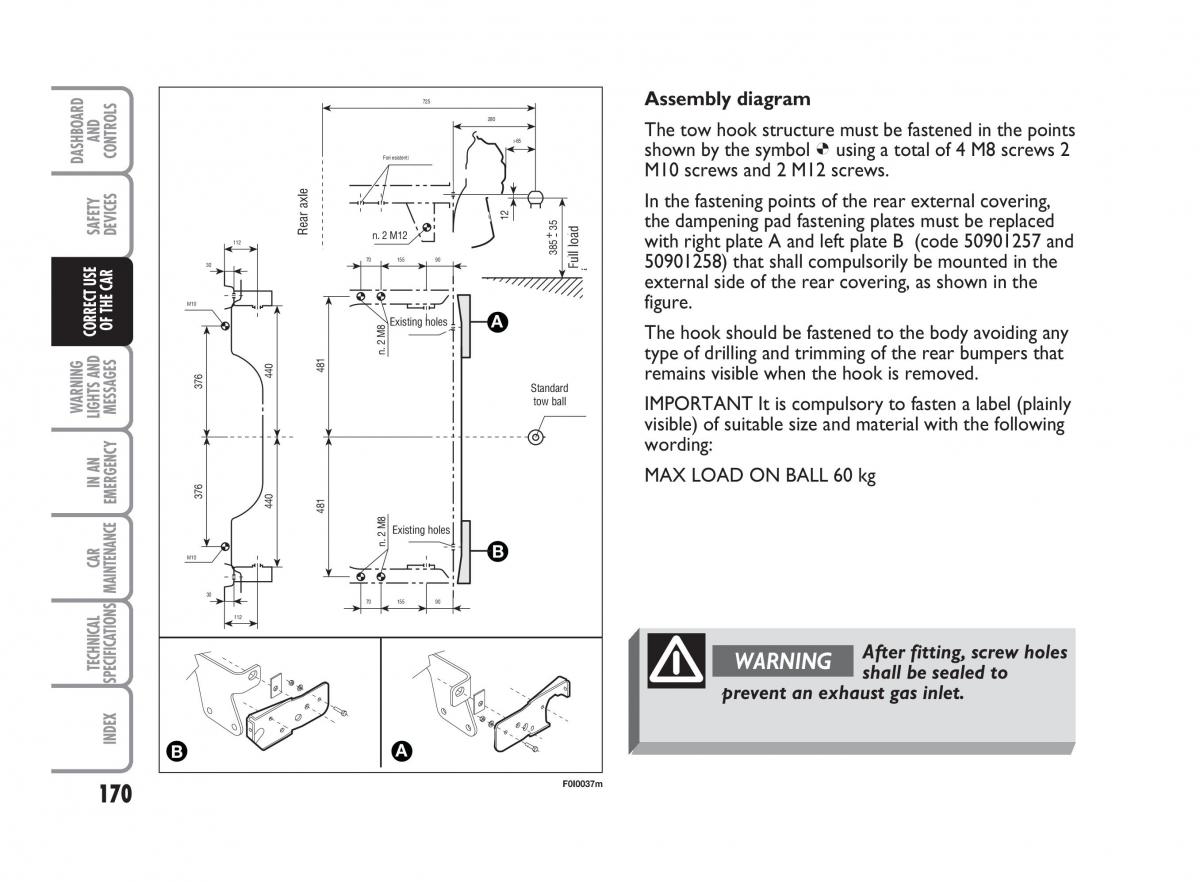

725 Assembly diagram
280 The tow hook structure must be fastened in the points
AND >65 shown by the symbol Ø using a total of 4 M8 screws 2
DASHBOARDCONTROLS Fori esistenti
M10 screws and 2 M12 screws.
Asse ruote posteriori In the fastening points of the rear external covering,
SAFETY 12 the dampening pad fastening plates must be replaced
DEVICES Rear axle n. 2 M12 + -
112 eicolo with right plate A and left plate B (code 50901257 and
385 35V
70 155 90
30 Full loada pieno carico50901258) that shall compulsorily be mounted in the
external side of the rear covering, as shown in the
M10 figure.
Existing holes A
CORRECT USEOF THE CAR Fori esistenti The hook should be fastened to the body avoiding any
n. 2 M8 type of drilling and trimming of the rear bumpers that
440 481 remains visible when the hook is removed.
ARNING 376 Standard
tow ball IMPORTANT It is compulsory to fasten a label (plainly
W LIGHTS ANDMESSAGES Sfera a norme
visible) of suitable size and material with the following
wording:
IN AN MAX LOAD ON BALL 60 kg
EMERGENCY 376
440 481
Existing holes
Fori esistenti
n. 2 M8 B
CAR M10
MAINTENANCE
30
70 155 90
112
TIONS
TECHNICAL WARNING After fitting, screw holes
SPECIFICA shall be sealed to
prevent an exhaust gas inlet.
INDEX B A
