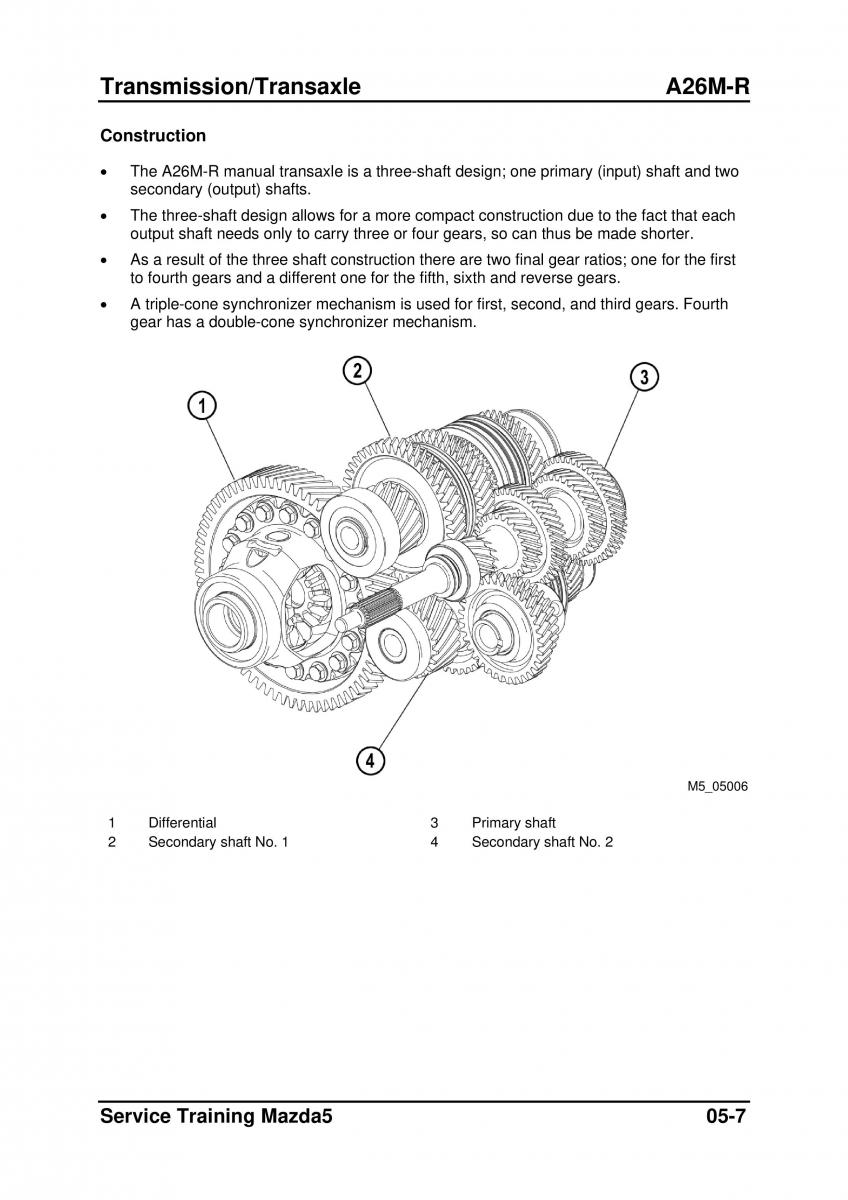

Transmission/Transaxle A26M-R Construction • The A26M-R manual transaxle is a three-shaft design; one primary (input) shaft and two secondary (output) shafts. • The three-shaft design allows for a more compact construction due to the fact that each output shaft needs only to carry three or four gears, so can thus be made shorter. • As a result of the three shaft construction there are two final gear ratios; one for the first to fourth gears and a different one for the fifth, sixth and reverse gears. • A triple-cone synchronizer mechanism is used for first, second, and third gears. Fourth gear has a double-cone synchronizer mechanism. M5_05006 1 Differential 3 Primary shaft 2 Secondary shaft No. 1 4 Secondary shaft No. 2 Service Training Mazda5 05-7
