text version of content this owner's manual page from owners manual to the vehicle Mazda 5, year of production 2005 - 2010:

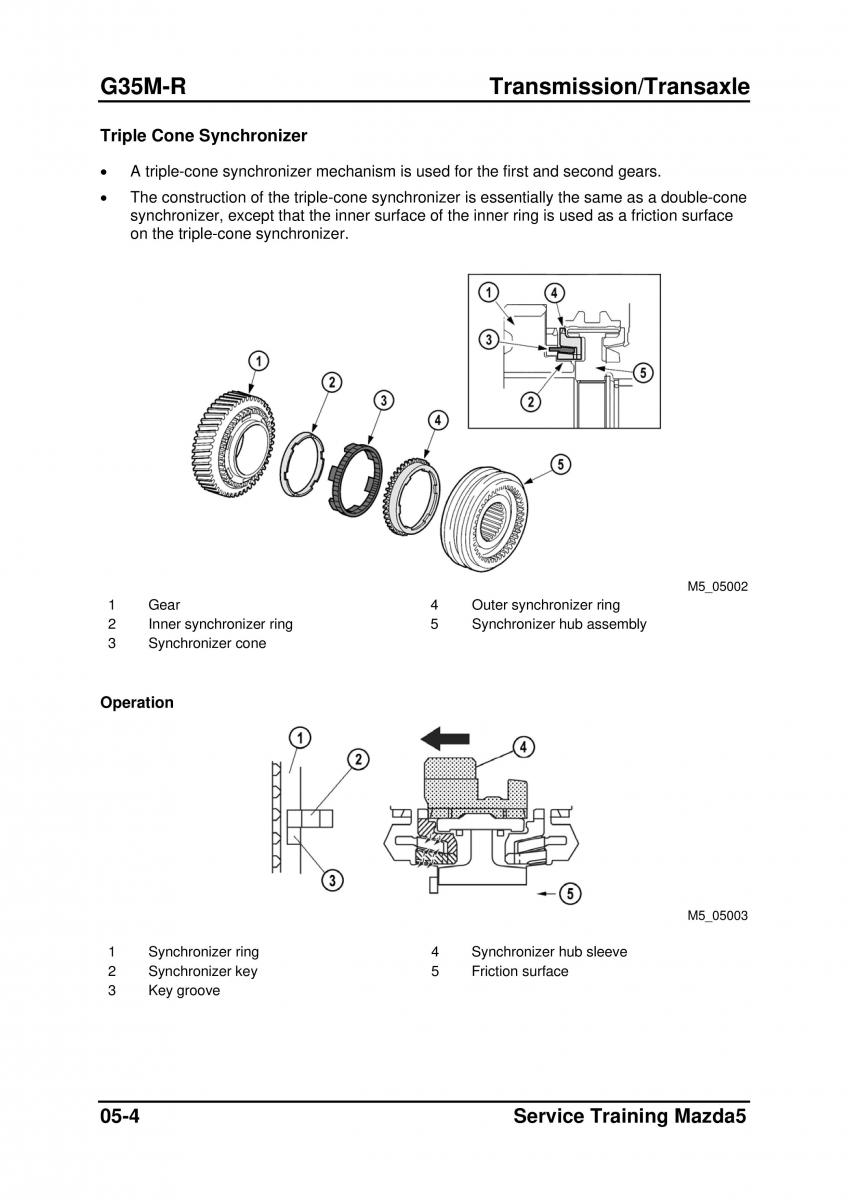

G35M-R Transmission/Transaxle Triple Cone Synchronizer • A triple-cone synchronizer mechanism is used for the first and second gears. • The construction of the triple-cone synchronizer is essentially the same as a double-cone synchronizer, except that the inner surface of the inner ring is used as a friction surface on the triple-cone synchronizer. M5_05002 1 Gear 4 Outer synchronizer ring 2 Inner synchronizer ring 5 Synchronizer hub assembly 3 Synchronizer cone Operation M5_05003 1 Synchronizer ring 4 Synchronizer hub sleeve 2 Synchronizer key 5 Friction surface 3 Key groove 05-4 Service Training Mazda5
