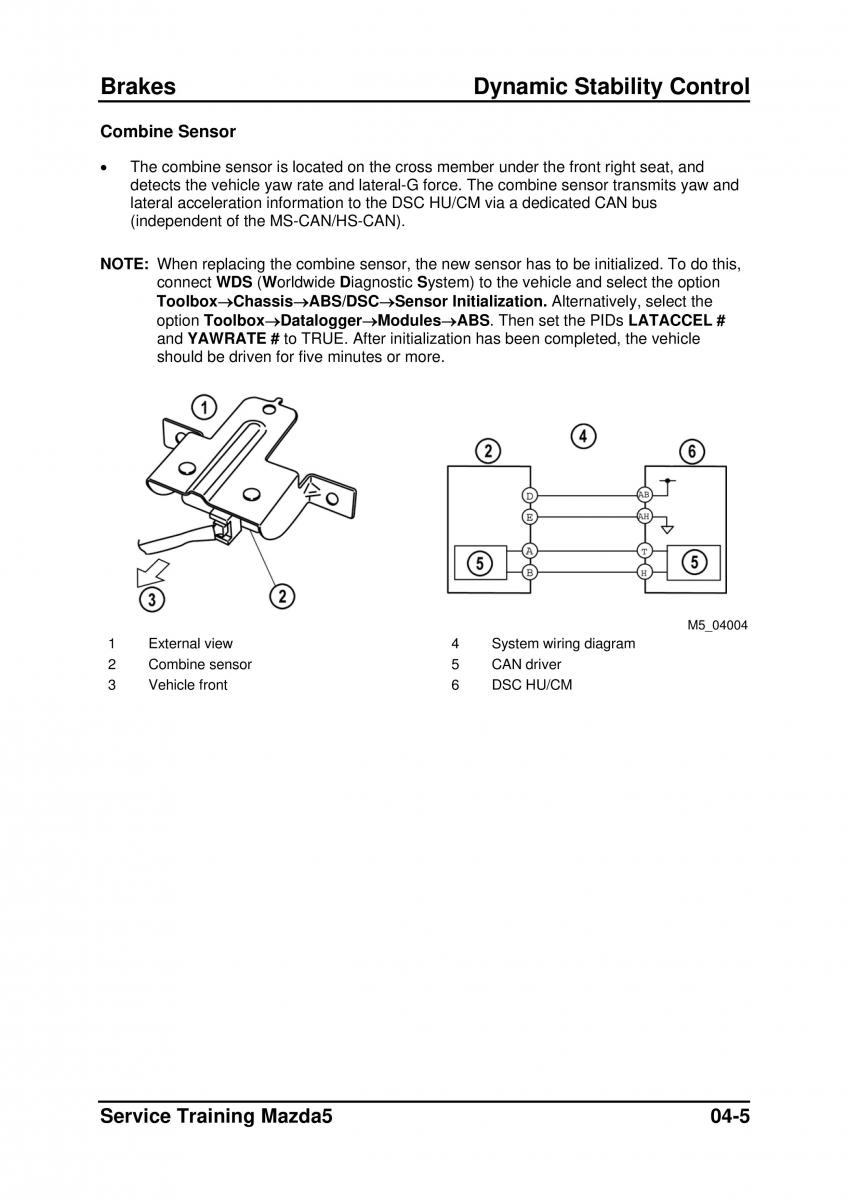

Brakes Dynamic Stability Control
Combine Sensor
• The combine sensor is located on the cross member under the front right seat, and
detects the vehicle yaw rate and lateral-G force. The combine sensor transmits yaw and
lateral acceleration information to the DSC HU/CM via a dedicated CAN bus
(independent of the MS-CAN/HS-CAN).
NOTE: When replacing the combine sensor, the new sensor has to be initialized. To do this,
connect WDS (Worldwide Diagnostic System) to the vehicle and select the option
Toolbox→Chassis→ABS/DSC→Sensor Initialization. Alternatively, select the
option Toolbox→Datalogger→Modules→ABS. Then set the PIDs LATACCEL #
and YAWRATE # to TRUE. After initialization has been completed, the vehicle
should be driven for five minutes or more.
M5_04004
1 External view 4 System wiring diagram
2 Combine sensor 5 CAN driver
3 Vehicle front 6 DSC HU/CM
Service Training Mazda5 04-5
