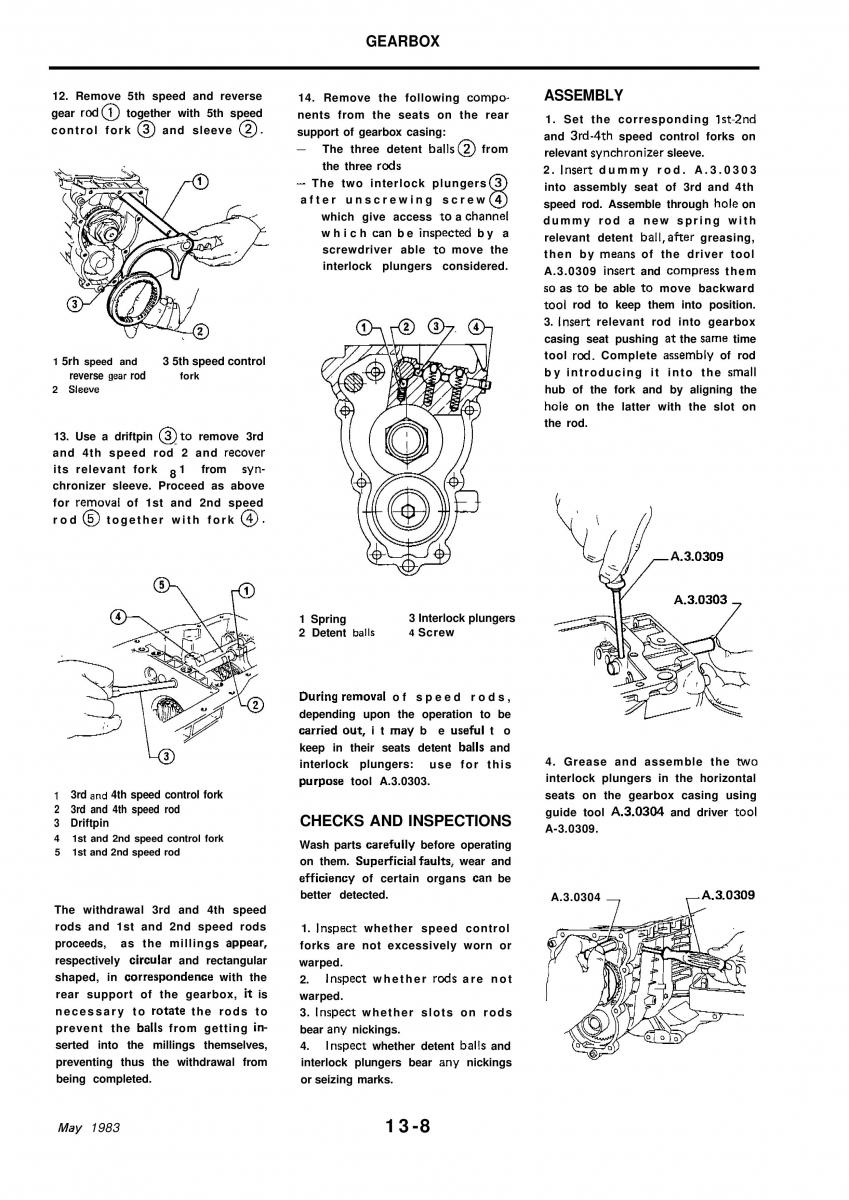

GEARBOX 12. Remove 5th speed and reverse ASSEMBLY 14. Remove the following compo- gear rod @ together with 5th speed nents from the seats on the rear control fork @ and sleeve 0. 1. Set the corresponding 1st.2nd support of gearbox casing: and 3rd-4th speed control forks on - The three detent halls @ from relevant synchronirer sleeve. the three rods 2. Insert dummy rod. A.3.0303 - The two interlock plungers 3 into assembly seat of 3rd and 4th after unscrewing screw 4 8 speed rod. Assemble through hole on which give access to a channel dummy rod a new spring with which cari be inspected by a relevant detent hall, after greasing, screwdriver able to move the then by means of the driver tool interlock plungers considered. A.3.0309 insert: and compress them SO as to be able to move backward rool rod to keep them into position. 3. Insert relevant rod into gearbox casing seat pushing at the same time 1 5rh speed and 3 5th speed control tool rod. Complete assembly of rod reverse gear rodfork by introducing it into the small 2 Sleeve hub of the fork and by aligning the hole on the latter with the slot on the rod. 13. Use a driftpin @ to remove 3rd and 4th speed rod 2 and recover its relevant fork1 from syn- 8 chronizer sleeve. Proceed as above for removal of 1st and 2nd speed rod @ together with fork @. 1 Spring 3 Interlock plungers 2 Detent halls 4 Screw During removal of speed rods, depending upon the operation to be carried out, it may be useful to keep in their seats detent halls and interlock plungers: 4. Grease and assemble the two use for this purpose tool A.3.0303.interlock plungers in the horizontal 1 3rd and 4th speed control fork seats on the gearbox casing using 2 3rd and 4th speed rod CHECKS AND INSPECTIONS guide tool A.3.0304 and driver tool 3 Driftpin A-3.0309. 4 1st and 2nd speed control fork 5 1st and 2nd speed rod Wash parts carefully before operating on them. Superficial faults, wear and efficiency of certain organs cari be better detected. A.3.0304 - ,A.3.0309 The withdrawal 3rd and 4th speed rods and 1st and 2nd speed rods 1. Inspect whether speed control proceeds, as the millings appear, forks are not excessively worn or respectively circular and rectangular warped. shaped, in correspondence with the Inspect whether rods are not 2. rear support of the gearbox, it is warped. necessary to rotate the rods to 3. Inspect whether slots on rods prevent the halls from getting in- bear any nickings. serted into the millings themselves, 4. I nspect whether detent halls and preventing thus the withdrawal from interlock plungers bear any nickings being completed. or seizing marks. May 1983 13-8
