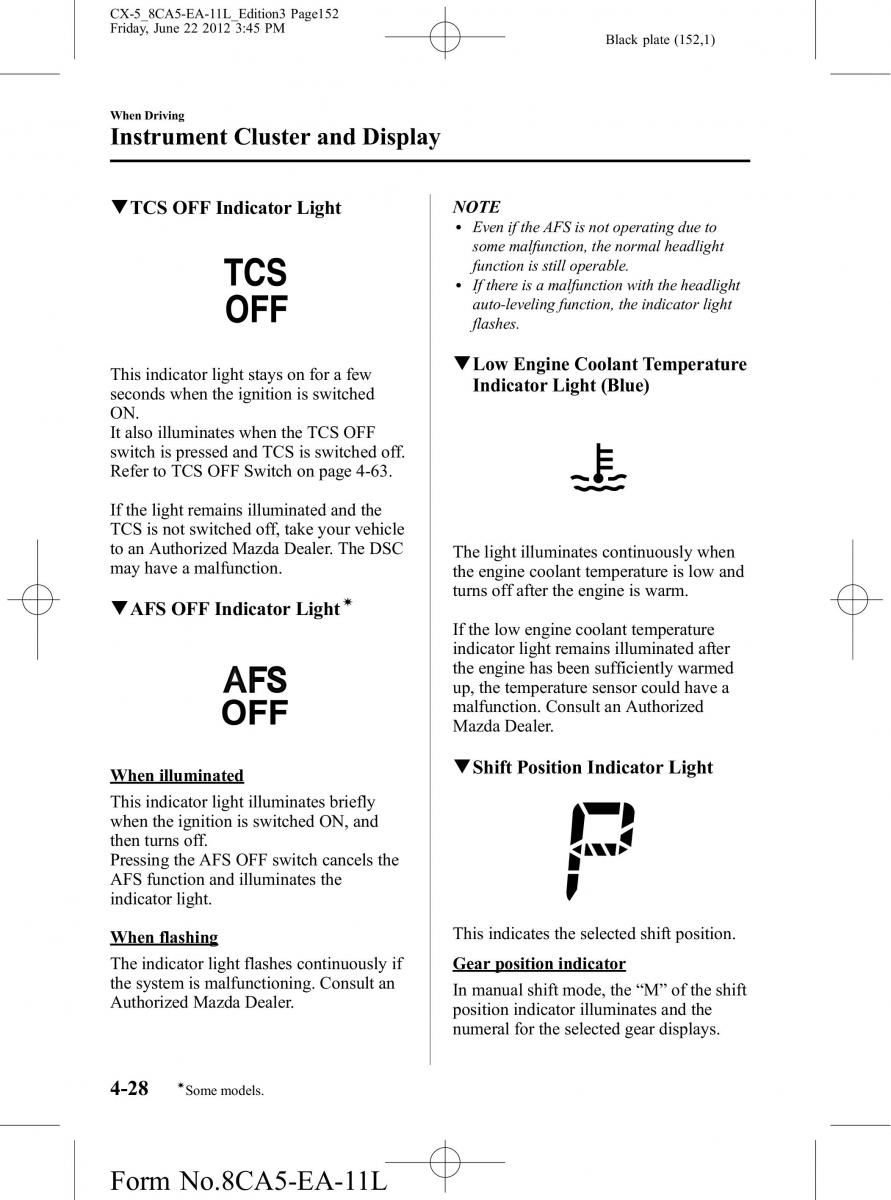

CX-5_8CA5-EA-11L_Edition3 Page152
Friday, June 22 2012 3:45 PM
Black plate (152,1)
WhenDriving
Instrument Cluster and Display
qTCSOFFIndicatorLight NOTE
l Evenif the AFS is not operating due to
somemalfunction, the normal headlight
function is still operable.
l If there is a malfunction with the headlight
auto-leveling function, the indicator light
flashes.
This indicator light stays on for a few qLowEngineCoolantTemperature
seconds when the ignition is switched Indicator Light (Blue)
ON.
It also illuminates when the TCS OFF
switch is pressed and TCS is switched off.
Refer to TCS OFF Switch on page 4-63.
If the light remains illuminated and the
TCSisnotswitched off, take your vehicle
to an Authorized Mazda Dealer. The DSC Thelight illuminates continuously when
mayhaveamalfunction. the engine coolant temperature is low and
turns off after the engine is warm.
qAFSOFFIndicatorLightí
If the low engine coolant temperature
indicator light remains illuminated after
the engine has been sufficiently warmed
up, the temperature sensor could have a
malfunction. Consult an Authorized
MazdaDealer.
Whenilluminated qShiftPosition Indicator Light
This indicator light illuminates briefly
whentheignition is switched ON, and
then turns off.
Pressing the AFS OFF switch cancels the
AFSfunction and illuminates the
indicator light.
Whenflashing This indicates the selected shift position.
Theindicator light flashes continuously if Gearposition indicator
the system is malfunctioning. Consult an In manual shift mode, the “M” of the shift
Authorized Mazda Dealer. position indicator illuminates and the
numeral for the selected gear displays.
í
4-28 Somemodels.
Form No.8CA5-EA-11L
