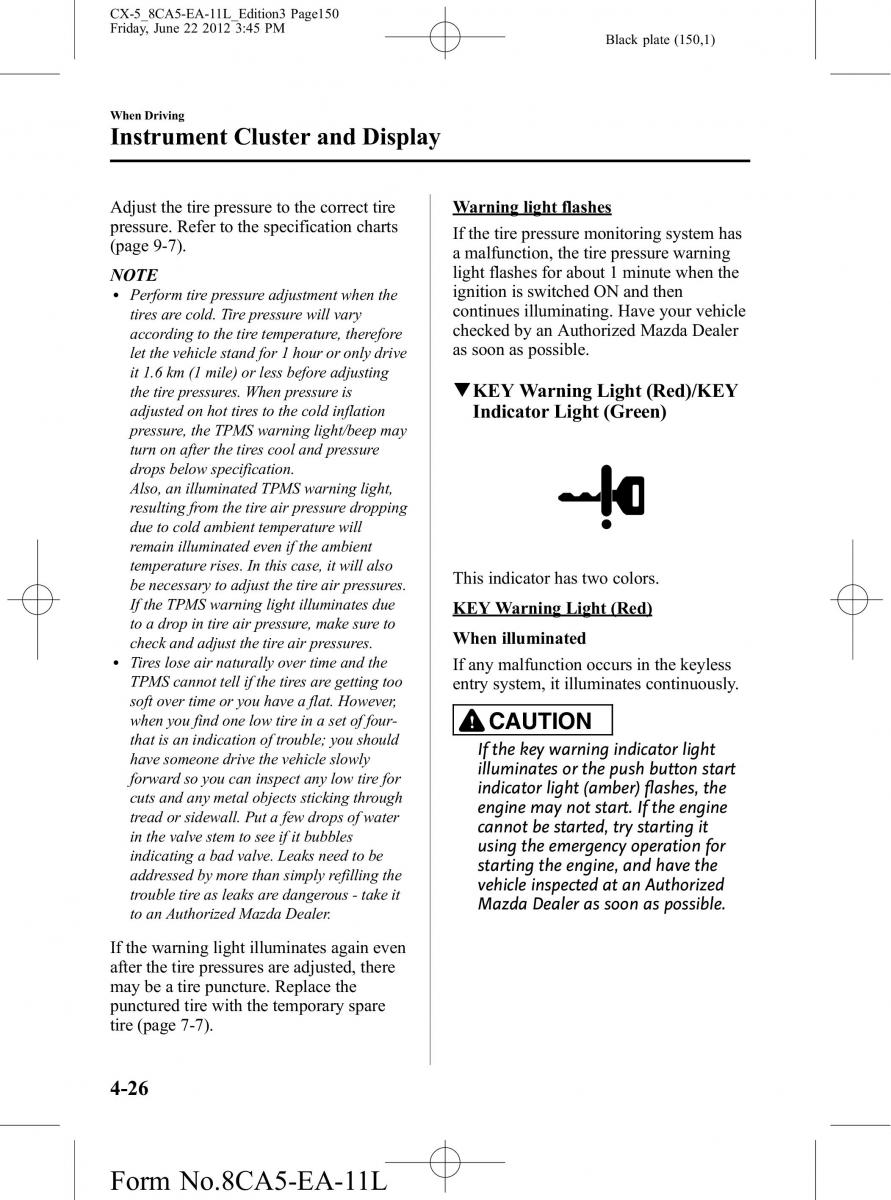

text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2012 - 2017:

CX-5_8CA5-EA-11L_Edition3 Page150 Friday, June 22 2012 3:45 PM Black plate (150,1) WhenDriving Instrument Cluster and Display Adjust the tire pressure to the correct tire Warninglight flashes pressure. Refer to the specification charts If the tire pressure monitoring system has (page 9-7). a malfunction, the tire pressure warning NOTE light flashes for about 1 minute when the l Perform tire pressure adjustment when the ignition is switched ON and then tires are cold. Tire pressure will vary continues illuminating. Have your vehicle according to the tire temperature, therefore checked by an Authorized Mazda Dealer let the vehicle stand for 1 hour or only drive as soon as possible. it 1.6 km (1 mile) or less before adjusting the tire pressures. When pressure is qKEYWarningLight(Red)/KEY adjusted on hot tires to the cold inflation Indicator Light (Green) pressure, the TPMS warning light/beep may turn on after the tires cool and pressure drops below specification. Also, an illuminated TPMS warning light, resulting from the tire air pressure dropping due to cold ambient temperature will remain illuminated even if the ambient temperature rises. In this case, it will also This indicator has two colors. be necessary to adjust the tire air pressures. If the TPMS warning light illuminates due KEYWarningLight(Red) to a drop in tire air pressure, make sure to check and adjust the tire air pressures. Whenilluminated l Tires lose air naturally over time and the If any malfunction occurs in the keyless TPMScannottell if the tires are getting too entry system, it illuminates continuously. soft over time or you have a flat. However, whenyoufindonelowtirein a set of four- CAUTION that is an indication of trouble; you should If the key warning indicator light have someone drive the vehicle slowly illuminates or the push button start forward so you can inspect any low tire for indicator light (amber) flashes, the cuts and any metal objects sticking through engine may not start. If the engine tread or sidewall. Put a few drops of water cannot be started, try starting it in the valve stem to see if it bubbles using the emergency operation for indicating a bad valve. Leaks need to be starting the engine, and have the addressed by more than simply refilling the vehicle inspected at an Authorized trouble tire as leaks are dangerous - take it MazdaDealerassoonaspossible. to an Authorized Mazda Dealer. If the warning light illuminates again even after the tire pressures are adjusted, there maybeatirepuncture. Replace the punctured tire with the temporary spare tire (page 7-7). 4-26 Form No.8CA5-EA-11L
