text version of content this owner's manual page from owners manual to the vehicle Mazda CX-5, year of production 2012 - 2017:

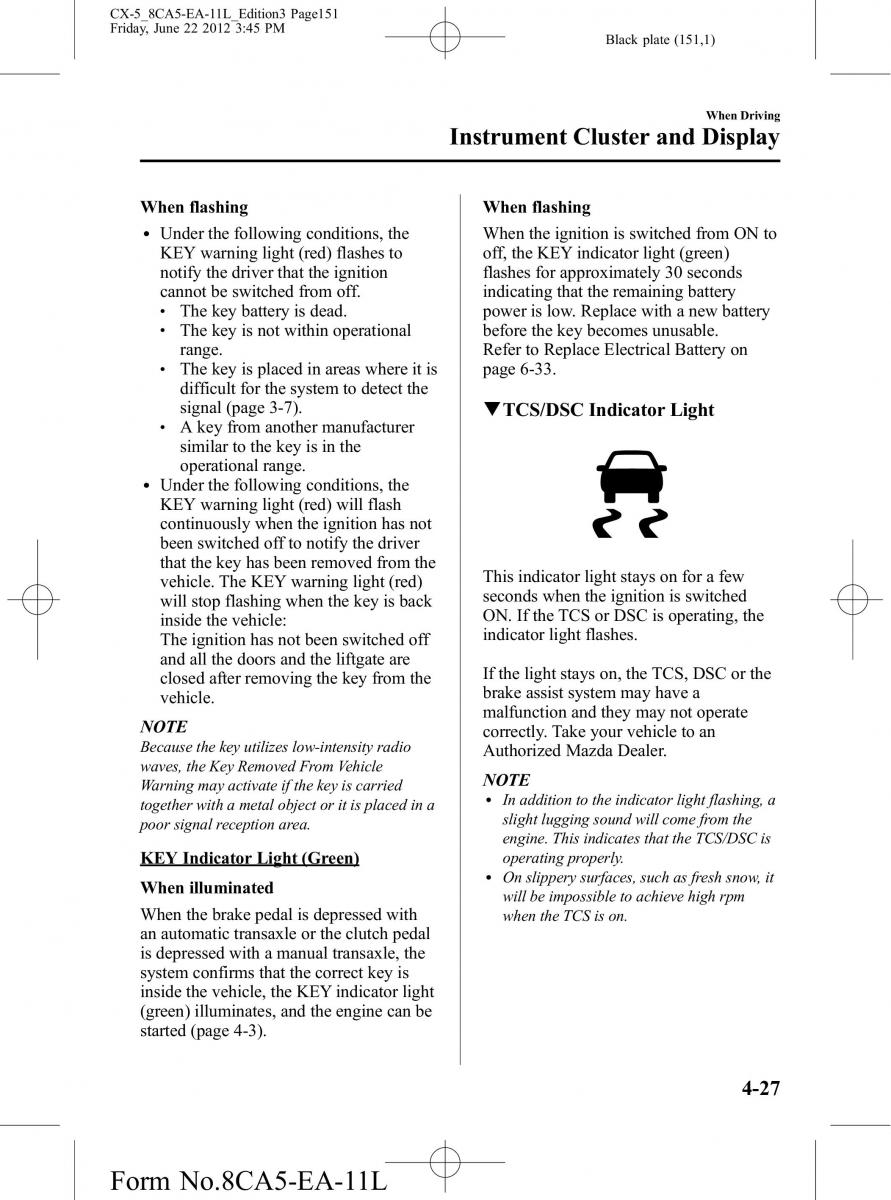

CX-5_8CA5-EA-11L_Edition3 Page151 Friday, June 22 2012 3:45 PM Black plate (151,1) WhenDriving Instrument Cluster and Display Whenflashing Whenflashing l Under the following conditions, the Whentheignition is switched from ON to KEYwarninglight (red) flashes to off, the KEYindicator light (green) notify the driver that the ignition flashes for approximately 30 seconds cannot be switched from off. indicating that the remaining battery l Thekeybattery is dead. poweris low. Replace with a new battery l Thekeyisnotwithin operational before the key becomes unusable. range. Refer to Replace Electrical Battery on l Thekeyisplaced in areas where it is page 6-33. difficult for the system to detect the signal (page 3-7). qTCS/DSCIndicatorLight l Akeyfromanothermanufacturer similar to the key is in the operational range. l Under the following conditions, the KEYwarninglight (red) will flash continuously when the ignition has not been switched off to notify the driver that the key has been removed from the This indicator light stays on for a few vehicle. The KEY warning light (red) will stop flashing when the key is back seconds when the ignition is switched inside the vehicle: ON.IftheTCSorDSCisoperating,the Theignition has not been switched off indicator light flashes. and all the doors and the liftgate are closed after removing the key from the If the light stays on, the TCS, DSC or the vehicle. brake assist system may have a malfunction and they may not operate NOTE correctly. Take your vehicle to an Because the key utilizes low-intensity radio Authorized Mazda Dealer. waves, the Key Removed From Vehicle NOTE Warning may activate if the key is carried together with a metal object or it is placed in a l In addition to the indicator light flashing, a poor signal reception area. slight lugging sound will come from the engine. This indicates that the TCS/DSC is KEYIndicatorLight(Green) operating properly. Whenilluminated l Onslippery surfaces, such as fresh snow, it will be impossible to achieve high rpm Whenthebrakepedalis depressed with whentheTCSison. an automatic transaxle or the clutch pedal is depressed with a manual transaxle, the system confirms that the correct key is inside the vehicle, the KEYindicator light (green) illuminates, and the engine can be started (page 4-3). 4-27 Form No.8CA5-EA-11L
