text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

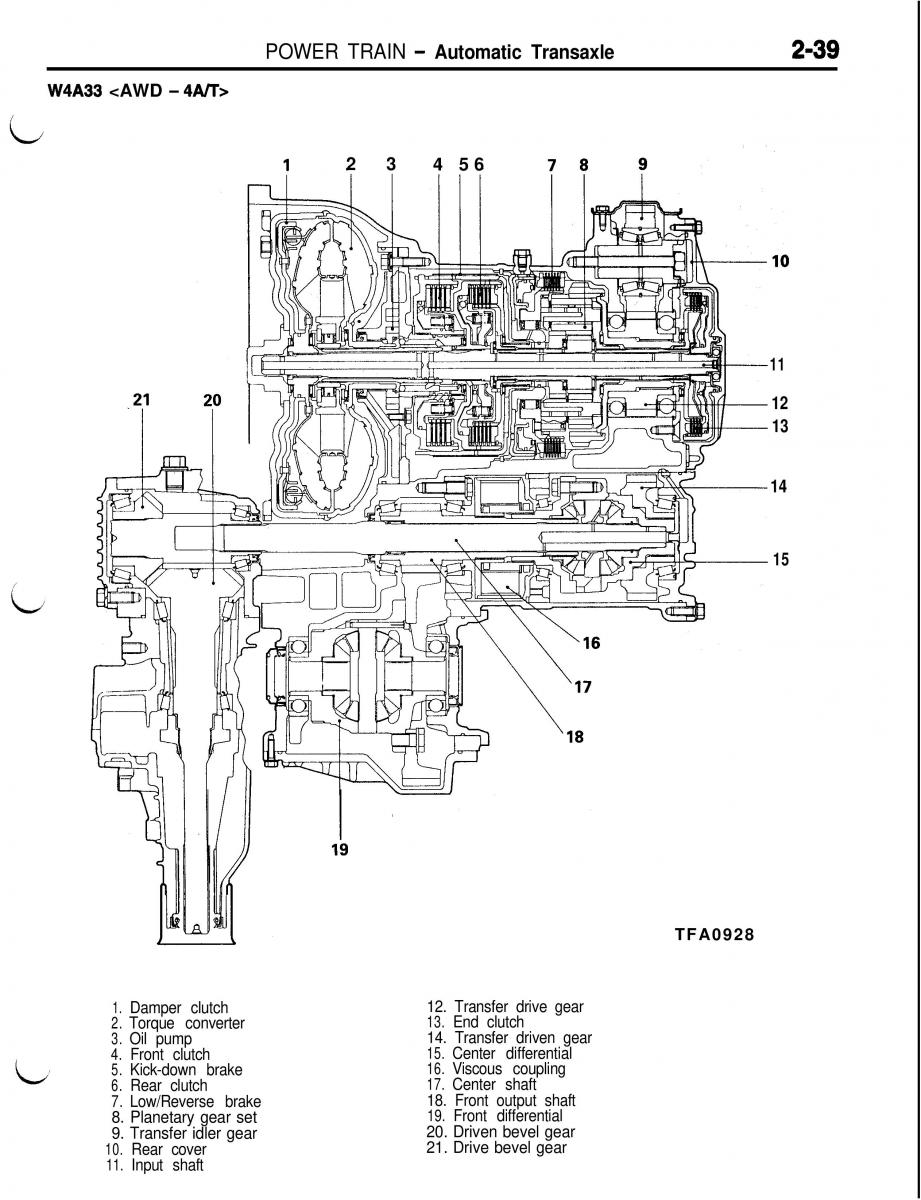

POWER TRAIN- Automatic Transaxle W4A33 i 2 34 56 11 12 13 14 15 TFA0928 1. Damper clutch 12. Transfer drive gear 2. Torque converter 13. End clutch 3. Oil pump 14. Transfer driven gear 4. Front clutch 15. Center differential L’ 5. Kick-down brake 16. Viscous coupling 6. Rear clutch 17. Center shaft 7. Low/Reverse brake 18. Front output shaft 8. Planetary gear set 19. Front differential 9. Transfer idler gear 20. Driven bevel gear 10. Rear cover 21. Drive bevel gear 11. Input shaft
