text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

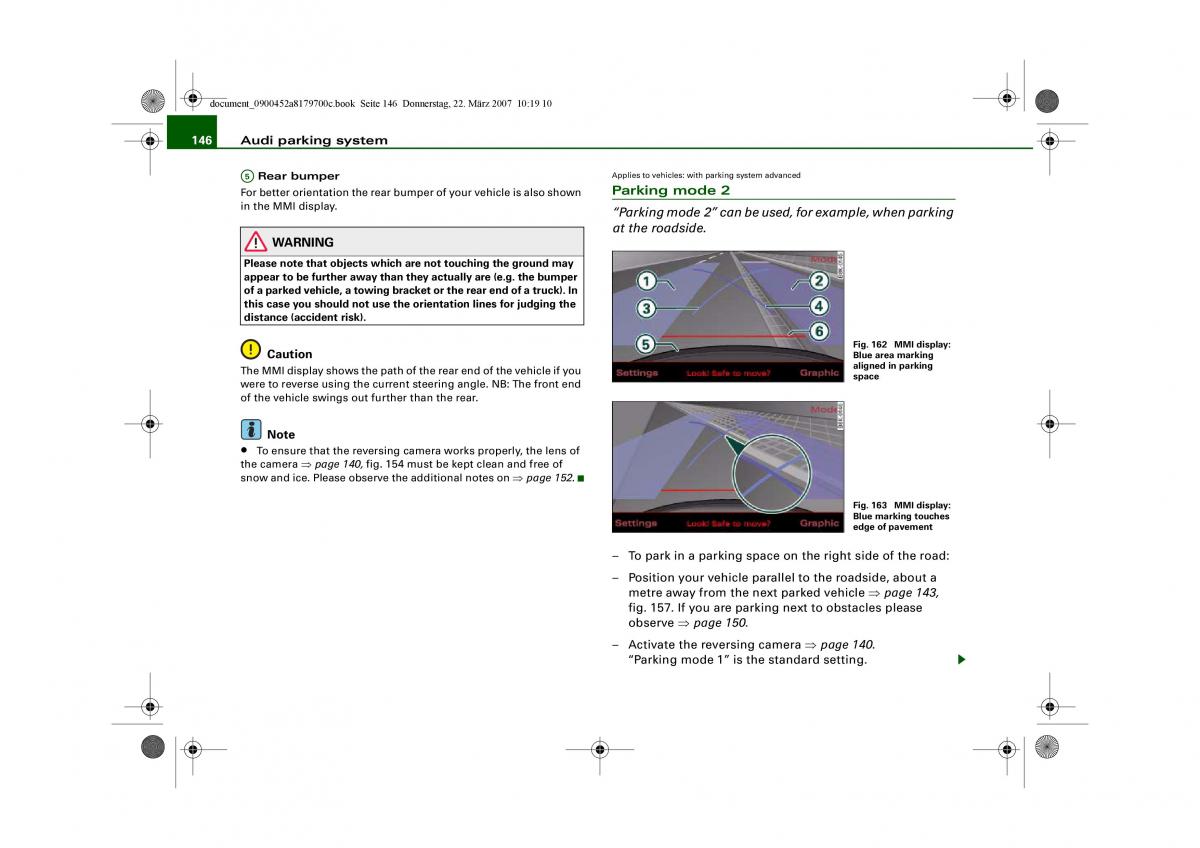

document_0900452a8179700c.book Seite 146 Donnerstag, 22. März 2007 10:19 10 146 Audi parking system 5 Applies to vehicles: with parking system advanced A Rear bumper For better orientation the rear bump er of your vehicle is also shown Parking mode 2 in the MMI display. “Parking mode 2” can be used, for example, when parking at the roadside. WARNING Please note that objects which are not touching the ground may appear to be further away than th ey actually are (e.g. the bumper of a parked vehicle, a towing bracke t or the rear end of a truck). In this case you should not use the orientation lines for judging the distance (accident risk). Fig. 162 MMI display: Caution Blue area marking The MMI display shows the path of the rear end of the vehicle if you aligned in parking were to reverse using the current steering angle. NB: The front end space of the vehicle swings out further than the rear. Note • To ensure that the reversing camera works properly, the lens of the camera ⇒page140, fig. 154 must be kept clean and free of snow and ice. Please observe the additional notes on ⇒ page 152. Fig. 163 MMI display: Blue marking touches edge of pavement – To park in a parking space on the right side of the road: – Position your vehicle parallel to the roadside, about a metre away from the next parked vehicle ⇒ page 143, fig. 157. If you are parking next to obstacles please observe ⇒ page 150. – Activate the reversing camera ⇒ page 140. “Parking mode 1” is the standard setting.
