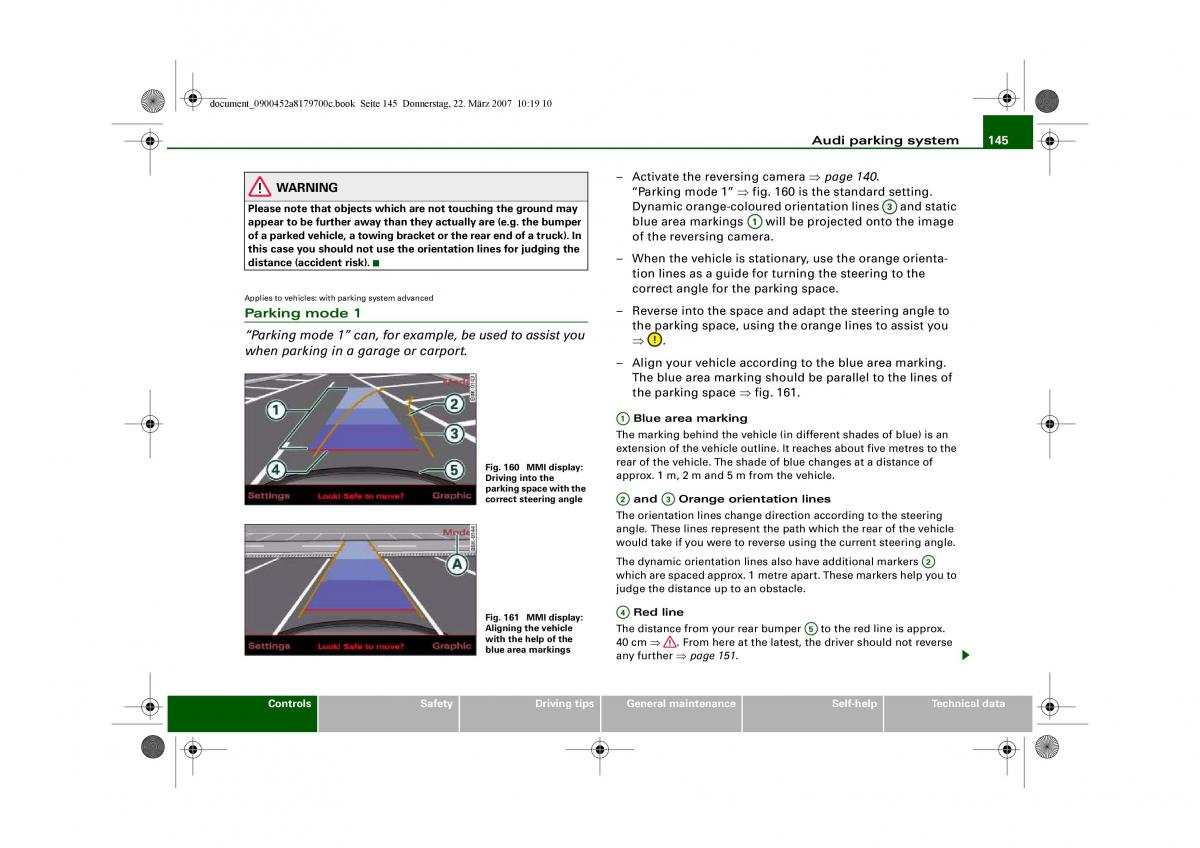

document_0900452a8179700c.book Seite 145 Donnerstag, 22. März 2007 10:19 10 Audi parking system 145 WARNING – Activate the reversing camera⇒ page 140. “Parking mode 1” ⇒ fig. 160 is the standard setting. Dynamic orange-coloured orientation lines 3 and static Please note that objects which are not touching the ground may A appear to be further away than th ey actually are (e.g. the bumper blue area markings 1 will be projected onto the image A of a parked vehicle, a towing bracke t or the rear end of a truck). In of the reversing camera. this case you should not use the orientation lines for judging the – When the vehicle is stationary, use the orange orienta- distance (accident risk). tion lines as a guide for turning the steering to the correct angle for the parking space. Applies to vehicles: with parking system advanced Parking mode 1 – Reverse into the space and adapt the steering angle to “Parking mode 1” can, for exam ple, be used to assist you the parking space, using the orange lines to assist you when parking in a garage or carport. ⇒ . – Align your vehicle according to the blue area marking. The blue area marking should be parallel to the lines of the parking space ⇒ fig. 161. 1 Blue area marking A The marking behind the vehicle (in different shades of blue) is an extension of the vehicle outline. It reaches about five metres to the Fig. 160 MMI display: rear of the vehicle. The shade of blue changes at a distance of Driving into the approx. 1m, 2m and 5m from the vehicle. parking space with the correct steering angle 2 and 3 Orange orientation lines A A The orientation lines change direction according to the steering angle. These lines represent the path which the rear of the vehicle would take if you were to reverse using the current steering angle. The dynamic orientation lines also have additional markers 2 A which are spaced approx. 1 metre apart. These markers help you to judge the distance up to an obstacle. 4 Red line Fig. 161 MMI display: A Aligning the vehicle 5 The distance from your rear bumper A to the red line is approx. with the help of the 40 cm ⇒ . From here at the latest, the driver should not reverse blue area markings any further ⇒ page 151. Controls Safety Driving tips General maintenance Self-help Technical data
