owners manual Audi A5

owners manual Audi A5 - year of production: 2007 - Audi A5 owners manual EN

Document: pdf (12.72 MB) 313 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Audi A5, year of production 2007:

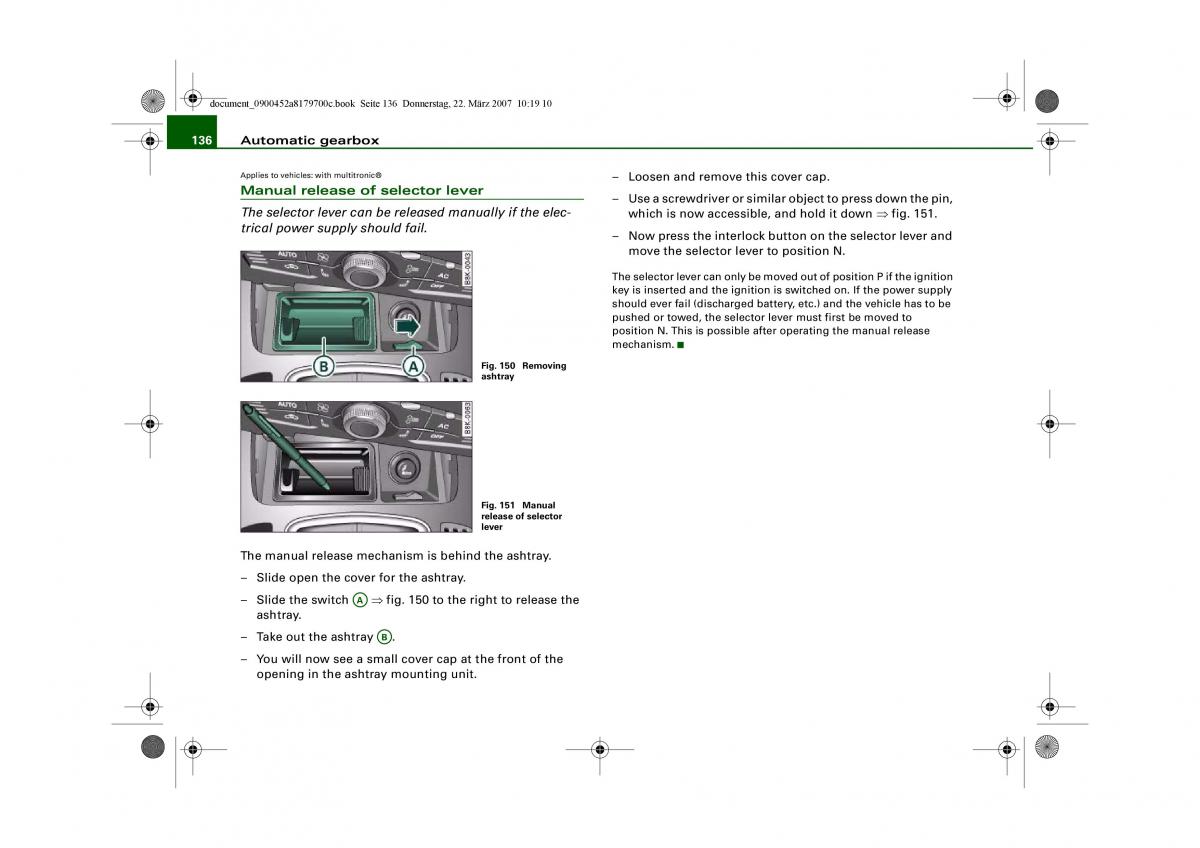

document_0900452a8179700c.book Seite 136 Donnerstag, 22. März 2007 10:19 10 136 Automatic gearbox Applies to vehicles: with multitronic® – Loosen and remove this cover cap. Manual release of selector lever – Use a screwdriver or similar object to press down the pin, The selector lever can be released manually if the elec- which is now accessible, and hold it down ⇒ fig. 151. trical power supply should fail. – Now press the interlock button on the selector lever and move the selector lever to position N. The selector lever can only be moved out of position P if the ignition key is inserted and the ignition is switched on. If the power supply should ever fail (discharged battery, etc.) and the vehicle has to be pushed or towed, the selector lever must first be moved to position N. This is possible after operating the manual release mechanism. Fig. 150 Removing ashtray Fig. 151 Manual release of selector lever The manual release mechanism is behind the ashtray. – Slide open the cover for the ashtray. A –Slide the switch ⇒ fig. 150 to the right to release the A ashtray. – Take out the ashtray B . A – You will now see a small cover cap at the front of the opening in the ashtray mounting unit.
