owners manual Mitsubishi Outlander PHEV

all ratings: 0 average rating: 5

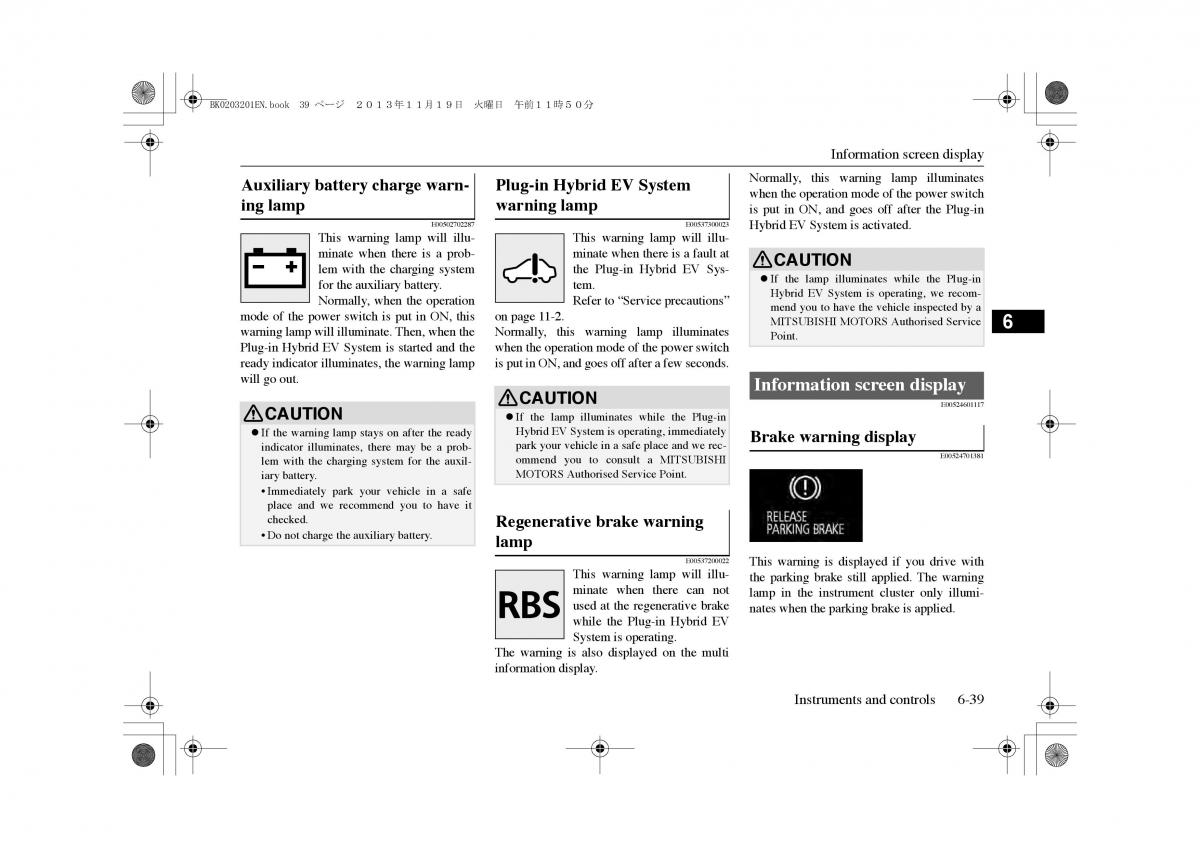

B０0203201E３.book 39 ページ 㸰㸮㸯㸱年㸯㸯月㸯９日　火曜日　午前㸯㸯時５㸮分 Information screen display Auxiliary battery charge warn- Plug-in Hybrid EV System Normally, this warning lamp illuminates ing lamp warning lamp when the operation mode of the power switch is put in ON, and goes off after the Plug-in E00502702287 E00537300023Hybrid EV System is activated. This warning lamp will illu- This warning lamp will illu- minate when there is a prob- minate when there is a fault at CAUTION lem with the charging system the Plug-in Hybrid EV Sys- zIf the lamp illuminates while the Plug-in for the auxiliary battery. tem. Hybrid EV System is operating, we recom- Normally, when the operation Refer to “Service precautions” mend you to have the vehicle inspected by a mode of the power switch is put in ON, this on page 11-2. MITSUBISHI MOTORS Authorised Service 6 warning lamp will illuminate. Then, when the Normally, this warning lamp illuminates Point. Plug-in Hybrid EV System is started and the when the operation mode of the power switch ready indicator illuminates, the warning lamp is put in ON, and goes off after a few seconds. will go out. Information screen display CAUTION CAUTION E00524601117 zIf the lamp illuminates while the Plug-in zIf the warning lamp stays on after the ready Hybrid EV System is operating, immediately Brake warning display indicator illuminates, there may be a prob- park your vehicle in a safe place and we rec- lem with the charging system for the auxil- ommend you to consult a MITSUBISHI E00524701381 iary battery. MOTORS Authorised Service Point. •Immediately park your vehicle in a safe place and we recommend you to have it checked. Regenerative brake warning •Do not charge the auxiliary battery. lamp E00537200022This warning is displayed if you drive with This warning lamp will illu- the parking brake still applied. The warning minate when there can not lamp in the instrument cluster only illumi- used at the regenerative brake nates when the parking brake is applied. while the Plug-in Hybrid EV System is operating. The warning is also displayed on the multi information display. Instruments and controls 6-39
