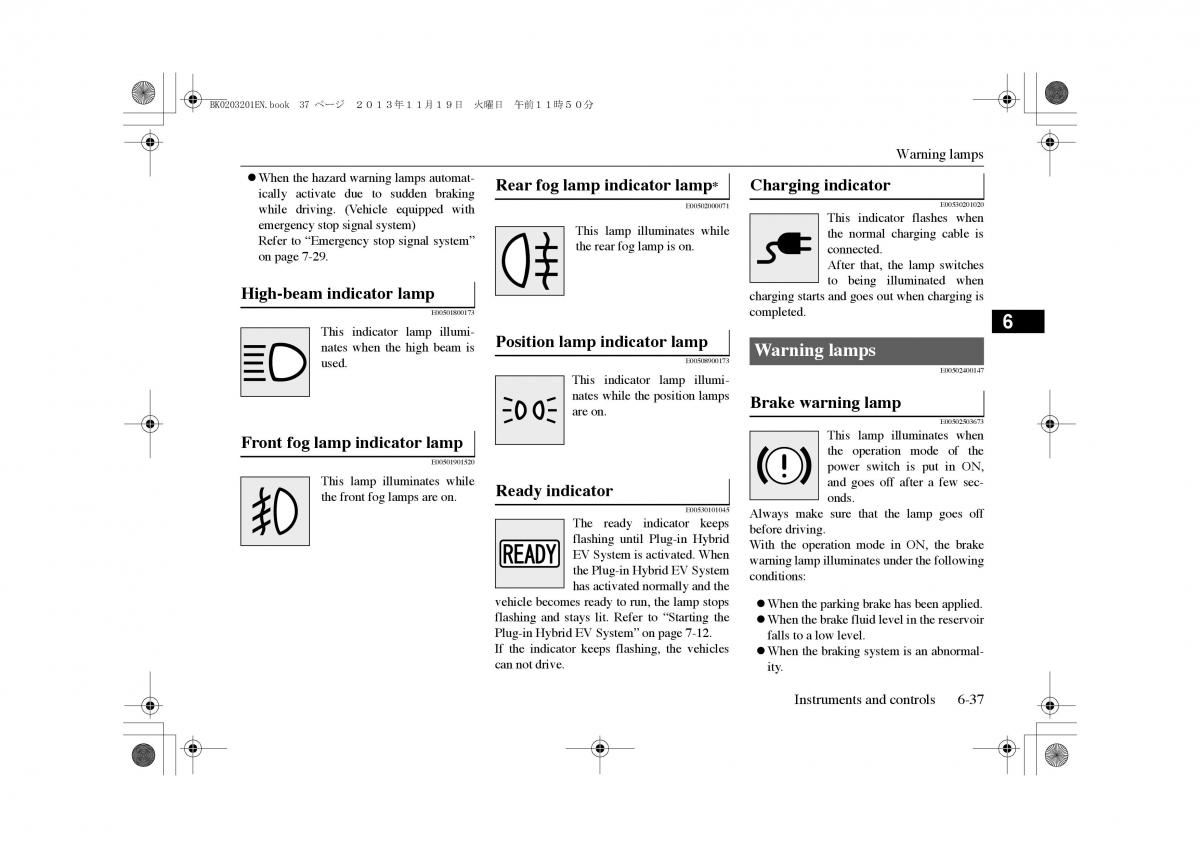

text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Outlander PHEV, year of production 2012:

B０0203201E３.book 37 ページ㸰㸮㸯㸱年㸯㸯月㸯９日　火曜日　午前㸯㸯時５㸮分 Warning lamps zWhen the hazard warning lamps automat- Rear fog lamp indicator lamp* Charging indicator ically activate due to sudden braking while driving. (Vehicle equipped with E00502000071 E00530201020 emergency stop signal system) This lamp illuminates while This indicator flashes when Refer to “Emergency stop signal system” the rear fog lamp is on. the normal charging cable is on page 7-29. connected. After that, the lamp switches High-beam indicator lamp to being illuminated when charging starts and goes out when charging is E00501800173 completed. 6 This indicator lamp illumi- Position lamp indicator lamp nates when the high beam is Warning lamps used. E00508900173 This indicator lamp illumi- E00502400147 nates while the position lamps Brake warning lamp are on. E00502503673 Front fog lamp indicator lamp This lamp illuminates when the operation mode of the E00501901520 power switch is put in ON, This lamp illuminates while Ready indicator and goes off after a few sec- the front fog lamps are on. onds. E00530101045Always make sure that the lamp goes off The ready indicator keeps before driving. flashing until Plug-in Hybrid With the operation mode in ON, the brake EV System is activated. When warning lamp illuminates under the following the Plug-in Hybrid EV System conditions: has activated normally and the vehicle becomes ready to run, the lamp stops zWhen the parking brake has been applied. flashing and stays lit. Refer to “Starting the zWhen the brake fluid level in the reservoir Plug-in Hybrid EV System” on page 7-12. falls to a low level. If the indicator keeps flashing, the vehicleszWhen the braking system is an abnormal- can not drive. ity. Instruments and controls 6-37
