owners manual VW Beetle

owners manual VW Beetle - year of production: 2011 - VW Beetle owners manual EN

Document: pdf (6.06 MB) 380 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Beetle, year of production 2011:

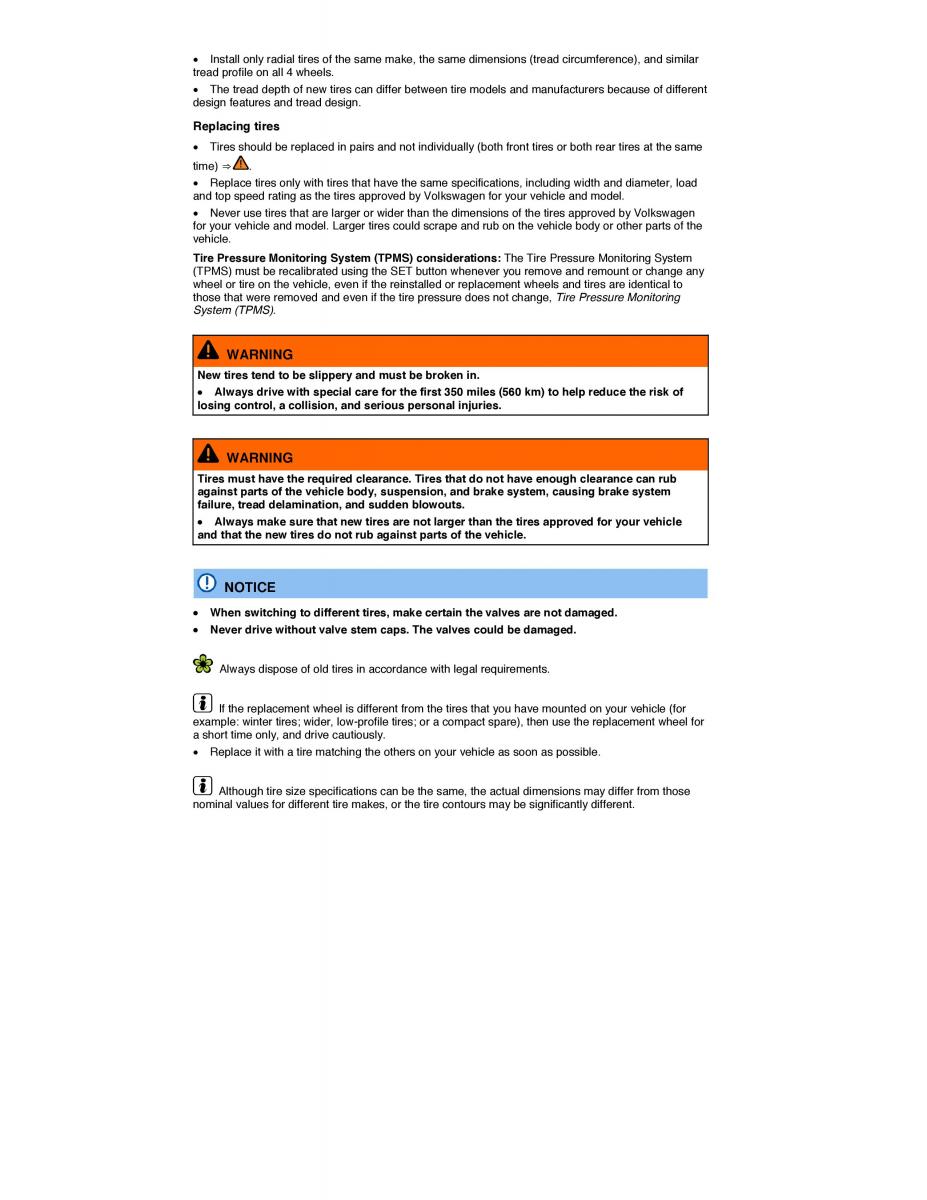

x Install only radial tires of the same make, the same dimensions (tread circumference), and similar tread profile on all 4 wheels. x The tread depth of new tires can differ between tire models and manufacturers because of different design features and tread design. Replacing tires x Tires should be replaced in pairs and not individually (both front tires or both rear tires at thesam e time) ⇒ . x Replace tires only with tires that have the same specifications, including width and diameter, loa d and top speed rating as the tires approved by Volkswagen for your vehicle and model. x Never use tires that are larger or wider than the dimensions of the tires approved by Volkswagen for your vehicle and model. Larger tires could scrape and rub on the vehicle body or other parts of the vehicle. Tire Pressure Monitoring System (TPMS) considerations: The Tire Pressure Monitoring System (TPMS) must be recalibrated using the SET button whenever you remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change, Tire Pressure Monitoring System (TPMS). WARNING New tires tend to be slippery and must be broken in. x Always drive with special care for the first 350 miles (560 km) to help reduce the risk of losing control, a collision, and serious personal injuries. WARNING Tires must have the required clearance. Tires that do not have enough clearance can rub against parts of the vehicle body, suspension, and brake system, causing brake system failure, tread delamination, and sudden blowouts. x Always make sure that new tires are not larger than the tires approved for your ehvicle and that the new tires do not rub against parts of the vehicle. NOTICE x When switching to different tires, make certain the valves are not damaged . x Never drive without valve stem caps. The valves could be damaged . Always dispose of old tires in accordance with legal requirements. If the replacement wheel is different from the tires that you have mounted on your vehicle (for example: winter tires; wider, low-profile tires; or a compact spare), then use the replacement wheel for a short time only, and drive cautiously. x Replace it with a tire matching the others on your vehicle as soon as possible. Although tire size specifications can be the same, the actual dimensions may differ from those nominal values for different tire makes, or the tire contours may be significantly different.
