owners manual VW Beetle

owners manual VW Beetle - year of production: 2011 - VW Beetle owners manual EN

Document: pdf (6.06 MB) 380 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Beetle, year of production 2011:

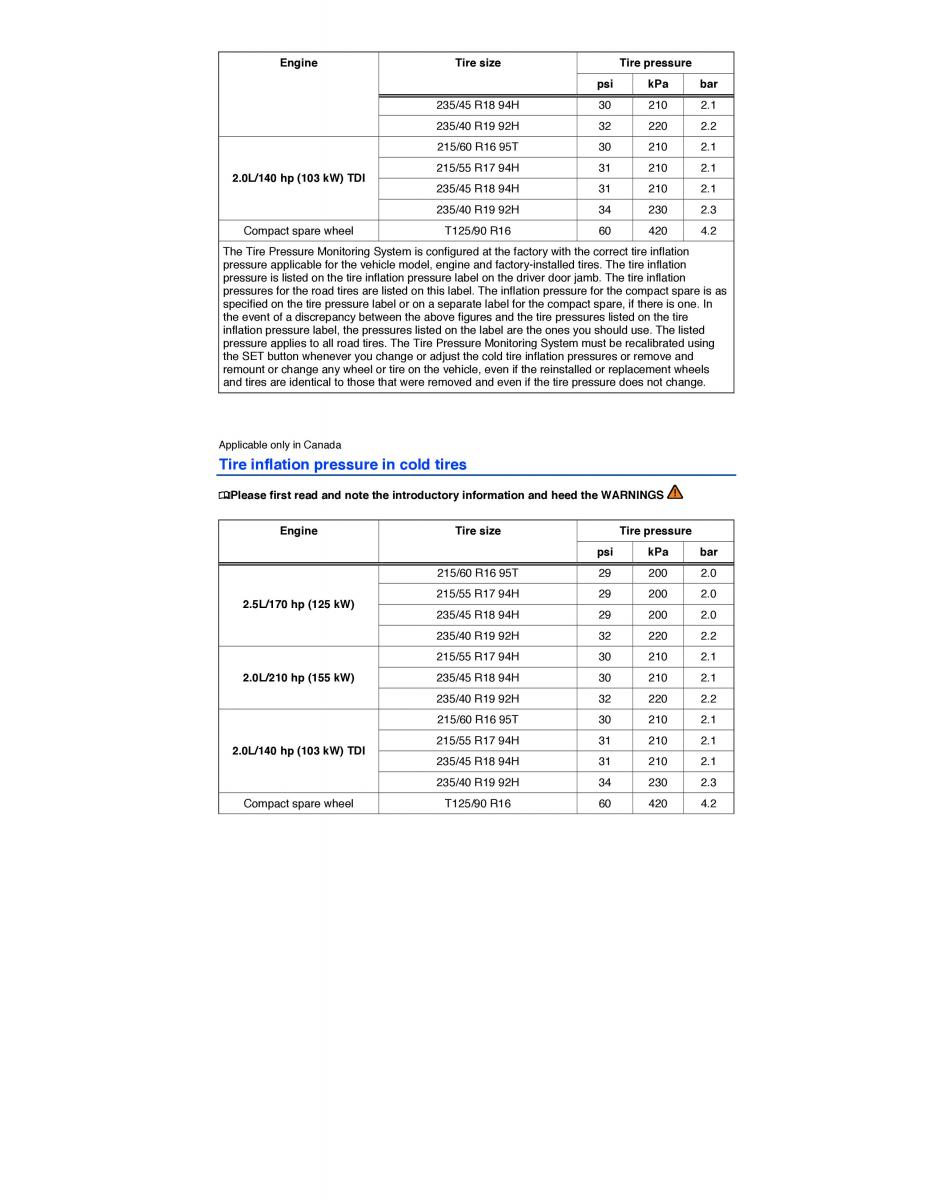

Engine Tire size Tire pressure psi kPa bar 235/45 R18 94H 30 210 2.1 235/40 R19 92H 32 220 2.2 215/60 R16 95T 30 210 2.1 2.0L/140 hp (103 kW) TDI 215/55 R17 94H 31 210 2.1 235/45 R18 94H 31 210 2.1 235/40 R19 92H 34 230 2.3 Compact spare wheel T125/90 R16 60 420 4.2 The Tire Pressure Monitoring System is configured at the factory with the correct tire inflation pressure applicable for the vehicle model, engine and factory-installed tires. The tire inflation pressure is listed on the tire inflation pressure label on the driver door jamb. The tire inflation pressures for the road tires are listed on this label. The inflation pressure for the compact spare is as specified on the tire pressure label or on a separate label for the compact spare, if there is one. In the event of a discrepancy between the above figures and the tire pressures listed on the tire inflation pressure label, the pressures listed on the label are the ones you should use. The listed pressure applies to all road tires. The Tire Pressure Monitoring System must be recalibrated using the SET button whenever you change or adjust the cold tire inflation pressures or remove and remount or change any wheel or tire on the vehicle, even if the reinstalled or replacement wheels and tires are identical to those that were removed and even if the tire pressure does not change. Applicable only in Canada Tire inflation pressure in cold tires ¤Please first read and note the introductory information and heed the WARNINGS Engine Tire size Tire pressure psi kPa bar 215/60 R16 95T 29 200 2.0 2.5L/170 hp (125 kW) 215/55 R17 94H 29 200 2.0 235/45 R18 94H 29 200 2.0 235/40 R19 92H 32 220 2.2 215/55 R17 94H 30 210 2.1 2.0L/210 hp (155 kW) 235/45 R18 94H 30 210 2.1 235/40 R19 92H 32 220 2.2 215/60 R16 95T 30 210 2.1 2.0L/140 hp (103 kW) TDI 215/55 R17 94H 31 210 2.1 235/45 R18 94H 31 210 2.1 235/40 R19 92H 34 230 2.3 Compact spare wheel T125/90 R16 60 420 4.2
