owners manual VW Beetle

owners manual VW Beetle - year of production: 2011 - VW Beetle owners manual EN

Document: pdf (6.06 MB) 380 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle VW Beetle, year of production 2011:

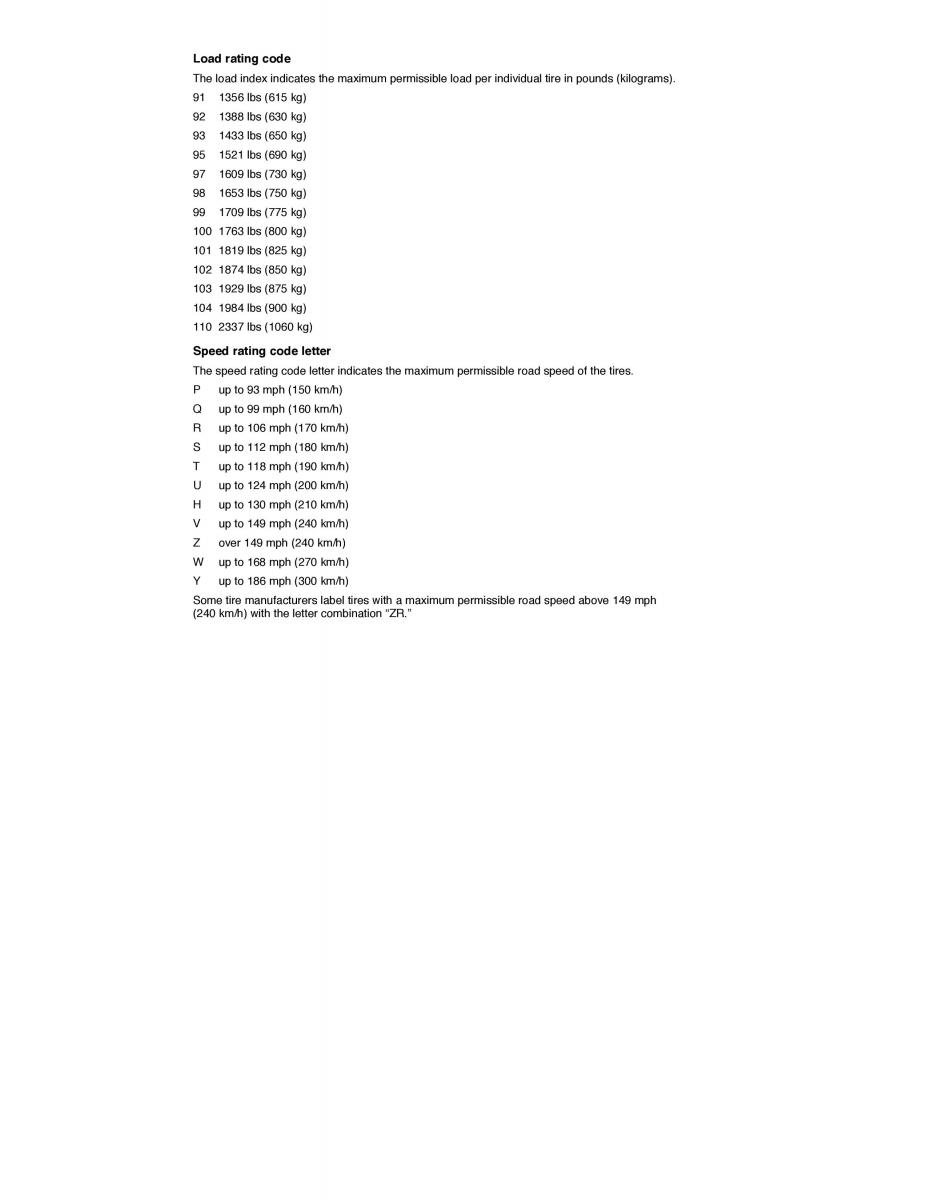

Load rating code The load index indicates the maximum permissible load per individual tire in pounds (kilograms). 91 1356 lbs (615 kg) 92 1388 lbs (630 kg) 93 1433 lbs (650 kg) 95 1521 lbs (690 kg) 97 1609 lbs (730 kg) 98 1653 lbs (750 kg) 99 1709 lbs (775 kg) 100 1763 lbs (800 kg) 101 1819 lbs (825 kg) 102 1874 lbs (850 kg) 103 1929 lbs (875 kg) 104 1984 lbs (900 kg) 110 2337 lbs (1060 kg) Speed rating code letter The speed rating code letter indicates the maximum permissible road speed of the tires. P up to 93 mph (150 km/h) Q up to 99 mph (160 km/h) R up to 106 mph (170 km/h) S up to 112 mph (180 km/h) T up to 118 mph (190 km/h) U up to 124 mph (200 km/h) H up to 130 mph (210 km/h) V up to 149 mph (240 km/h) Z over 149 mph (240 km/h) W up to 168 mph (270 km/h) Y up to 186 mph (300 km/h) Some tire manufacturers label tires with a maximum permissible road speed above 149 mph (240 km/h) with the letter combination “ZR.”
