text version of content this owner's manual page from owners manual to the vehicle Audi S5, year of production 2007:

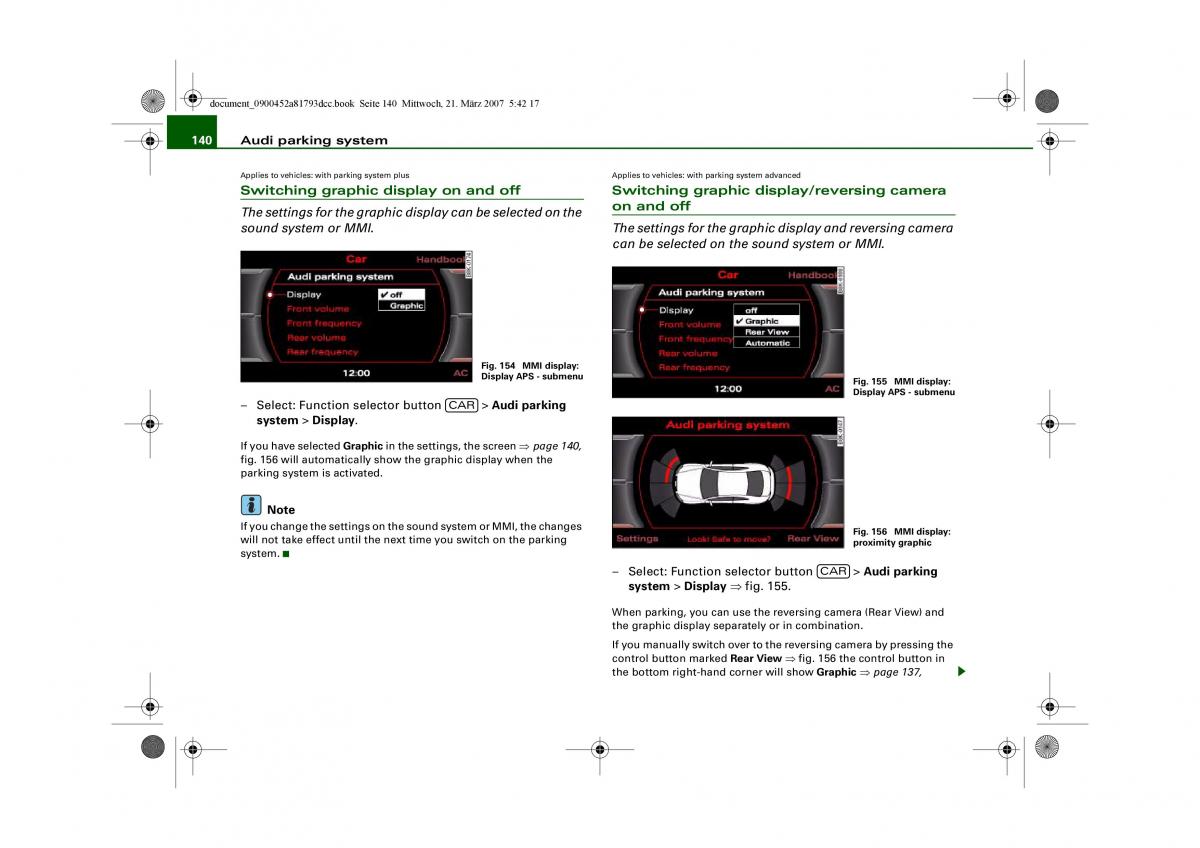

document_0900452a81793dcc.book Seite 140 Mittwoch, 21. März 2007 5:42 17 140 Audi parking system Applies to vehicles: with parking system plus Applies to vehicles: with parking system advanced Switching graphic display on and off Switching graphic display/reversing camera The settings for the graphic display can be selected on the on and off sound system or MMI. The settings for th e graphic display and reversing camera can be selected on the sound system or MMI. Fig. 154 MMI display: Display APS - submenu Fig. 155 MMI display: Display APS - submenu – Select: Function selector button CAR > Audi parking system > Display. If you have selected Graphic in the settings, the screen ⇒ page 140, fig. 156 will automatically show the graphic display when the parking system is activated. Note If you change the settings on the sound system or MMI, the changes Fig. 156 MMI display: will not take effect until the next time you switch on the parking proximity graphic system. – Select: Function selector button CAR > Audi parking system > Display ⇒ fig. 155. When parking, you can use the reversing camera (Rear View) and the graphic display separately or in combination. If you manually switch over to the reversing camera by pressing the control button marked Rear View ⇒ fig. 156 the control button in the bottom right-hand corner will show Graphic ⇒ page 137,
