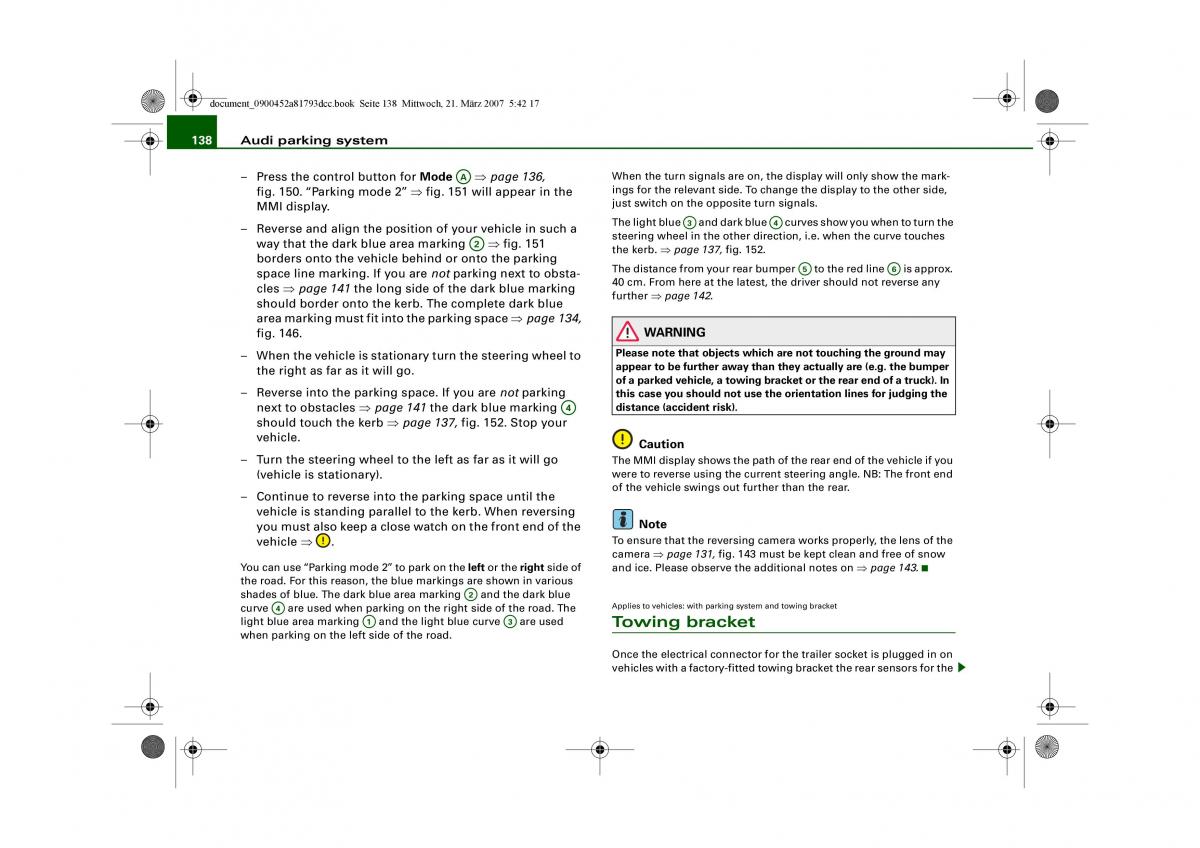

document_0900452a81793dcc.book Seite 138 Mittwoch, 21. März 2007 5:42 17 138 Audi parking system A When the turn signals are on, the display will only show the mark- – Press the control button for Mode ⇒ page 136, A fig. 150. “Parking mode 2” ⇒ fig. 151 will appear in the ings for the relevant side. To change the display to the other side, MMI display. just switch on the opposite turn signals. 3 4 The light blue and dark blue curves show you when to turn the – Reverse and align the position of your vehicle in such a A A way that the dark blue area marking 2 ⇒ fig. 151 steering wheel in the other direction, i.e. when the curve touches A the kerb. ⇒ page 137, fig. 152. borders onto the vehicle behind or onto the parking The distance from your rear bumper 5 to the red line 6 is approx. space line marking. If you arenot parking next to obsta- A A cles ⇒ page 141 the long side of the dark blue marking 40cm. From here at the latest, the driver should not reverse any should border onto the kerb. The complete dark blue further ⇒ page 142. area marking must fit into the parking space ⇒ page 134, fig. 146. WARNING – When the vehicle is stationary turn the steering wheel to Please note that objects which are not touching the ground may the right as far as it will go. appear to be further away than they actually are (e.g. the bumper of a parked vehicle, a towing bracke t or the rear end of a truck). In – Reverse into the parking space. If you are not parking this case you should not use the orientation lines for judging the next to obstacles ⇒ page 141 the dark blue marking 4 distance (accident risk). A should touch the kerb ⇒ page 137, fig. 152. Stop your vehicle. Caution – Turn the steering wheel to the left as far as it will go The MMI display shows the path of the rear end of the vehicle if you (vehicle is stationary). were to reverse using the current steering angle. NB: The front end – Continue to reverse into the parking space until the of the vehicle swings out further than the rear. vehicle is standing parallel to the kerb. When reversing you must also keep a close watch on the front end of the Note vehicle ⇒ . To ensure that the reversing camera works properly, the lens of the camera ⇒page131, fig. 143 must be kept clean and free of snow You can use “Parking mode 2” to park on the left or the right side of and ice. Please observe the additional notes on ⇒ page 143. the road. For this reason, the blue markings are shown in various 2 shades of blue. The dark blue area marking A and the dark blue curve 4 are used when parking on the right side of the road. The Applies to vehicles: with parking system and towing bracket A light blue area marking 1 and the light blue curve 3 are used A A Towing bracket when parking on the left side of the road. Once the electrical connector for the trailer socket is plugged in on vehicles with a factory-fitted towi ng bracket the rear sensors for the
