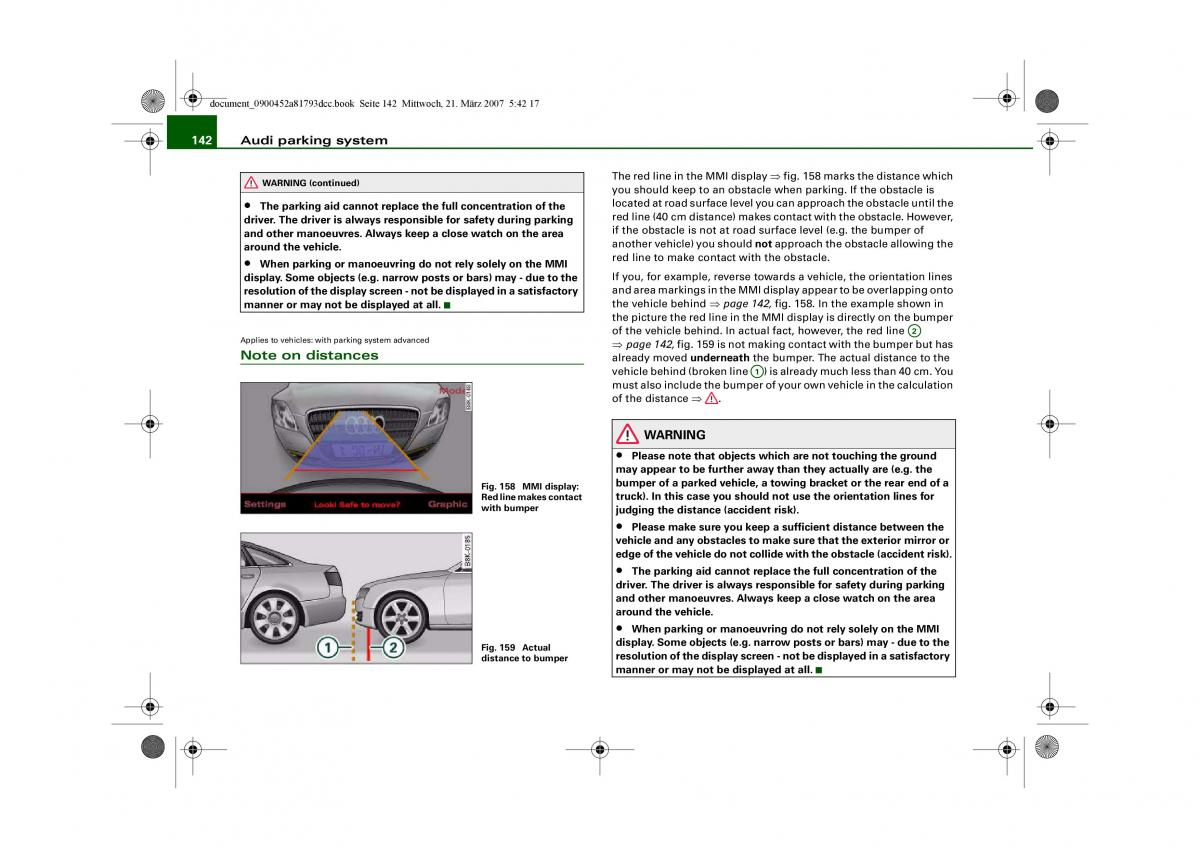

document_0900452a81793dcc.book Seite 142 Mittwoch, 21. März 2007 5:42 17 142 Audi parking system WARNING (continued) The red line in the MMI display ⇒ fig. 158 marks the distance which you should keep to an obstacle when parking. If the obstacle is • The parking aid cannot replace the full concentration of the located at road surface level you can approach the obstacle until the driver. The driver is always responsible for safety during parking red line (40 cm distance) makes cont act with the obstacle. However, and other manoeuvres. Always keep a close watch on the area if the obstacle is not at road surface level (e.g. the bumper of around the vehicle. another vehicle) you should not approach the obstacle allowing the • When parking or manoeuvring do not rely solely on the MMI red line to make contact with the obstacle. display. Some objects (e.g. narrow posts or bars) may - due to the If you, for example, reverse towards a vehicle, the orientation lines resolution of the display screen - not be displayed in a satisfactory and area markings in the MMI displa y appear to be overlapping onto manner or may not be displayed at all. the vehicle behind ⇒ page 142, fig. 158. In the example shown in the picture the red line in the MMI display is directly on the bumper of the vehicle behind. In actual fact, however, the red line 2 A Applies to vehicles: with parking system advanced ⇒page142, fig. 159 is not making contact with the bumper but has Note on distances already moved underneath the bumper. The actual distance to the vehicle behind (broken line 1) is already much less than 40 cm. You A must also include the bumper of your own vehicle in the calculation of the distance ⇒. WARNING • Please note that objects which are not touching the ground may appear to be further away than they actually are (e.g. the Fig. 158 MMI display: bumper of a parked vehicle, a towing bracket or the rear end of a Red line makes contact truck). In this case you should not use the orientation lines for with bumper judging the distance (accident risk). • Please make sure you keep a sufficient distance between the vehicle and any obstacles to make sure that the exterior mirror or edge of the vehicle do not collide with the obstacle (accident risk). • The parking aid cannot replace the full concentration of the driver. The driver is always responsible for safety during parking and other manoeuvres. Always keep a close watch on the area around the vehicle. • When parking or manoeuvring do not rely solely on the MMI Fig. 159 Actual display. Some objects (e.g. narrow posts or bars) may - due to the distance to bumper resolution of the display screen - not be displayed in a satisfactory manner or may not be displayed at all.
