text version of content this owner's manual page from owners manual to the vehicle VW Tiguan, year of production 2011:
x The leve⇒r fig. 44 for the fore and aft adjustment of the rear seat must not be operated
while the seat is removed. If the position of the fore and aft adjustment is changed, the rear
seat can only be installed by a qualified workshop.
Luggage compartment cover

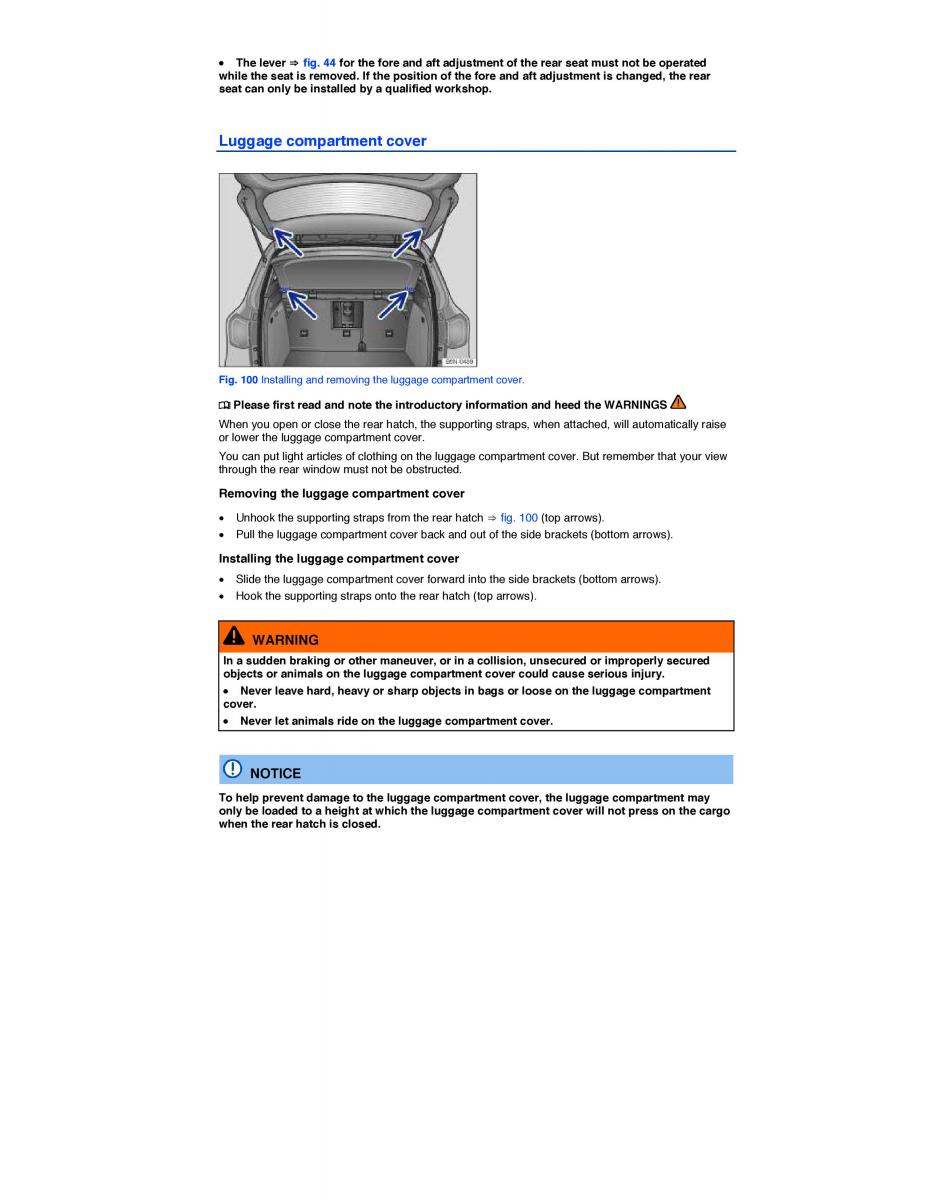

Fig. 100 Installing and removing the luggage compartment cover.
¤ Please first read and note the introductory information and heed the WARNINGS
When you open or close the rear hatch, the supporting straps, when attached, will automatically raise
or lower the luggage compartment cover.
You can put light articles of clothing on the luggage compartment cover. But remember that your view
through the rear window must not be obstructed.
Removing the luggage compartment cover
x Unhook the supporting straps from the rear hatch⇒ fig. 100 (top arrows).
x Pull the luggage compartment cover back and out of the side brackets (bottom arrows).
Installing the luggage compartment cover
x Slide the luggage compartment cover forward into the side brackets (bottom arrows).
x Hook the supporting straps onto the rear hatch (top arrows).
WARNING
In a sudden braking or other maneuver, or in a collision, unsecured or improperly secured
objects or animals on the luggage compartment cover could cause serious injury.
x Never leave hard, heavy or sharp objects in bags or loose on the luggage compartment
cover.
x Never let animals ride on the luggage compartment cover.
NOTICE
To help prevent damage to the luggage compartment cover, the luggage compartment may
only be loaded to a height at which the luggage compartment cover will not press on the cargo
when the rear hatch is closed.
