owners manual VW Tiguan

all ratings: 0 average rating: 5

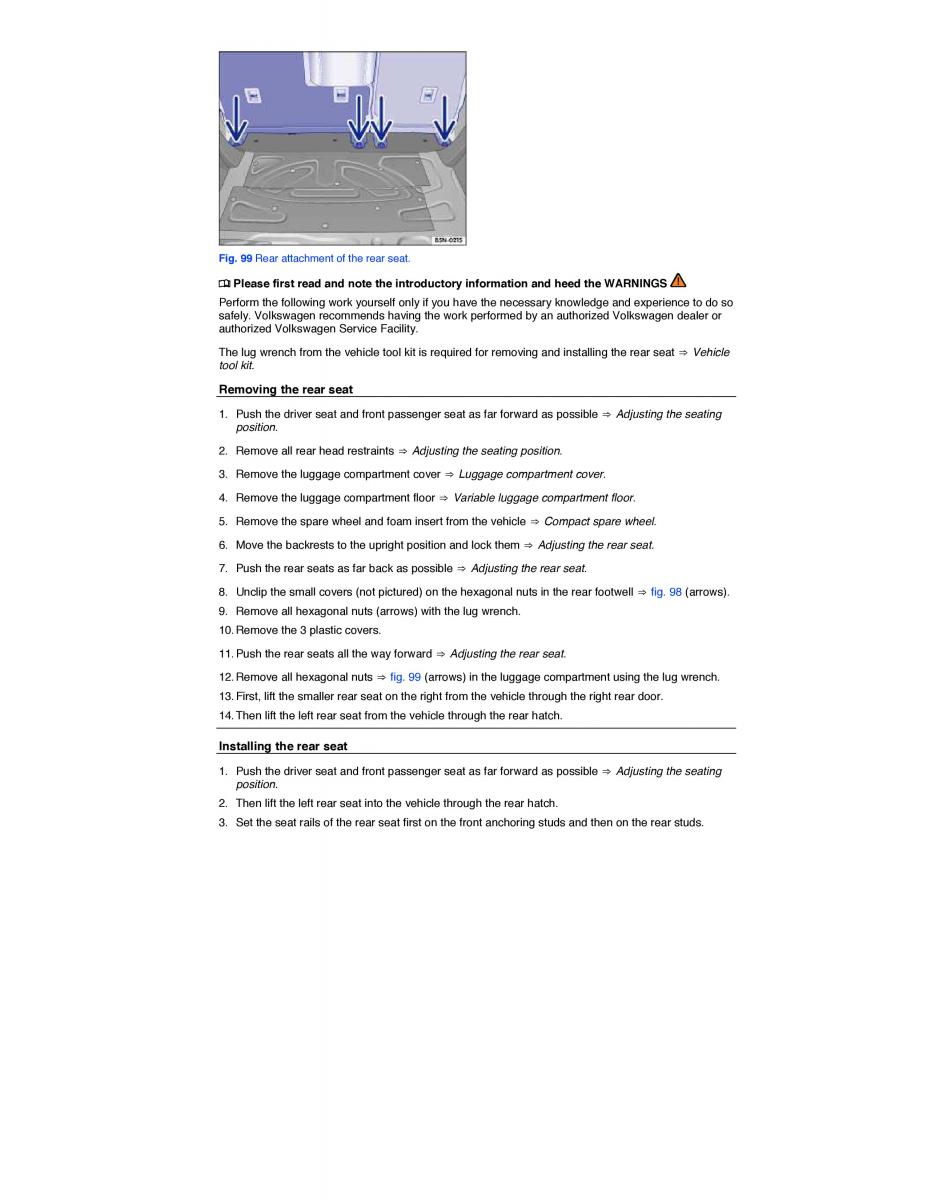

Fig. 99 Rear attachment of the rear seat. ¤ Please first read and note the introductory information and heed the WARNINGS Perform the following work yourself only if you have the necessary knowledge and experience to do so safely. Volkswagen recommends having the work performed by an authorized Volkswagen dealer or authorized Volkswagen Service Facility. The lug wrench from the vehicle tool kit is required for removing and installing the rear seat ⇒ Vehicle tool kit. Removing the rear seat 1. Push the driver seat and front passenger seat as far forward as possible ⇒ Adjusting the seating position. 2. Remove all rear head restraints ⇒ Adjusting the seating position. 3. Remove the luggage compartment cover ⇒ Luggage compartment cover. 4. Remove the luggage compartment floor ⇒ Variable luggage compartment floor. 5. Remove the spare wheel and foam insert from the vehicle ⇒ Compact spare wheel. 6. Move the backrests to the upright position and lock them ⇒ Adjusting the rear seat. 7. Push the rear seats as far back as possible ⇒ Adjusting the rear seat. 8. Unclip the small covers (not pictured) on the hexagonal nuts in the rear footwell ⇒ fig. 98 (arrows). 9. Remove all hexagonal nuts (arrows) with the lug wrench. 10. Remove the 3 plastic covers. 11. Push the rear seats all the way forward ⇒ Adjusting the rear seat. 12. Remove all hexagonal nuts ⇒ fig. 99 (arrows) in the luggage compartment using the lug wrench. 13. First, lift the smaller rear seat on the right from the vehicle through the right rear door. 14. Then lift the left rear seat from the vehicle through the rear hatch. Installing the rear seat 1. Push the driver seat and front passenger seat as far forward as possible ⇒ Adjusting the seating position. 2. Then lift the left rear seat into the vehicle through the rear hatch. 3. Set the seat rails of the rear seat first on the front anchoring studs and then on the rear studs.
