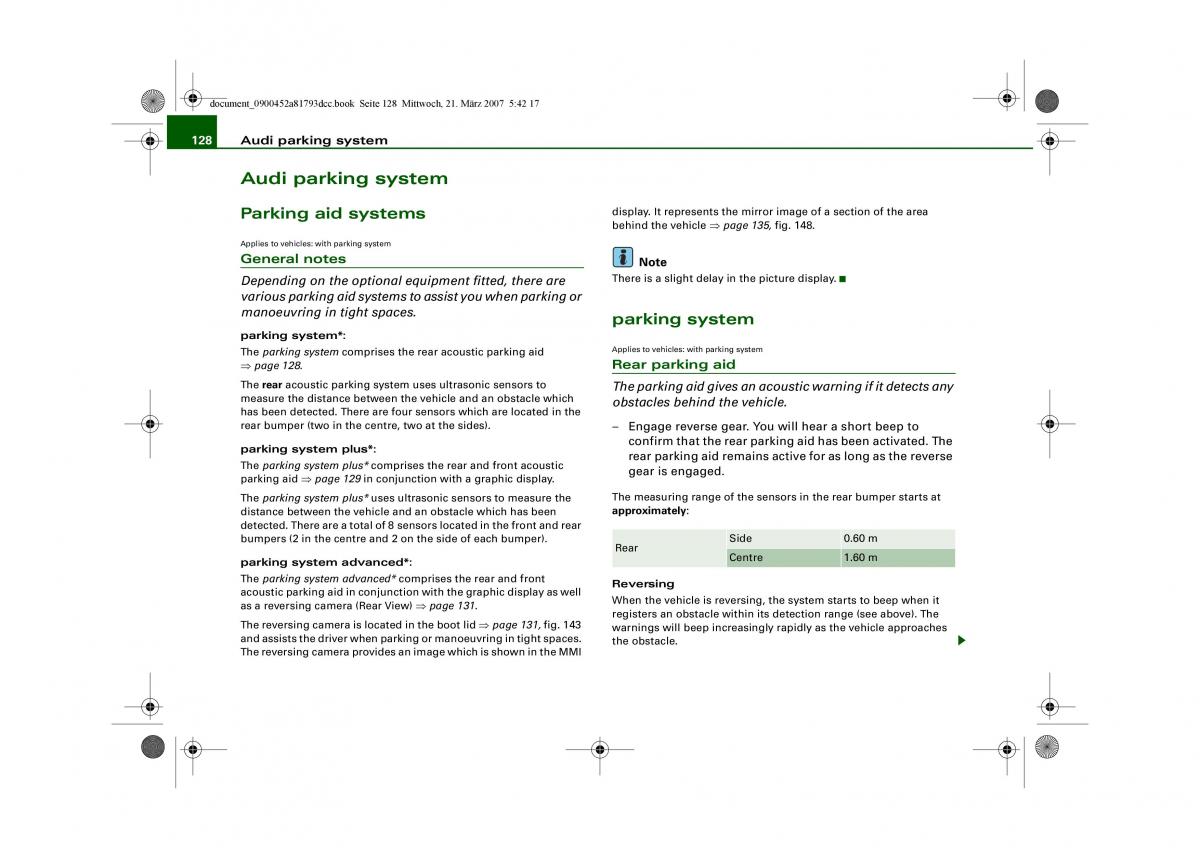

document_0900452a81793dcc.book Seite 128 Mittwoch, 21. März 2007 5:42 17 128 Audi parking system Audi parking system Parking aid systems display. It represents the mirror image of a section of the area behind the vehicle ⇒ page 135, fig. 148. Applies to vehicles: with parking system General notes Note Depending on the optional equipment fitted, there are There is a slight delay in the picture display. various parking aid systems to assist you when parking or manoeuvring in tight spaces. parking system parking system*: The parking system comprises the rear acoustic parking aid Applies to vehicles: with parking system ⇒page128. Rear parking aid The rear acoustic parking system uses ultrasonic sensors to The parking aid gives an acoustic warning if it detects any measure the distance between the vehicle and an obstacle which obstacles behind the vehicle. has been detected. There are four sensors which are located in the rear bumper (two in the centre, two at the sides). – Engage reverse gear. You will hear a short beep to parking system plus*: confirm that the rear parking aid has been activated. The The parking system plus* comprises the rear and front acoustic rear parking aid remains active for as long as the reverse parking aid ⇒ page 129 in conjunction with a graphic display. gear is engaged. The parking system plus* uses ultrasonic sensors to measure the The measuring range of the sensors in the rear bumper starts at distance between the vehicle and an obstacle which has been approximately: detected. There are a total of 8 sensors located in the front and rear bumpers (2 in the centre and 2 on the side of each bumper). Rear Side 0.60 m parking system advanced*: Centre 1.60 m The parking system advanced* comprises the rear and front Reversing acoustic parking aid in conjunction with the graphic display as well When the vehicle is reversing, the system starts to beep when it as a reversing camera (Rear View) ⇒ page 131. registers an obstacle within its detection range (see above). The The reversing camera is located in the boot lid ⇒ page 131, fig. 143 warnings will beep increasingly rapidly as the vehicle approaches and assists the driver when parking or manoeuvring in tight spaces. the obstacle. The reversing camera provides an image which is shown in the MMI
