text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

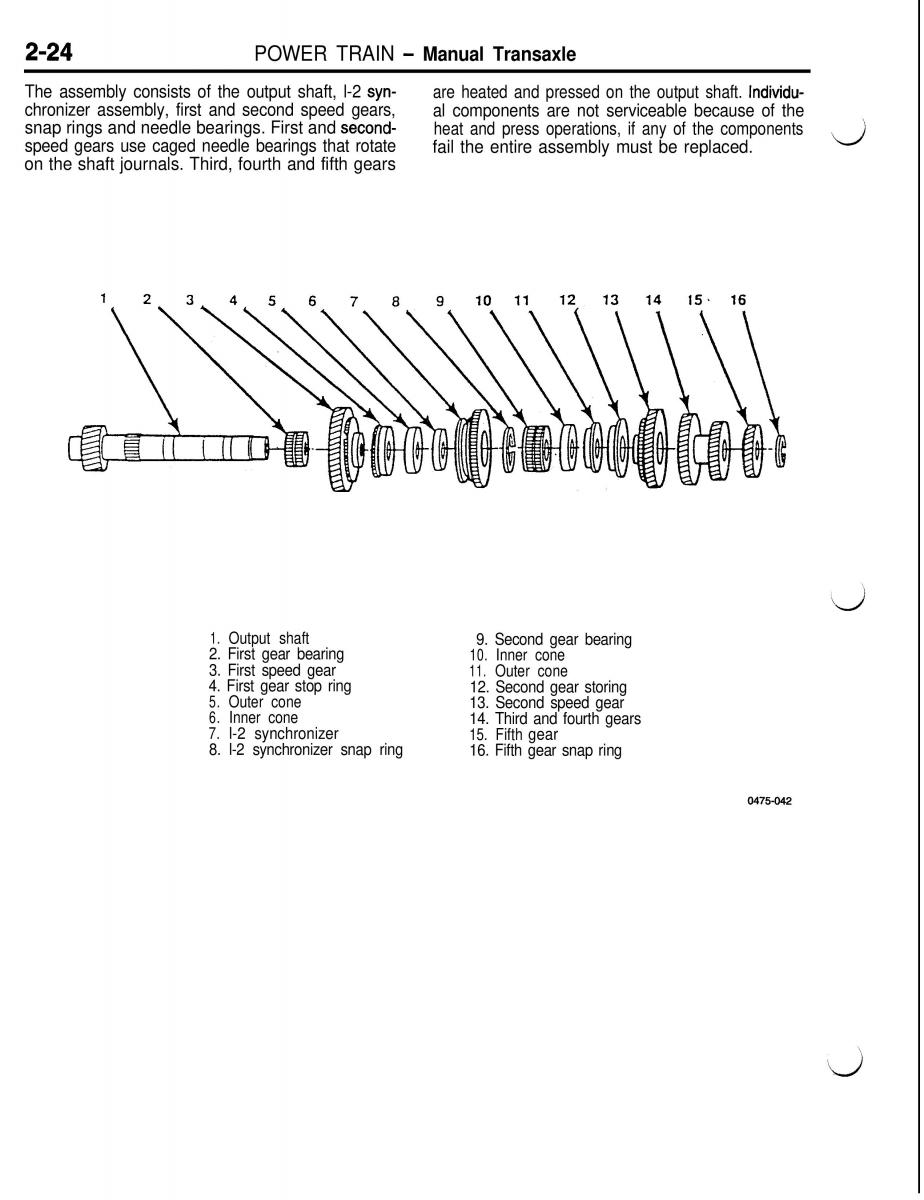

POWER TRAIN- Manual Transaxle The assembly consists of the output shaft, l-2syn- are heated and pressed on the output shaft.Individu- chronizer assembly, first and second speed gears, snap rings and needle bearings. First and second- al components are not serviceable because of the heat and press operations, if any of the components speed gears use caged needle bearings that rotate ‘L/ fail the entire assembly must be replaced. on the shaft journals. Third, fourth and fifth gears 1. Output shaft 9. Second gear bearing 2. First gear bearing 10. Inner cone 3. First speed gear 11. Outer cone 4. First gear stop ring 12. Second gear storing 5. Outer cone 13. Second speed gear 6. Inner cone 14. Third and fourth gears 7. l-2 synchronizer 15. Fifth gear 8. l-2 synchronizer snap ring 16. Fifth gear snap ring 0475-042
