text version of content this owner's manual page from owners manual to the vehicle Mitsubishi Eclipse, year of production 1995 - 1999:

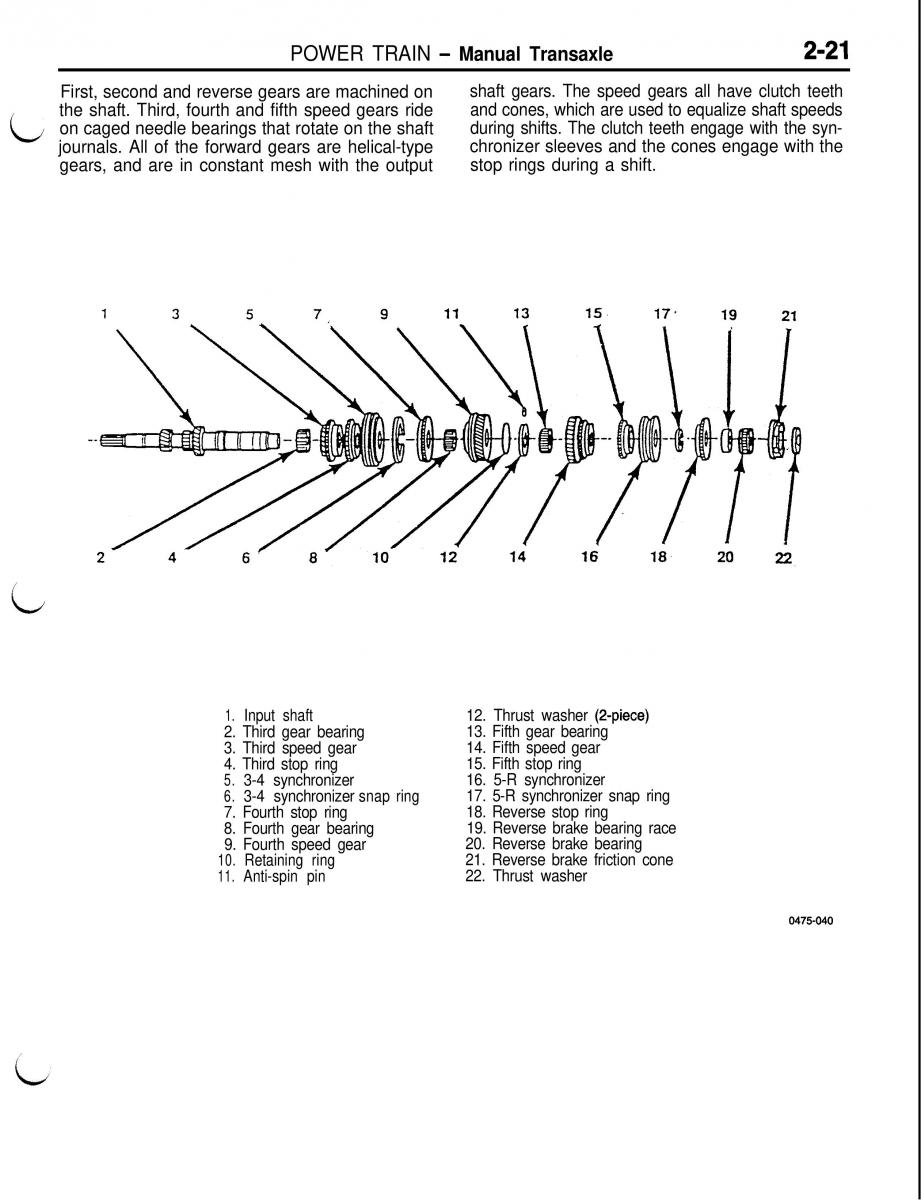

POWER TRAIN- Manual Transaxle 2-21 First, second and reverse gears are machined on shaft gears. The speed gears all have clutch teeth and cones, which are used to equalize shaft speeds the shaft. Third, fourth and fifth speed gears ride during shifts. The clutch teeth engage with the syn- Lon caged needle bearings that rotate on the shaft chronizer sleeves and the cones engage with the journals. All of the forward gears are helical-type stop rings during a shift. gears, and are in constant mesh with the output i 1. Input shaft 12. Thrust washer(2-piece) 2. Third gear bearing 13. Fifth gear bearing 3. Third speed gear 14. Fifth speed gear 4. Third stop ring 15. Fifth stop ring 5. 3-4 synchronizer 16. 5-R synchronizer 6. 3-4 synchronizersnap ring 17. 5-R synchronizer snap ring 7. Fourth stop ring 18. Reverse stop ring 8. Fourth gear bearing 19. Reverse brake bearing race 9. Fourth speed gear 20. Reverse brake bearing 10. Retaining ring 21. Reverse brake friction cone 11. Anti-spin pin 22. Thrust washer 0475-040
