owners manual Seat Ibiza

owners manual Seat Ibiza - year of production: 2008 - Seat Ibiza IV 4 owners manual EN

Document: pdf (3.92 MB) 284 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Seat Ibiza, year of production 2008:

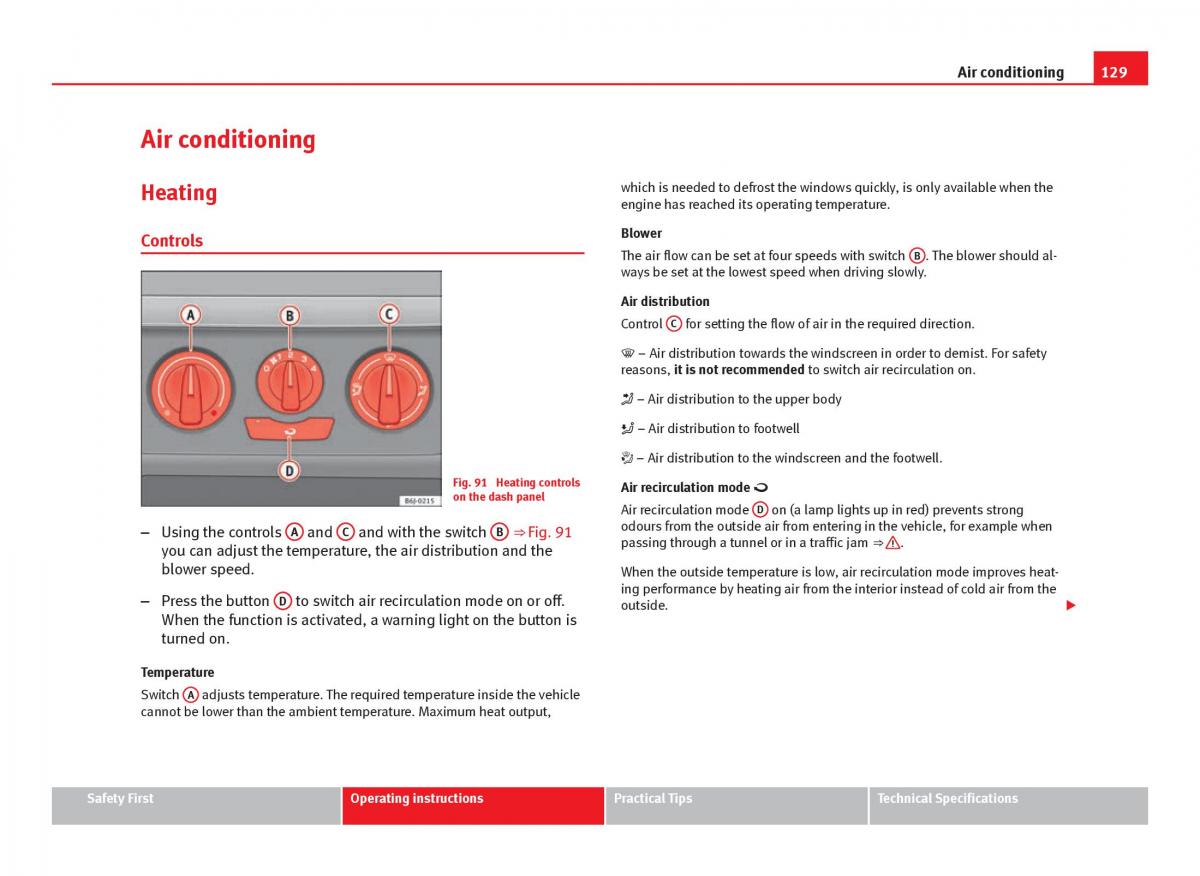

Air conditioning129 Air conditioning which is needed to defrost the windows quickly, is only available when the Heating engine has reached its operating temperature. Blower Controls The air flow can be set at four speeds with switch B . The blower should al- ways be set at the lowest speed when driving slowly. Air distribution Control C for setting the flow of air in the required direction.  – Air distribution towards the windscreen in order to demist. For safety reasons, it is not recommended to switch air recirculation on.  – Air distribution to the upper body  – Air distribution to footwell  – Air distribution to the windscreen and the footwell. Fig. 91 Heating controls Air recirculation mode  on the dash panel Air recirculation mode D on (a lamp lights up in red) prevents strong odours from the outside air from entering in the vehicle, for example when – Using the controls A and C and with the switch B ⇒ Fig. 91 passing through a tunnel or in a traffic jam ⇒ . you can adjust the temperature, the air distribution and the blower speed. When the outside temperature is low, air recirculation mode improves heat- ing performance by heating air from the interior instead of cold air from the – Press the button D to switch air recirculation mode on or off. outside.  When the function is activated, a warning light on the button is turned on. Temperature Switch A adjusts temperature. The required temperature inside the vehicle cannot be lower than the ambient temperature. Maximum heat output, Safety First Operating instructions Practical Tips Technical Specifications

Download PDF

Click here to download a pdf file with an instruction manual for Seat Ibiza
year of production from: 2008

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Seat Ibiza IV 4 owners manual
pages 128 - 134

Seat Ibiza IV 4 owners manual
page 131 / 284

this site is maintained by advertising - for view instructions, turn off ad blocking in your browser

Seat Ibiza IV 4 owners manual / page 131
