owners manual Seat Ibiza

owners manual Seat Ibiza - year of production: 2008 - Seat Ibiza IV 4 owners manual EN

Document: pdf (3.92 MB) 284 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Seat Ibiza, year of production 2008:

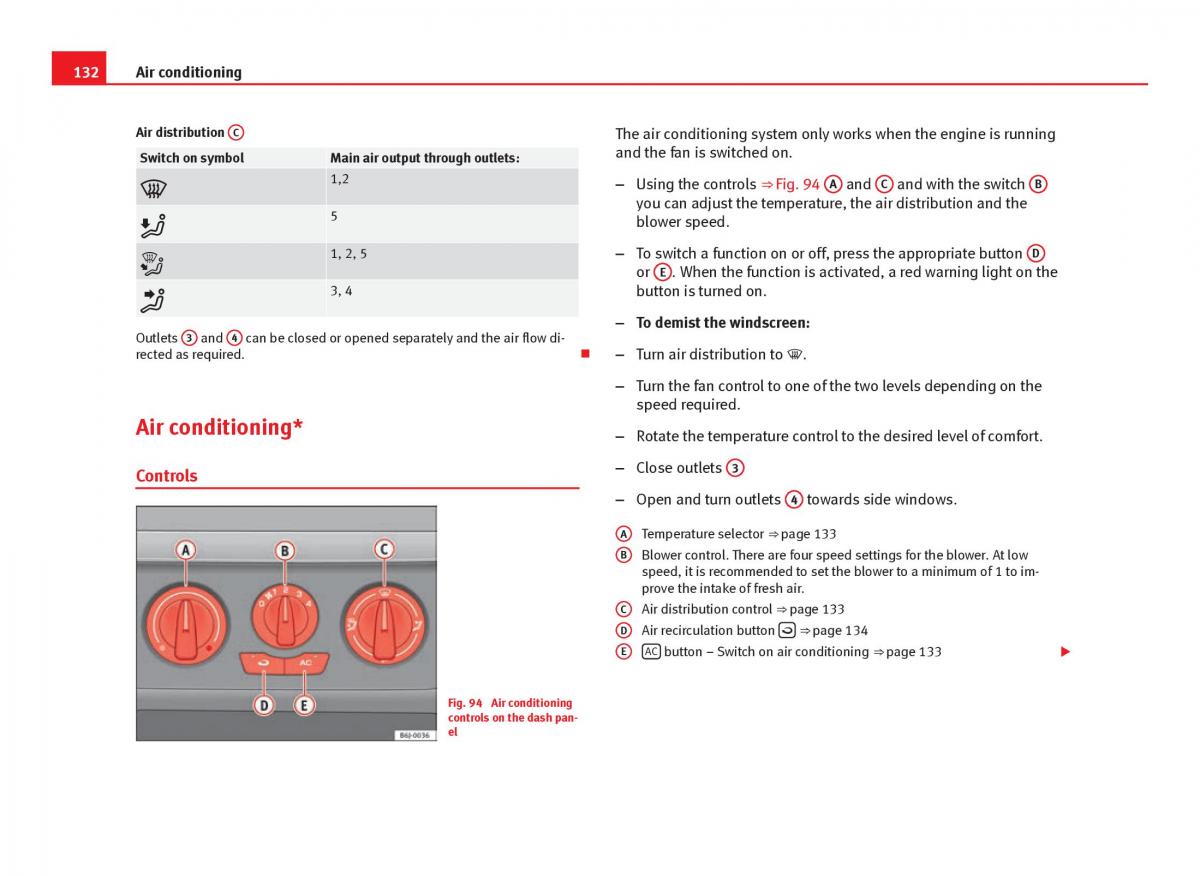

132 Air conditioning Air distribution C The air conditioning system only works when the engine is running and the fan is switched on. Switch on symbol Main air output through outlets: 1,2 – Using the controls ⇒ Fig. 94 A and C and with the switch B  you can adjust the temperature, the air distribution and the 5 blower speed.  1, 2, 5 – To switch a function on or off, press the appropriate button D  or E . When the function is activated, a red warning light on the 3, 4 button is turned on.  – To demist the windscreen: Outlets 3 and 4 can be closed or opened separately and the air flow di-  rected as required. – Turn air distribution to . – Turn the fan control to one of the two levels depending on the speed required. Air conditioning* – Rotate the temperature control to the desired level of comfort. – Close outlets 3 Controls – Open and turn outlets 4 towards side windows. A Temperature selector ⇒ page 133 B Blower control. There are four speed settings for the blower. At low speed, it is recommended to set the blower to a minimum of 1 to im- prove the intake of fresh air. C Air distribution control ⇒ page 133 D Air recirculation button  ⇒ page 134 E AC button – Switch on air conditioning ⇒ page 133  Fig. 94 Air conditioning controls on the dash pan- el

Download PDF

Click here to download a pdf file with an instruction manual for Seat Ibiza
year of production from: 2008

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Seat Ibiza IV 4 owners manual
pages 131 - 137

Seat Ibiza IV 4 owners manual
page 134 / 284

this site is maintained by advertising - for view instructions, turn off ad blocking in your browser

Seat Ibiza IV 4 owners manual / page 134
