owners manual Seat Ibiza

all ratings: 0 average rating: 5

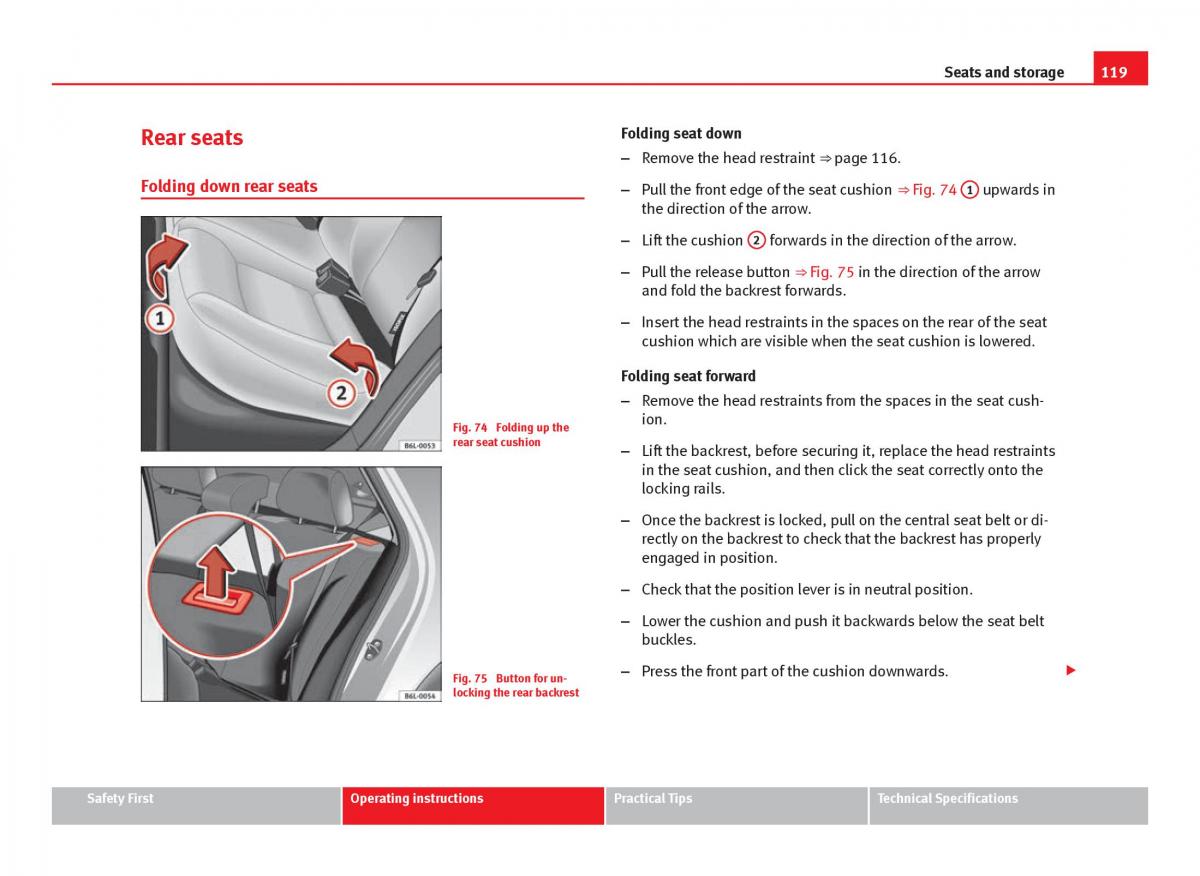

Seats and storage119 Folding seat down Rear seats – Remove the head restraint ⇒ page 116. Folding down rear seats – Pull the front edge of the seat cushion ⇒ Fig. 74 1 upwards in the direction of the arrow. – Lift the cushion 2 forwards in the direction of the arrow. – Pull the release button ⇒ Fig. 75 in the direction of the arrow and fold the backrest forwards. – Insert the head restraints in the spaces on the rear of the seat cushion which are visible when the seat cushion is lowered. Folding seat forward – Remove the head restraints from the spaces in the seat cush- ion. Fig. 74 Folding up the rear seat cushion – Lift the backrest, before securing it, replace the head restraints in the seat cushion, and then click the seat correctly onto the locking rails. – Once the backrest is locked, pull on the central seat belt or di- rectly on the backrest to check that the backrest has properly engaged in position. – Check that the position lever is in neutral position. – Lower the cushion and push it backwards below the seat belt buckles.  – Press the front part of the cushion downwards. Fig. 75 Button for un- locking the rear backrest Safety First Operating instructions Practical Tips Technical Specifications
