owners manual Seat Ibiza

owners manual Seat Ibiza - year of production: 2008 - Seat Ibiza IV 4 owners manual EN

Document: pdf (3.92 MB) 284 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Seat Ibiza, year of production 2008:

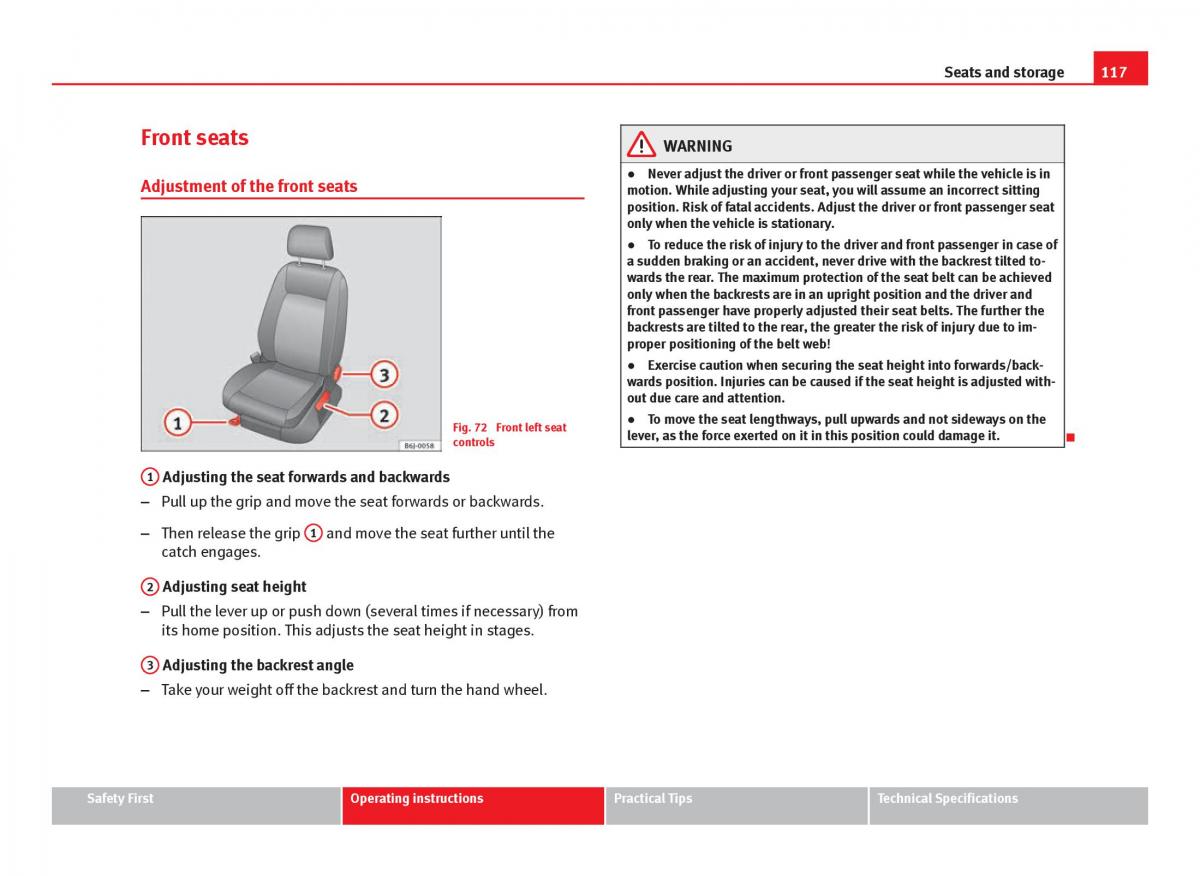

Seats and storage 117 Front seats WARNING ● Never adjust the driver or front passenger seat while the vehicle is in Adjustment of the front seats motion. While adjusting your seat, you will assume an incorrect sitting position. Risk of fatal accidents. Adjust the driver or front passenger seat only when the vehicle is stationary. ● To reduce the risk of injury to the driver and front passenger in case of a sudden braking or an accident, never drive with the backrest tilted to- wards the rear. The maximum protection of the seat belt can be achieved only when the backrests are in an upright position and the driver and front passenger have properly adjusted their seat belts. The further the backrests are tilted to the rear, the greater the risk of injury due to im- proper positioning of the belt web! ● Exercise caution when securing the seat height into forwards/back- wards position. Injuries can be caused if the seat height is adjusted with- out due care and attention. ● To move the seat lengthways, pull upwards and not sideways on the Fig. 72 Front left seat lever, as the force exerted on it in this position could damage it. controls 1 Adjusting the seat forwards and backwards – Pull up the grip and move the seat forwards or backwards. – Then release the grip 1 and move the seat further until the catch engages. 2 Adjusting seat height – Pull the lever up or push down (several times if necessary) from its home position. This adjusts the seat height in stages. 3 Adjusting the backrest angle – Take your weight off the backrest and turn the hand wheel. Safety First Operating instructions Practical Tips Technical Specifications

Download PDF

Click here to download a pdf file with an instruction manual for Seat Ibiza
year of production from: 2008

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Seat Ibiza IV 4 owners manual
pages 116 - 122

Seat Ibiza IV 4 owners manual
page 119 / 284

this site is maintained by advertising - for view instructions, turn off ad blocking in your browser

Seat Ibiza IV 4 owners manual / page 119
