text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 33, year of production 1983 - 1995:
IGNITION, STARTING, CHARGING SYSTEM
CAUTION: 2. Counterweights advance

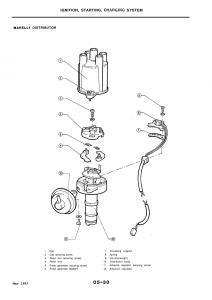

Marelli Distributor (I) Carry out steps 1 and 2
relevant to vacuum advance verifica-
Every time it is carried out a disas-
tion.
sembly or replacement operation of
(2) On vacuum spark advance con-
magnetic pulse generator,itis
trol disconnected from test bed
anyway required to reassemble the
vacuometer, read, oincreasingn
magnetic spacer of pulse generator
support. r.p.m., the automatic advance curve
(see: Service Data and Specifi-
cations).
(3) If the particulars are not within
TEST the prescribed values, carefully exam-
ine the distributor and, particularly
STAND INSPECTIONS
the counterweights and relevant
timer, and pulse
return springs,
1. Vacuum advance
generator. Replace faulty the parts.
1 Timer 2 Pulse generator (1) Mount the ignition distributor
on a test bed and carry out electric
connections.
(2) Carry out spark resetting on
REASSEMBLY goniometer disc of test bed by
rotating distributor manually or
with the test bed motor without
For reassembly reverse the order of
exceeding 50 r.p.m. speed.
disassembly and comply with the
following: (3) Carry out connection of vacuum
pipe to vacuometer of test bed.
1. Lubricate the following com-
(4) On increasing vacuum, read the
ponents by means of distributor
special grease. advance curve (see Service Data and
. Counterweights springs Specifications).
. Counterweights (5) If the read curve -is not within
the prescribed deviations, replace the
2. Lubricatefelt of. distributo r
vacuum advance device.
shaft with few oil drops.
SERVICE DATA AND SPECIFICATIONS
TECHNICAL DATA ANDINSPECTldNS
Ignition Distributor
Alfa RomeoClass 542.168 542.161
Type MARELLI BOSCH
I SM 802 AX I 0.237.005.004
Firing order I-3-2-4
Pulse Generaxor Coil Resistance i-2 730 f 5% 1100’10%
Internal resistance of distributor 1 rotor armA-L 5000 1000
Air gap mm 0.4 + 0.5
(in) (0.015 + 0.019)
ELECTRONIC MODULE
V 4+16 .
Suppl; voltage
6
A
Maximum controllable current
- 30 + + 185°C(- 22 + * 365°F)
.
Radiator limit temperature
05-33 May 1983
