MX-5_8EN7-EA-14E_Edition1 Page110
Friday, March 28 2014 3:38 PM
Black plate (110,1)
KnowingYourMazda
DoorsandLocks

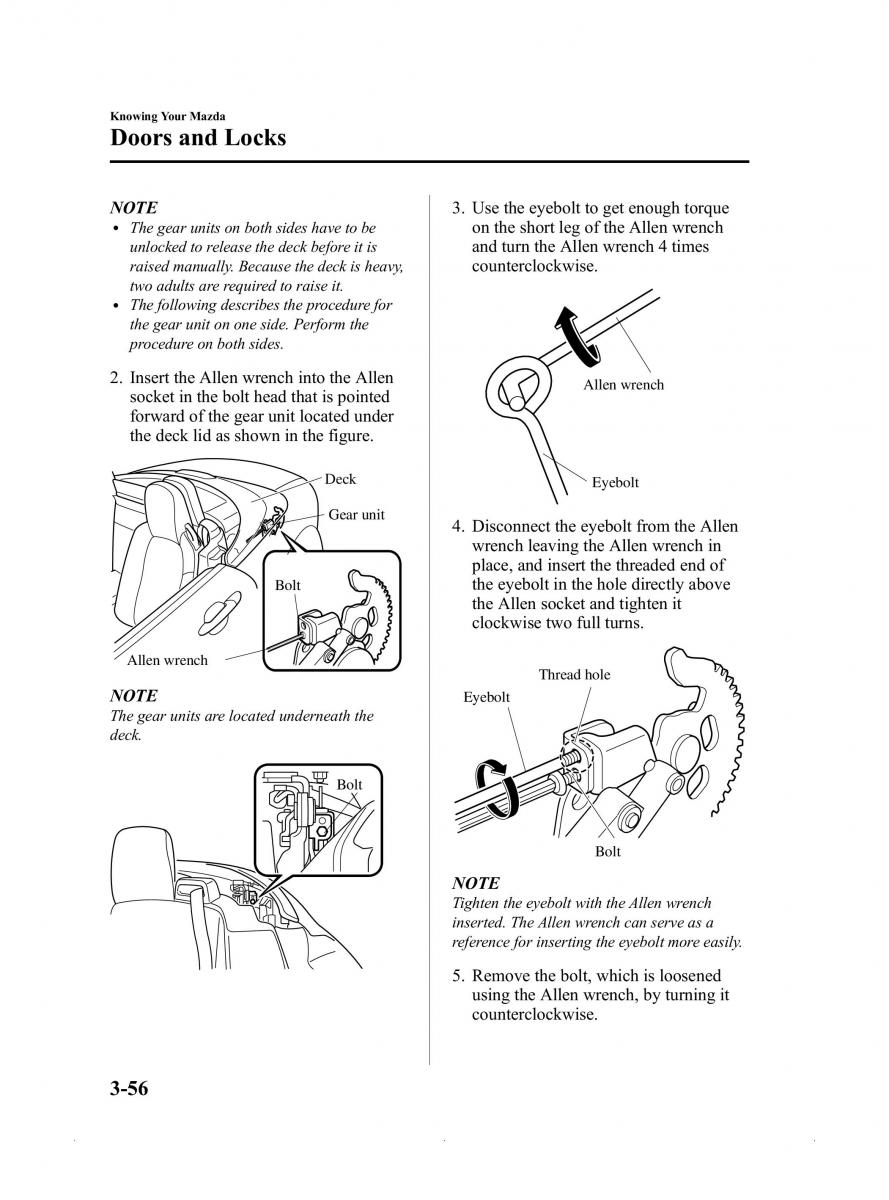

NOTE 3. Use the eyebolt to get enough torque
l Thegearunits on both sides have to be on the short leg of the Allen wrench
unlocked to release the deck before it is and turn the Allen wrench 4 times
raised manually. Because the deck is heavy, counterclockwise.
two adults are required to raise it.
l Thefollowing describes the procedure for
the gear unit on one side. Perform the
procedure on both sides.
2. Insert the Allen wrench into the Allen Allen wrench
socket in the bolt head that is pointed
forward of the gear unit located under
the deck lid as shown in the figure.
Deck Eyebolt
Gear unit 4. Disconnect the eyebolt from the Allen
wrench leaving the Allen wrench in
place, and insert the threaded end of
Bolt the eyebolt in the hole directly above
the Allen socket and tighten it
clockwise two full turns.
Allen wrench Thread hole
NOTE Eyebolt
The gear units are located underneath the
deck.
Bolt
Bolt
NOTE
Tighten the eyebolt with the Allen wrench
inserted. The Allen wrench can serve as a
reference for inserting the eyebolt more easily.
5. Remove the bolt, which is loosened
using the Allen wrench, by turning it
counterclockwise.
3-56
Form No.8EN7-EA-14E
