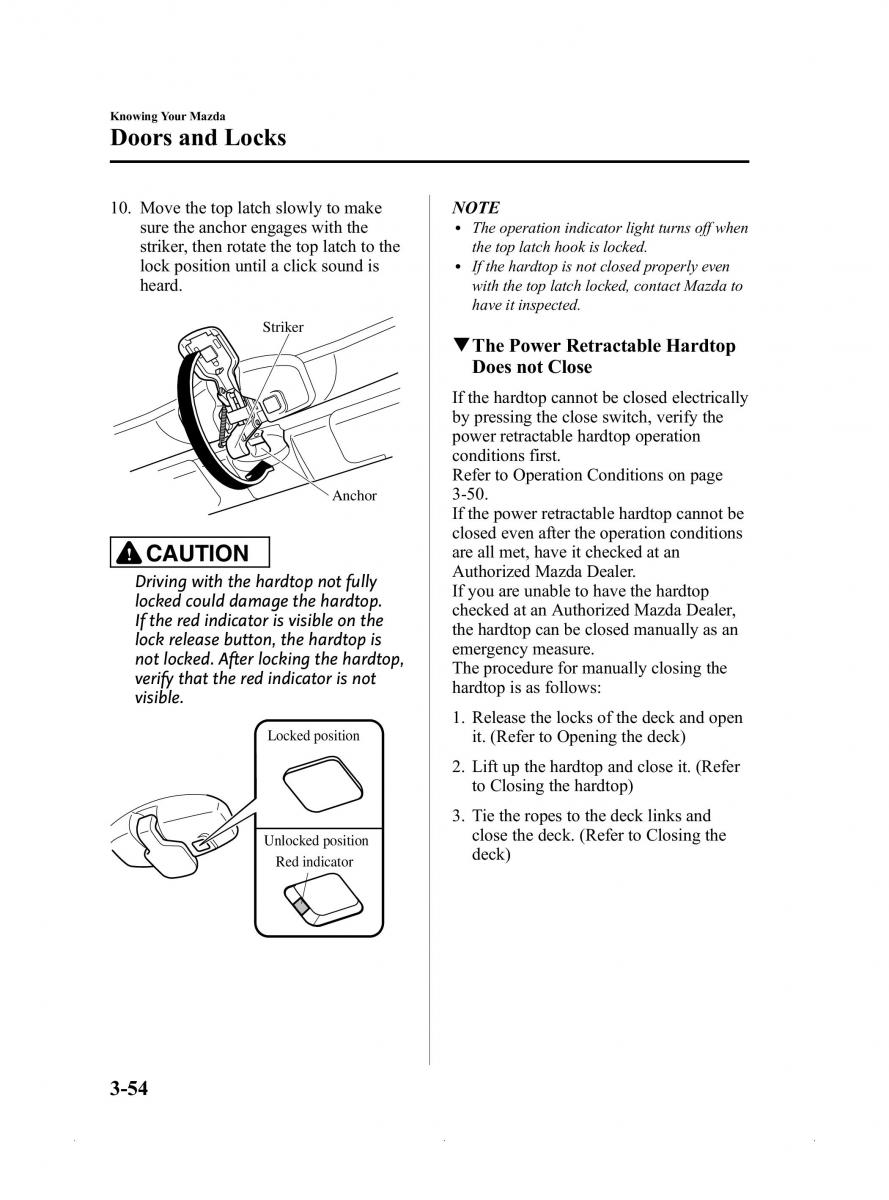

MX-5_8EN7-EA-14E_Edition1 Page108
Friday, March 28 2014 3:38 PM
Black plate (108,1)
KnowingYourMazda
DoorsandLocks
10. Move the top latch slowly to make NOTE
sure the anchor engages with the l Theoperation indicator light turns off when
striker, then rotate the top latch to the the top latch hook is locked.
lock position until a click sound is l If the hardtop is not closed properly even
heard. with the top latch locked, contact Mazda to
have it inspected.
Striker
qThePowerRetractableHardtop
DoesnotClose
If the hardtop cannot be closed electrically
by pressing the close switch, verify the
powerretractable hardtop operation
conditions first.
Refer to Operation Conditions on page
Anchor 3-50.
If the power retractable hardtop cannot be
closed even after the operation conditions
CAUTION are all met, have it checked at an
Driving with the hardtop not fully Authorized Mazda Dealer.
locked could damage the hardtop. If you are unable to have the hardtop
If the red indicator is visible on the checked at an Authorized Mazda Dealer,
lock release button, the hardtop is the hardtop can be closed manually as an
not locked. After locking the hardtop, emergency measure.
verify that the red indicator is not Theprocedure for manually closing the
visible. hardtop is as follows:
1. Release the locks of the deck and open
Locked position it. (Refer to Opening the deck)
2. Lift up the hardtop and close it. (Refer
to Closing the hardtop)
3. Tie the ropes to the deck links and
Unlocked position close the deck. (Refer to Closing the
Red indicator deck)
3-54
Form No.8EN7-EA-14E
