owners manual Opel Combo

owners manual Opel Combo - year of production: 2011 - Opel Combo D owners manual EN

Document: pdf (5.18 MB) 162 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Opel Combo, year of production 2011:

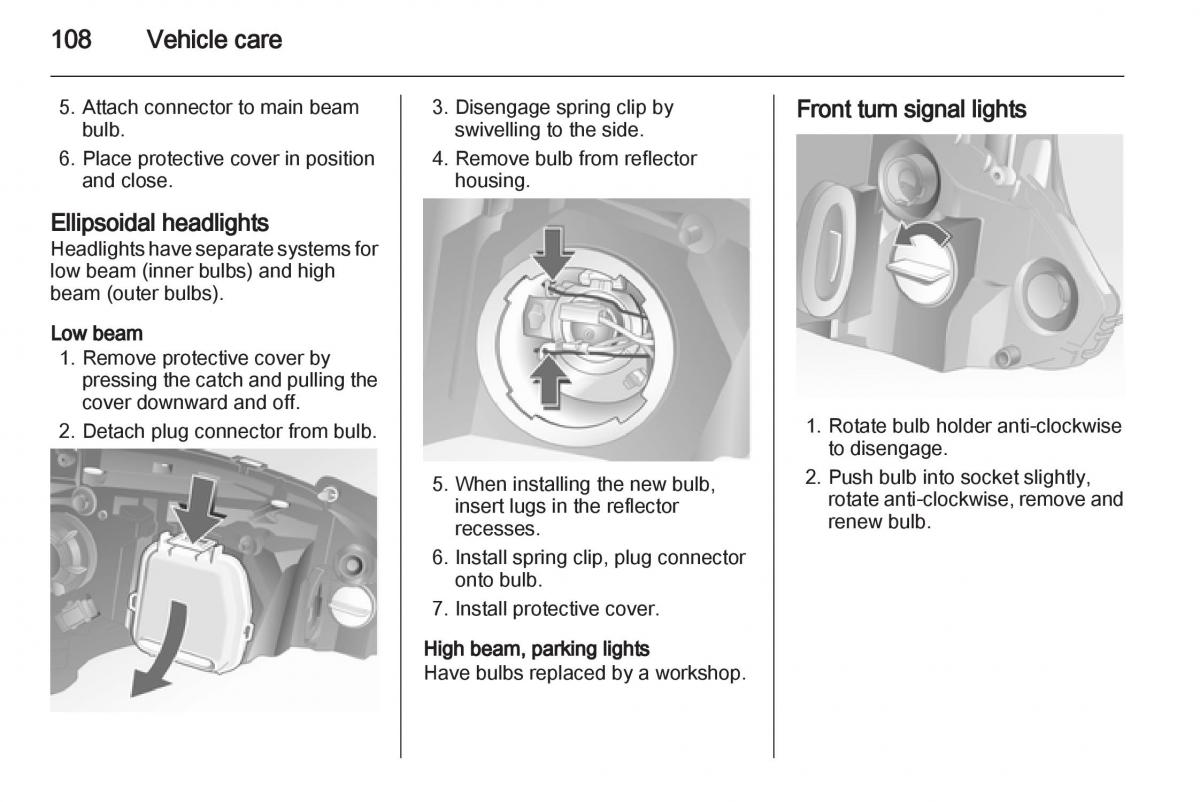

108 Vehicle care 5. Attach connector to main beam3. Disengage spring clip by Front turn signal lights bulb. swivelling to the side. 6. Place protective cover in position4. Remove bulb from reflector and close. housing. Ellipsoidal headlights Headlights have separate systems for low beam (inner bulbs) and high beam (outer bulbs). Low beam 1. Remove protective cover by pressing the catch and pulling the cover downward and off. 1. Rotate bulb holder anti-clockwise 2. Detach plug connector from bulb. to disengage. 2. Push bulb into socket slightly, 5. When installing the new bulb, rotate anti-clockwise, remove and insert lugs in the reflector renew bulb. recesses. 6. Install spring clip, plug connector onto bulb. 7. Install protective cover. High beam, parking lights Have bulbs replaced by a workshop.

Download PDF

Click here to download a pdf file with an instruction manual for Opel Combo
year of production from: 2011

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Opel Combo D owners manual
pages 105 - 111

Opel Combo D owners manual
page 108 / 162
