text version of content this owner's manual page from owners manual to the vehicle Opel Combo, year of production 2011:

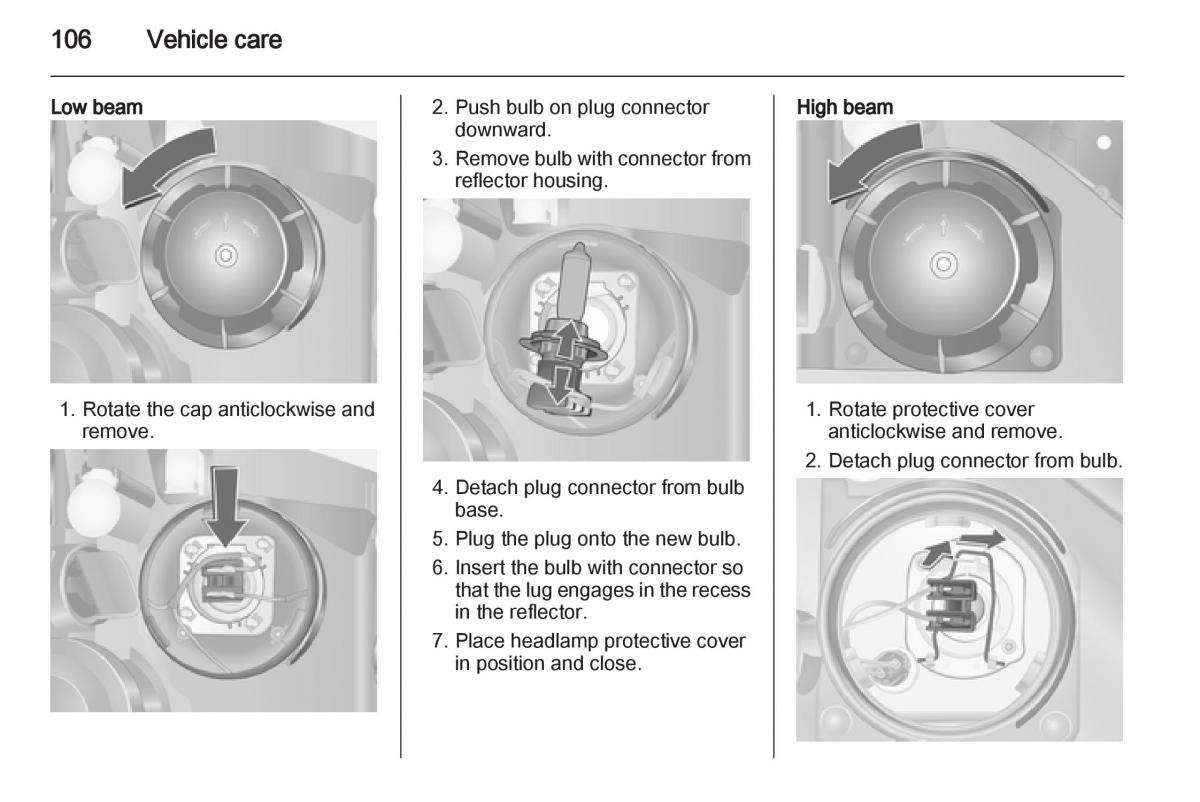

106 Vehicle care Low beam 2. Push bulb on plug connectorHigh beam downward. 3. Remove bulb with connector from reflector housing. 1. Rotate the cap anticlockwise and 1. Rotate protective cover remove. anticlockwise and remove. 2. Detach plug connector from bulb. 4. Detach plug connector from bulb base. 5. Plug the plug onto the new bulb. 6. Insert the bulb with connector so that the lug engages in the recess in the reflector. 7. Place headlamp protective cover in position and close.
