owners manual Opel Combo

owners manual Opel Combo - year of production: 2011 - Opel Combo D owners manual EN

Document: pdf (5.18 MB) 162 pages

all ratings: 0 average rating: 5

text version of content this owner's manual page from owners manual to the vehicle Opel Combo, year of production 2011:

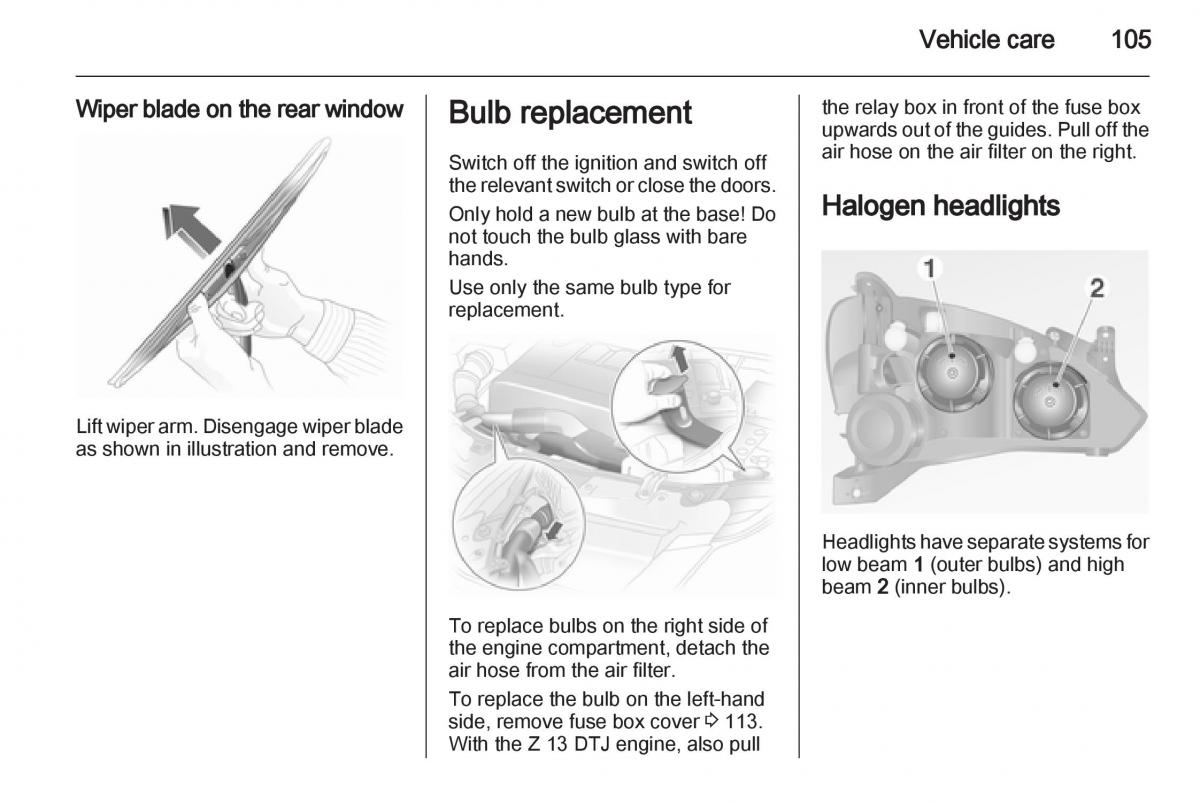

Vehicle care105 the relay box in front of the fuse box Wiper blade on the rear window Bulb replacement upwards out of the guides. Pull off the air hose on the air filter on the right. Switch off the ignition and switch off the relevant switch or close the doors. Halogen headlights Only hold a new bulb at the base! Do not touch the bulb glass with bare hands. Use only the same bulb type for replacement. Lift wiper arm. Disengage wiper blade as shown in illustration and remove. Headlights have separate systems for low beam 1 (outer bulbs) and high beam 2 (inner bulbs). To replace bulbs on the right side of the engine compartment, detach the air hose from the air filter. To replace the bulb on the left-hand side, remove fuse box cover 3 113. With the Z 13 DTJ engine, also pull

Download PDF

Click here to download a pdf file with an instruction manual for Opel Combo
year of production from: 2011

Do you prefer pdf format?
Find out how to download

Enter the code to download PDF file:

All pages in one PDF file!

How to get the code?
It's very simple! Just pay through a secure PayPal payment.
It will take no longer than a few minutes.
You will receive the code immediately after payment.
The code will be displayed on the screen and will be sent to you by e-mail address.

Opel Combo D owners manual
pages 102 - 108

Opel Combo D owners manual
page 105 / 162
