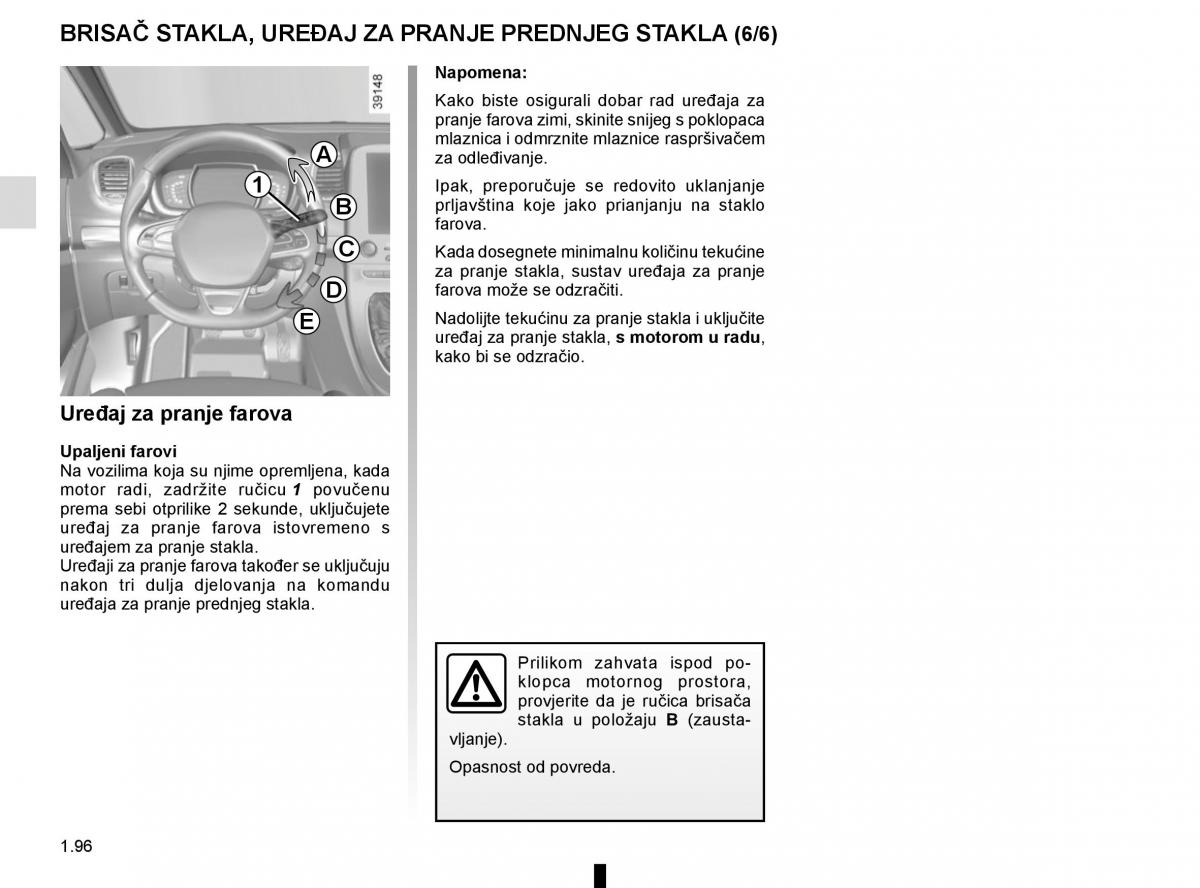

BRISAČ STAKLA, UREĐAJ ZA PRANJE PREDNJEG STAKLA (6/6)
Napomena:
Kako biste osigurali dobar rad uređaja za
G pranje farova zimi, skinite snijeg s poklopaca
A mlaznica i odmrznite mlaznice raspršivačem
za odleđivanje.
1 Ipak, preporučuje se redovito uklanjanje
B prljavština koje jako prianjanju na staklo
farova.
C Kada dosegnete minimalnu količinu tekućine
za pranje stakla, sustav uređaja za pranje
D farova može se odzračiti.
E Nadolijte tekućinu za pranje stakla i uključite
uređaj za pranje stakla, s motorom u radu,
kako bi se odzračio.
Uređaj za pranje farova
Upaljeni farovi
Na vozilima koja su njime opremljena, kada
motor radi, zadržite ručicu 1 povuenuč
prema sebi otprilike 2 sekunde, uključujete
uređaj za pranje farova istovremeno s
uređajem za pranje stakla.
Uređaji za pranje farova također se uklju čuju
nakon tri dulja djelovanja na komandu
uređaja za pranje prednjeg stakla.
Prilikom zahvata ispod po-
klopca motornog prostora,
provjerite da je ruica brisača č
stakla u položaju B (zausta-
vljanje).
Opasnost od povreda.
1.96
