text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4, year of production 2006 - 2014:

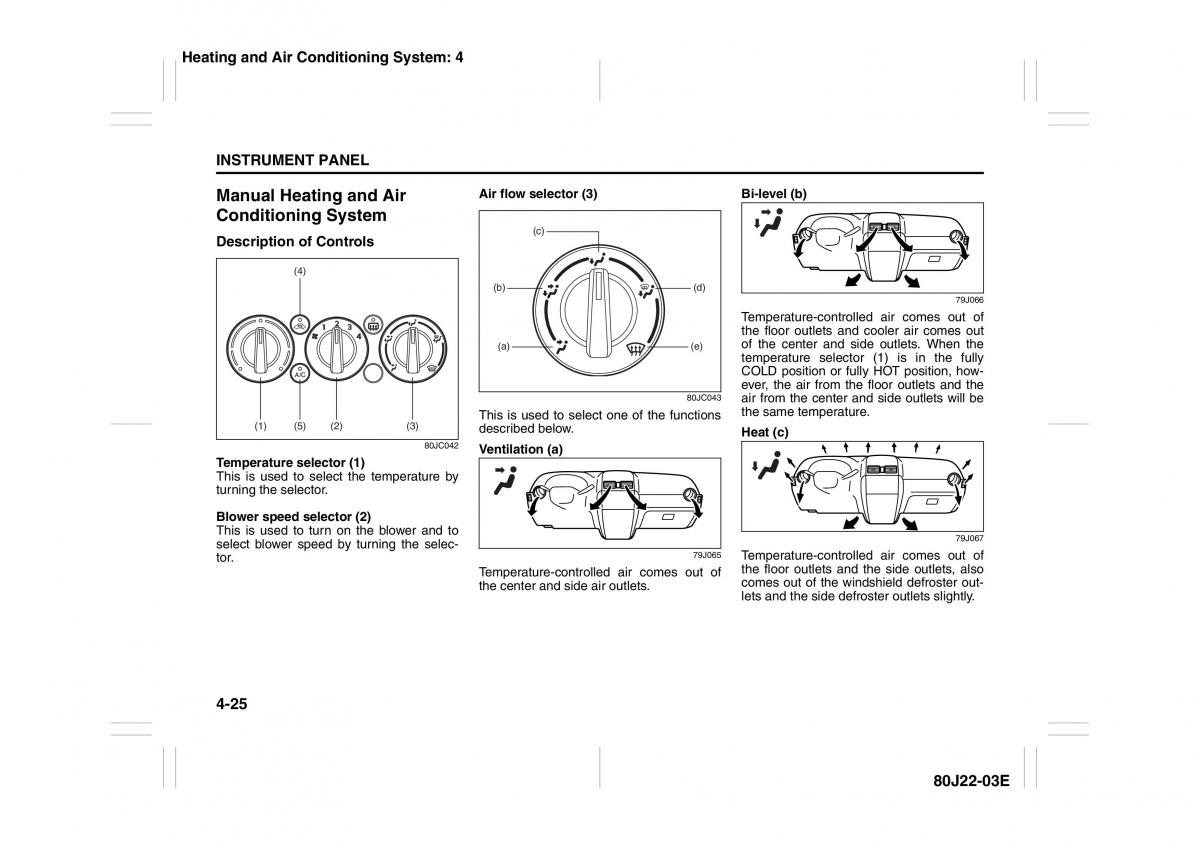

Heating and Air Conditioning System: 4 INSTRUMENT PANEL Manual Heating and Air Air flow selector (3) Bi-level (b) Conditioning System Description of Controls (c) (4) (b) (d) 79J066 Temperature-controlled air comes out of the floor outlets and cooler air comes out (a) (e) of the center and side outlets. When the temperature selector (1) is in the fully COLD position or fully HOT position, how- ever, the air from the floor outlets and the 80JC043 air from the center and side outlets will be the same temperature. This is used to select one of the functions (1) (5) (2) (3) described below. Heat (c) 80JC042 Ventilation (a) Temperature selector (1) This is used to select the temperature by turning the selector. Blower speed selector (2) This is used to turn on the blower and to 79J067 select blower speed by turning the selec- tor. 79J065 Temperature-controlled air comes out of the floor outlets and the side outlets, also Temperature-controlled air comes out of the center and side air outlets. comes out of the windshield defroster out- lets and the side defroster outlets slightly. 4-25 80J22-03E
