text version of content this owner's manual page from owners manual to the vehicle Suzuki SX4, year of production 2006 - 2014:

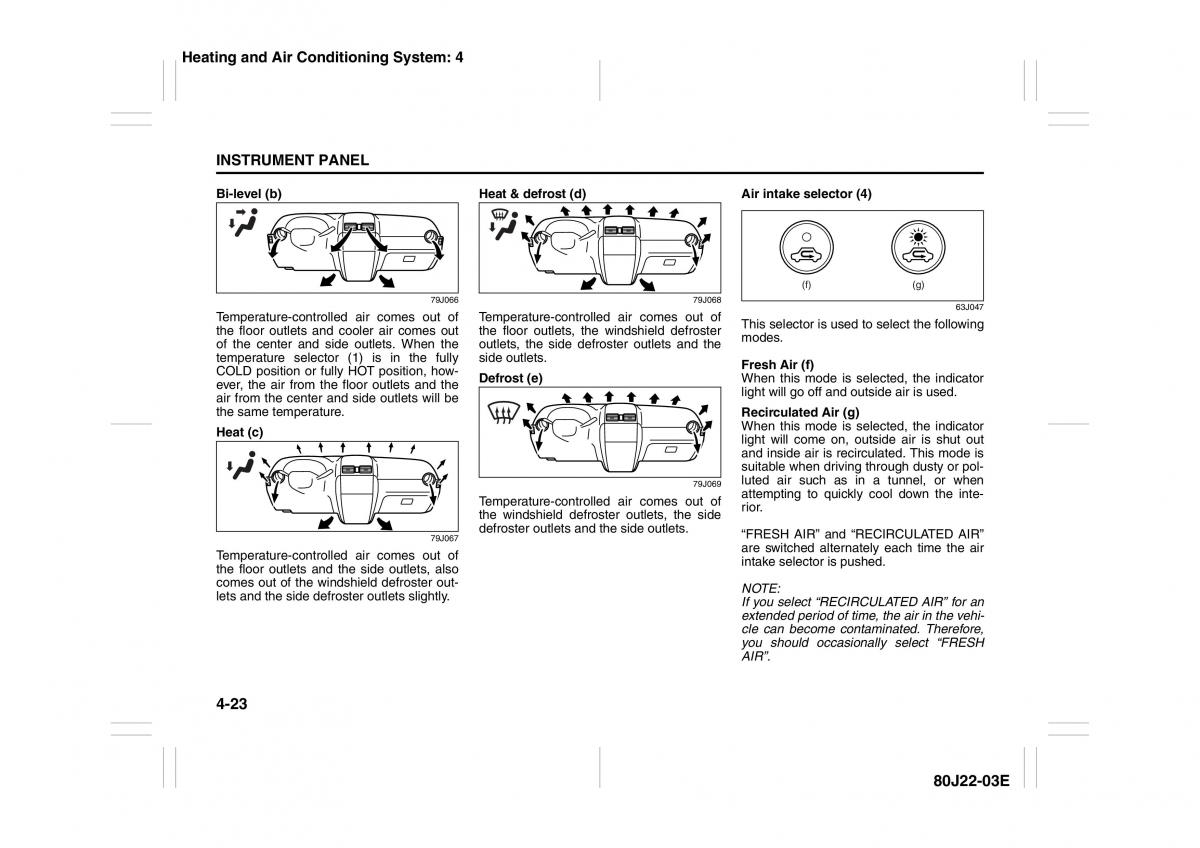

Heating and Air Conditioning System: 4 INSTRUMENT PANEL Bi-level (b) Heat & defrost (d) Air intake selector (4) (f) (g) 79J066 79J068 63J047 Temperature-controlled air comes out oTempefrature-controlled air comes out of This selector is used to select the following the floor outlets and cooler air comes outhet floor outlets, the windshield defroster modes. of the center and side outlets. Whoutletsen the, the side defroster outlets and the temperature selector (1) is in the fuside outlets. lly Fresh Air (f) COLD position or fully HOT position, how-Defrost (e) When this mode is selected, the indicator ever, the air from the floor outlets and the light will go off and outside air is used. air from the center and side outlets will be the same temperature. Recirculated Air (g) Heat (c) When this mode is selected, the indicator light will come on, outside air is shut out and inside air is recirculated. This mode is suitable when driving through dusty or pol- 79J069 luted air such as in a tunnel, or when attempting to quickly cool down the inte- Temperature-controlled air comes out of the windshield defroster outlets, the side rior. defroster outlets and the side outlets. “FRESH AIR” and “RECIRCULATED AIR” 79J067 are switched alternately each time the air Temperature-controlled air comes out of intake selector is pushed. the floor outlets and the side outlets, also comes out of the windshield defroster out- NOTE: lets and the side defroster outlets slightly. If you select “RECIRCULATED AIR” for an extended period of time, the air in the vehi- cle can become contaminated. Therefore, you should occasionally select “FRESH AIR”. 4-23 80J22-03E
