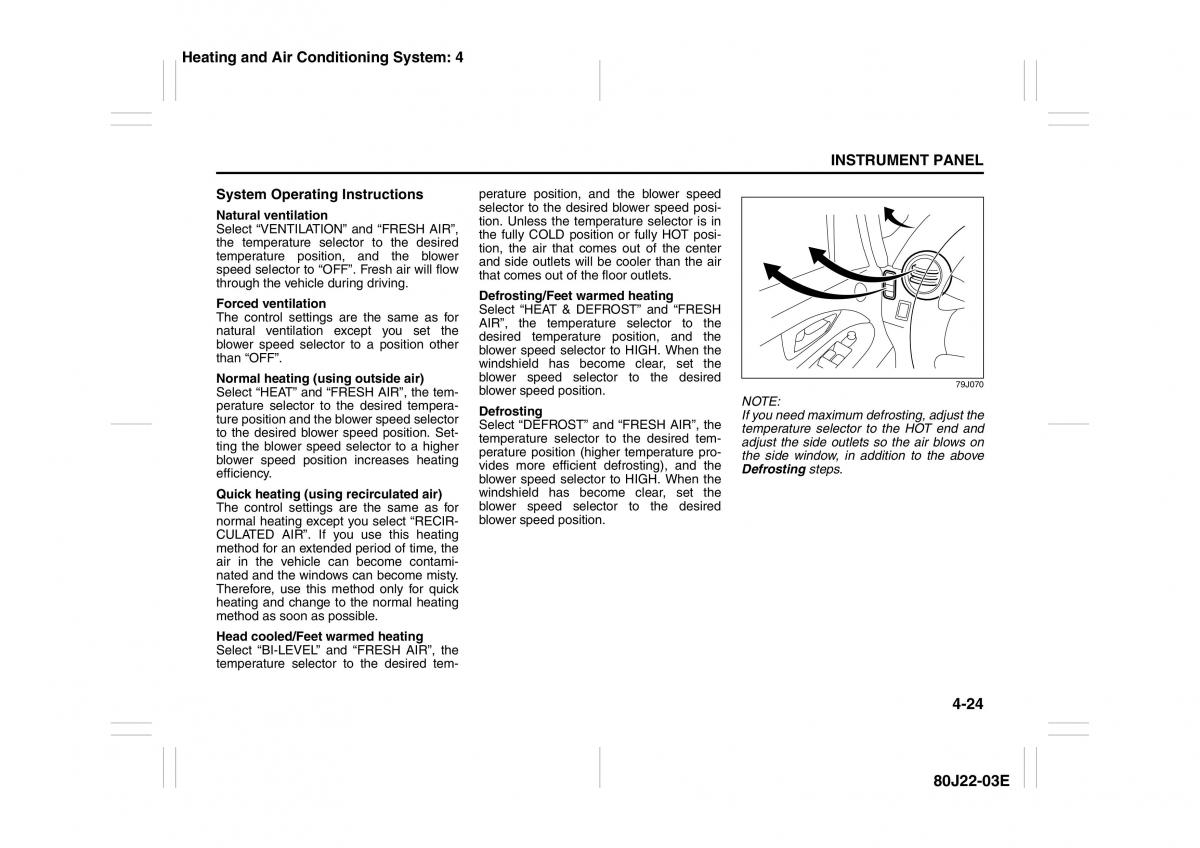

Heating and Air Conditioning System: 4 INSTRUMENT PANEL System Operating Instructions perature position, and the blower speed Natural ventilation selector to the desired blower speed posi- tion. Unless the temperature selector is in Select “VENTILATION” and “FRESH AIR”, the fully COLD position or fully HOT posi- the temperature selector to the desired tion, the air that comes out of the center temperature position, and the blower speed selector to “OFF”. Fresh air will flowand side outlets will be cooler than the air through the vehicle during driving. that comes out of the floor outlets. Forced ventilation Defrosting/Feet warmed heating Select “HEAT & DEFROST” and “FRESH The control settings are the same as for AIR”, the temperature selector to the natural ventilation except you set the desired temperature position, and the blower speed selector to a position other than “OFF”. blower speed selector to HIGH. When the windshield has become clear, set the Normal heating (using outside air) blower speed selector to the desired 79J070 Select “HEAT” and “FRESH AIR”, the tem-blower speed position. NOTE: perature selector to the desired tempera-Defrosting If you need maximum defrosting, adjust the ture position and the blower speed selectorSelect “DEFROST” and “FRESH AIR”, the temperature selector to the HOT end and to the desired blower speed position. Set-temperature selector to the desired tem- ting the blower speed selector to a higher perature position (higher temperature pro-adjust the side outlets so the air blows on blower speed position increases heating the side window, in addition to the above vides more efficient defrosting), and the efficiency. blower speed selector to HIGH. When the Defrosting steps. Quick heating (using recirculated air) windshield has become clear, set the blower speed selector to the desired The control settings are the same as for normal heating except you select “RECIR- blower speed position. CULATED AIR”. If you use this heating method for an extended period of time, the air in the vehicle can become contami- nated and the windows can become misty. Therefore, use this method only for quick heating and change to the normal heating method as soon as possible. Head cooled/Feet warmed heating Select “BI-LEVEL” and “FRESH AIR”, the temperature selector to the desired tem- 4-24 80J22-03E
