text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147, year of production 2000 - 2010:

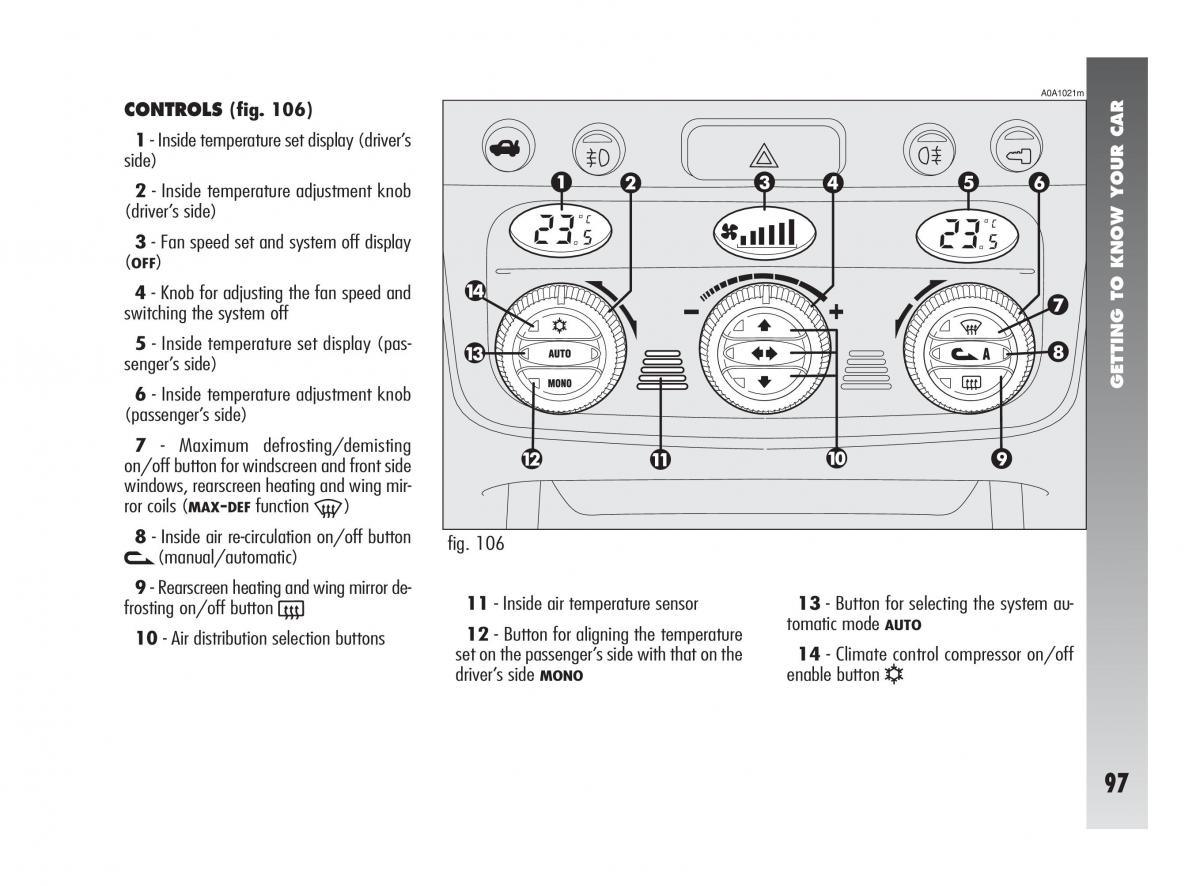

086-109_Alfa147 Q2 GB 4-07-2008 12:00 Pagina 97 A0A1021m CONTROLS (fig. 106) s1 - Inside temperature set display (driver’ side) 2- Inside temperature adjustment knob (driver’s side) 3- Fan speed set and system off display (OFF) 4- Knob for adjusting the fan speed and switching the system off 5- Inside temperature set display (pas- senger’s side) 6- Inside temperature adjustment knob GETTING TO KNOW YOUR CAR (passenger’s side) 7 - Maximum defrosting/demisting on/off button for windscreen and front side windows, rearscreen heating and wing mir- ror coils ( MAX-DEF function ) - 8- Inside air re-circulation on/off button fig. 106 (manual/automatic) v 9- Rearscreen heating and wing mirror de- 11- Inside air temperature sensor 13- Button for selecting the system au- frosting on/off button ( tomatic mode AUTO 10- Air distribution selection buttons 12- Button for aligning the temperature set on the passenger’s side with that on the 14- Climate control compressor on/off driver’s side MONO enable button √ 97
