text version of content this owner's manual page from owners manual to the vehicle Alfa Romeo 147, year of production 2000 - 2010:

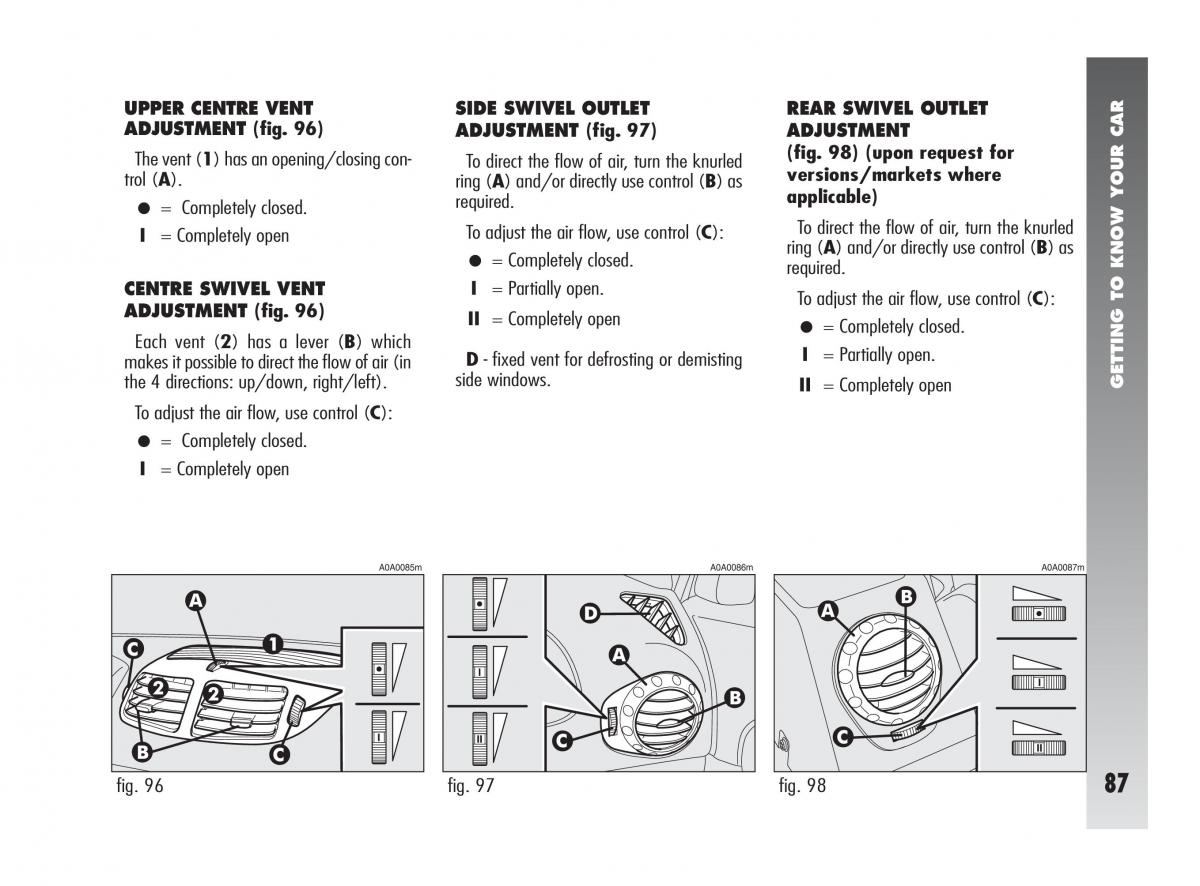

086-109_Alfa147 Q2 GB 4-07-2008 12:00 Pagina 87 UPPER CENTRE VENT SIDE SWIVEL OUTLET REAR SWIVEL OUTLET ADJUSTMENT (fig. 96) ADJUSTMENT (fig. 97) ADJUSTMENT The vent (1) has an opening/closing con- To direct the flow of air, turn the knurled (fig. 98) (upon request for trol (A). ring (A) and/or directly use control (B) as versions/markets where •= Completely closed. required. applicable) I =Completely open To adjust the air flow, use control (C): To direct the flow of air, turn the knurled =Completely closed. ring (A) and/or directly use control (B) as • required. CENTRE SWIVEL VENT I =Partially open. To adjust the air flow, use control (C): ADJUSTMENT (fig. 96) II =Completely open •=Completely closed. Each vent (2) has a lever (B) which I =Partially open. makes it possible to direct the flow of air (in D- fixed vent for defrosting or demisting the 4 directions: up/down, right/left). side windows. II =Completely open GETTING TO KNOW YOUR CAR To adjust the air flow, use control (C): •= Completely closed. I =Completely open A0A0085m A0A0086m A0A0087m fig. 96 fig. 97 fig. 98 87
