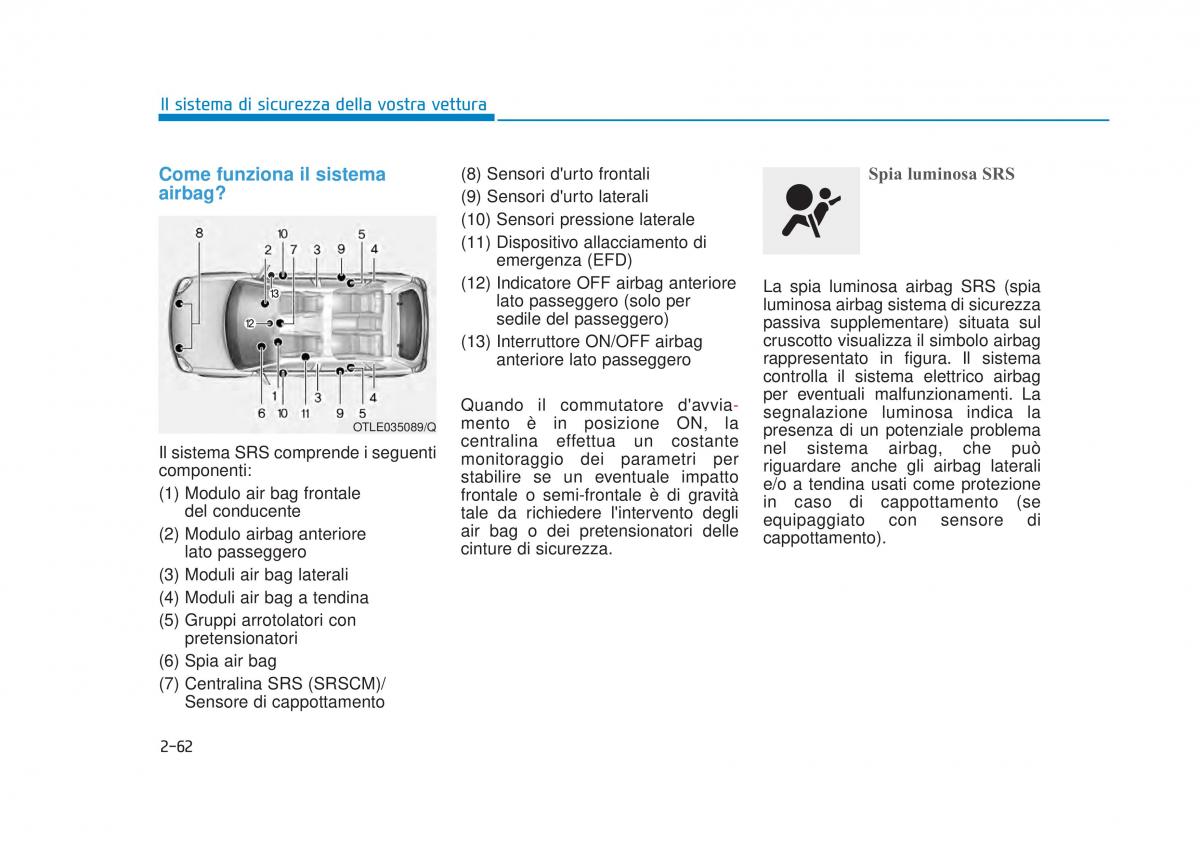

TLe ITALY 2.qxp 7/13/2015 4:52 PM Page 62
Il sistema di sicurezza della vostra vettura
Come funziona il sistema (8) Sensori d'urto frontali Spia luminosa SRS
airbag? (9) Sensori d'urto laterali
(10) Sensori pressione laterale
(11) Dispositivo allacciamento di
emergenza (EFD)
(12) Indicatore OFF airbag anteriore La spia luminosa airbag SRS (spia
lato passeggero (solo per luminosa airbag sistema di sicurezza
sedile del passeggero) passiva supplementare) situata sul
(13) Interruttore ON/OFF airbag cruscotto visualizza il simbolo airbag
anteriore lato passeggero rappresentato in figura. Il sistema
controlla il sistema elettrico airbag
per eventuali malfunzionamenti. La
Quando il commutatore d'avvia-
segnalazione luminosa indica la
OTLE035089/Qmento è in posizione ON, la
presenza di un potenziale problema
centralina effettua un costante
Il sistema SRS comprende i seguenti nel sistema airbag, che può
monitoraggio dei parametri per
componenti: riguardare anche gli airbag laterali
stabilire se un eventuale impatto
(1) Modulo air bag frontale e/o a tendina usati come protezione
frontale o semi-frontale è di gravità
del conducente in caso di cappottamento (se
tale da richiedere l'intervento degli
equipaggiato con sensore di
(2) Modulo airbag anteriore air bag o dei pretensionatori delle
lato passeggero cinture di sicurezza. cappottamento).
(3) Moduli air bag laterali
(4) Moduli air bag a tendina
(5) Gruppi arrotolatori con
pretensionatori
(6) Spia air bag
(7) Centralina SRS (SRSCM)/
Sensore di cappottamento
2-62
