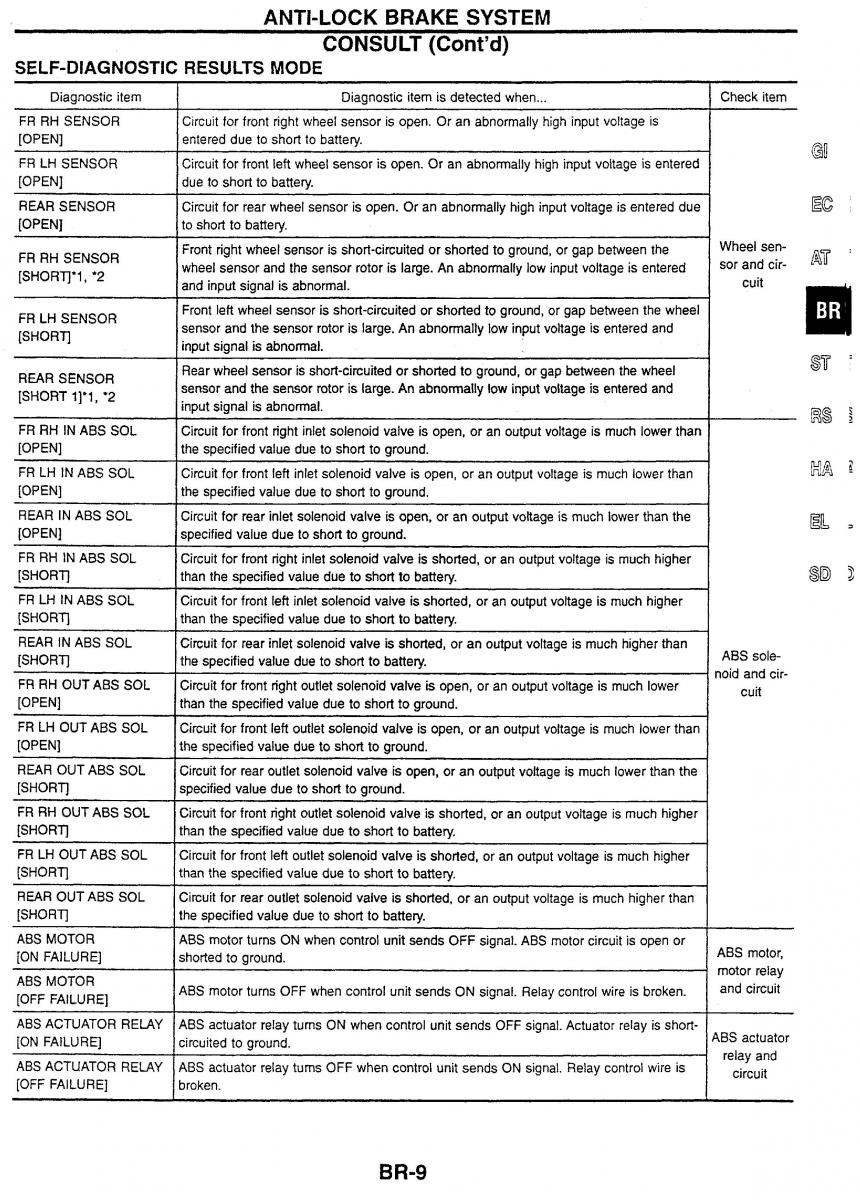

Nissan Skyline R34 workshop service manual page 88

text version of content this owner's manual page from owners manual to the vehicle Nissan Skyline, year of production 1998 - 2002:

ANTI-LOCK BRAKE SYSTEM CONSULT (Cont'd) SELF-DIAGNOSTIC RESULTS MODE Diagnostic item I Diagnostic item is detected when . I Check item FR RH SENSOR Circuit for front right wheel sensor is open. Or an abnormally high input voltage is [OPEN] entered due to short to battery. - -- -- - - - --- FR LH SENSOR Circuit for front left wheel sensor is open. Or an abnormally high input voltage is entered [OPEN] due to short to battery. 1 REAR SENSOR Circuit for rear wheel sensor is open. Or an abnormally high input voltage is entered due [OPEN] to short to battery. 1 FR RH SENSOR Front right wheel sensor is short-circuited or shorted to ground, or gap between the Wheel sen- [SHORTJ'I , '2 wheel sensor and the sensor rotor is large. An abnormally low input voltage is entered sor and cir- and input signal is abnormal. cuit FR LH SENSOR Front left wheel sensor is short-circuited or shorted to ground, or gap between the wheel [SHORT] sensor and the sensor rotor is large. An abnormally low input voltage is entered and input signal is abnormal. REAR SENSOR Rear wheel sensor is short-circuited or shorted to ground, or gap between the wheel [SHORT 11'1, '2 sensor and the sensor rotor is large. An abnormally low input voltage is entered and input signal is abnormal. FR RH IN ABS SOL Circuit for front right inlet solenoid valve is open, or an output voltage is much lower than [OPEN] the specified value due to short to ground. FR LH IN ABS SOL Circuit for front left inlet solenoid valve is open, or an output voltage is much lower than [OPEN] the specified value due to short to ground. REAR IN ABS SOL Circuit for rear inlet solenoid valve is open, or an output voltage is much lower than the [OPEN] specified value due to short to ground. FR RH IN ABS SOL Circuit for front right inlet solenoid valve is shorted, or an output voltage is much higher [SHORT] than the specified value due to short to battery. FR LH IN ABS SOL Circuit for front left inlet solenoid valve is shorted, or an output voltage is much higher [SHORT] than the specified value due to short to battery. REAR IN ABS SOL Circuit for rear inlet solenoid valve is shorted, or an output voltage is much higher than ABS sole- [SHORTJ the specified value due to short to battery. noid and cir- FR RH OUT ABS SOL Circuit for front right outlet solenoid valve is open, or an output voltage is much lower cuit [OPEN] than the specified value due to short to ground. FR LH OUT ABS SOL Circuit for front left outlet solenoid valve is open, or an output voltage is much lower than [OPEN] the specified value due to short to ground. REAR OUT ABS SOL Circuit for rear outlet solenoid valve is open, or an output voltage is much lower than the [SHORT] specified value due to short to ground. FR RH OUT ABS SOL Circuit for front right outlet solenoid valve is shorted, or an output voltage is much higher [SHORT] than the specified value due to short to battery. FR LH OUT ABS SOL Circuit for front left outlet solenoid valve is shorted, or an output voltage is much higher [SHORT] than the specified value due to short to battery. RWR OUT ABS SOL - -- -- - - Circuit for rear outlet solenoid valve is shorted, or an output voltage is much higher than [SHORT] the specified value due to short to battery. ABS MOTOR ABS motor turns ON when control unit sends OFF signal. ABS motor circuit is open or [ON FAILURE] shorted to ground. ABS motor, ABS MOTOR motor relay [OFF FAILURE] ABS motor turns OFF when control unit sends ON signal. Relay control wire is broken. and circuit ABS ACTUATOR RELAY ABS actuator relay tums ON when control unit sends OFF signal. Actuator relay is short- ABS actuator [ON FAILURE] circuited to ground. relay and ABS ACTUATOR RELAY ABS actuator relay tums OFF when control unit sends ON signal. Relay control wire is circuit [OFF FAILURE] broken.
