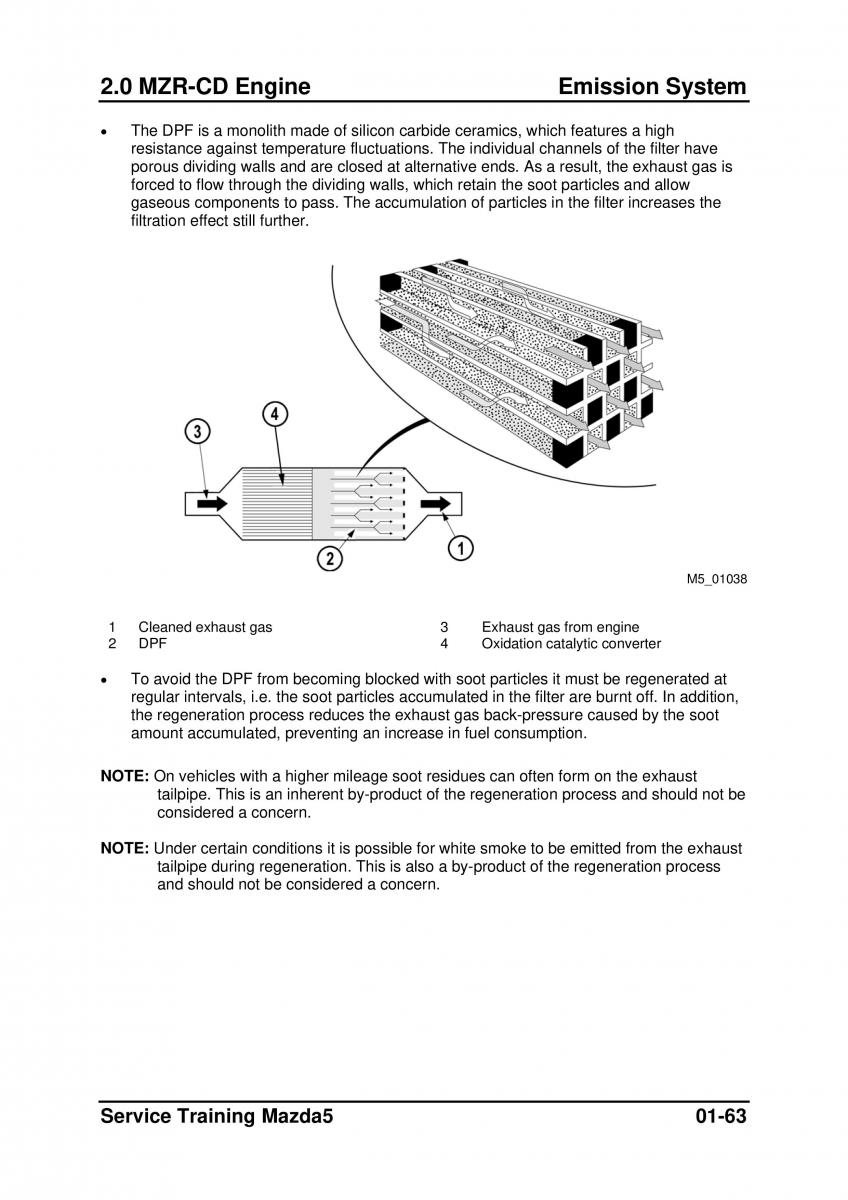

2.0 MZR-CD Engine Emission System
• The DPF is a monolith made of silicon carbide ceramics, which features a high
resistance against temperature fluctuations. The individual channels of the filter have
porous dividing walls and are closed at alternative ends. As a result, the exhaust gas is
forced to flow through the dividing walls
, which retain the soot particles and allow
gaseous components to pass. The accumulation of particles in the filter increases the
filtration effect still further.
M5_01038
1 Cleaned exhaust gas 3 Exhaust gas from engine
2 DPF 4 Oxidation catalytic converter
• To avoid the DPF from becoming blocked with soot particles it must be regenerated at
ccum la d in the filter are burnt off. In addition,
regular intervals, i.e. the soot particles au te
the regeneration process reduces the exhaust gas back-pressure caused by the soot
amount accumulated, preventing an increase in fuel consumption.
NOTE: On vehicles with a higher mileage soot residues can often form on the exhaust
tailpipe. This is an inherent by-product of the regeneration process and should not b e
considered a concern.
NOTE: Under certain conditions it is possible for white smoke to be emitted from the exhaust
ss
tailpipe during regeneration. This is also a by-product of the regeneration proce
n.
and should not be considered a concer
Service Training Mazda5 01-63
