text version of content this owner's manual page from owners manual to the vehicle Volvo DL GL Turbo, year of production 1974 - 1993:

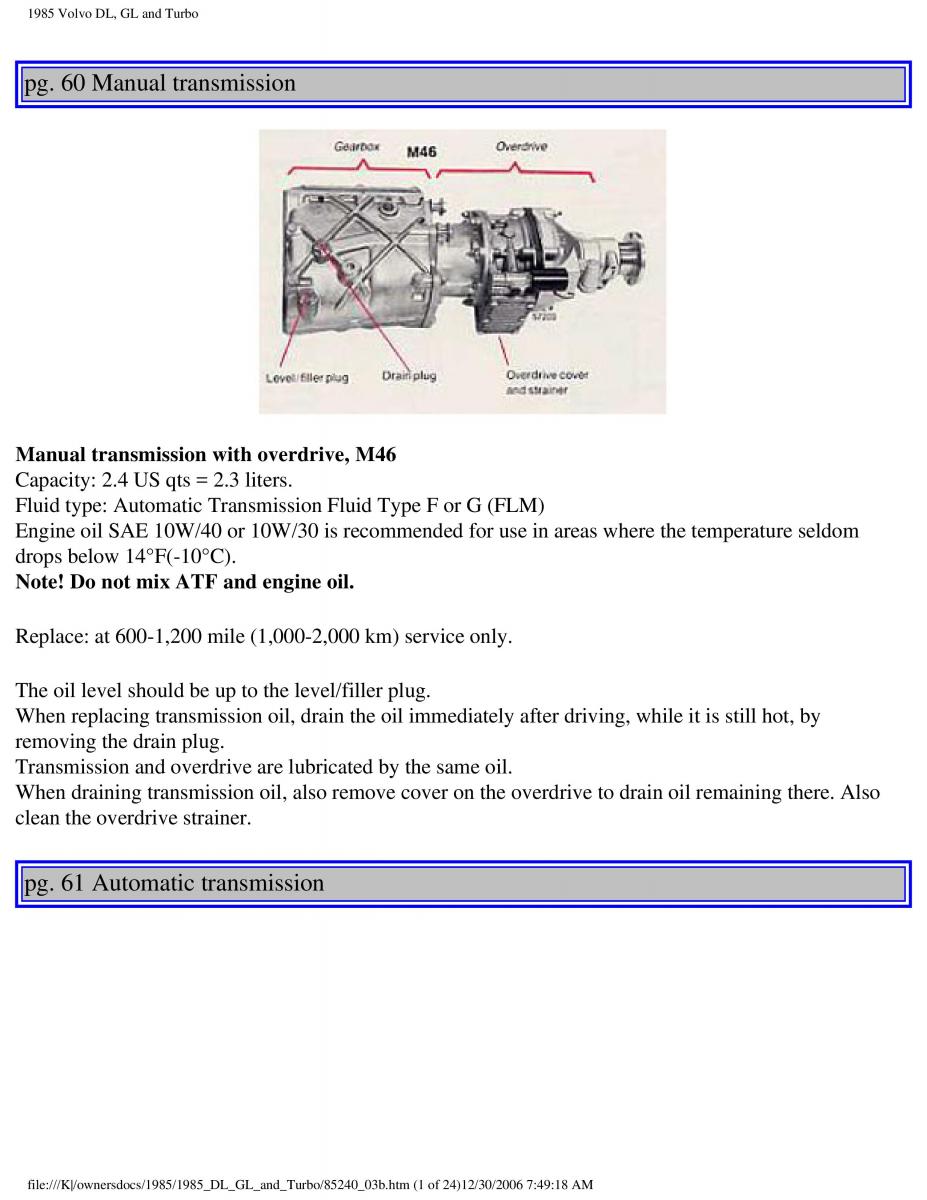

1985 Volvo DL, GL and Turbo pg. 60 Manual transmission Manual transmission with overdrive, M46 Capacity: 2.4 US qts = 2.3 liters. Fluid type: Automatic Transmission Fluid Type F or G (FLM) Engine oil SAE 10W/40 or 10W/30 is recommended for use in areas where the temperature seldom drops below 14°F(-10°C). Note! Do not mix ATF and engine oil. Replace: at 600-1,200 mile (1,000-2,000 km) service only. The oil level should be up to the level/filler plug. When replacing transmission oil, drain the oil immediately after driving, while it is still hot, by removing the drain plug. Transmission and overdrive are lubricated by the same oil. When draining transmission oil, also remove cover on the overdrive to drain oil remaining there. Also clean the overdrive strainer. pg. 61 Automatic transmission file:///K|/ownersdocs/1985/1985_DL_GL_and_Turbo/85240_03b.htm (1 of 24)12/30/2006 7:49:18 AM
