text version of content this owner's manual page
from owners manual to the vehicle Toyota Avensis, year of production 2008 - 2015:

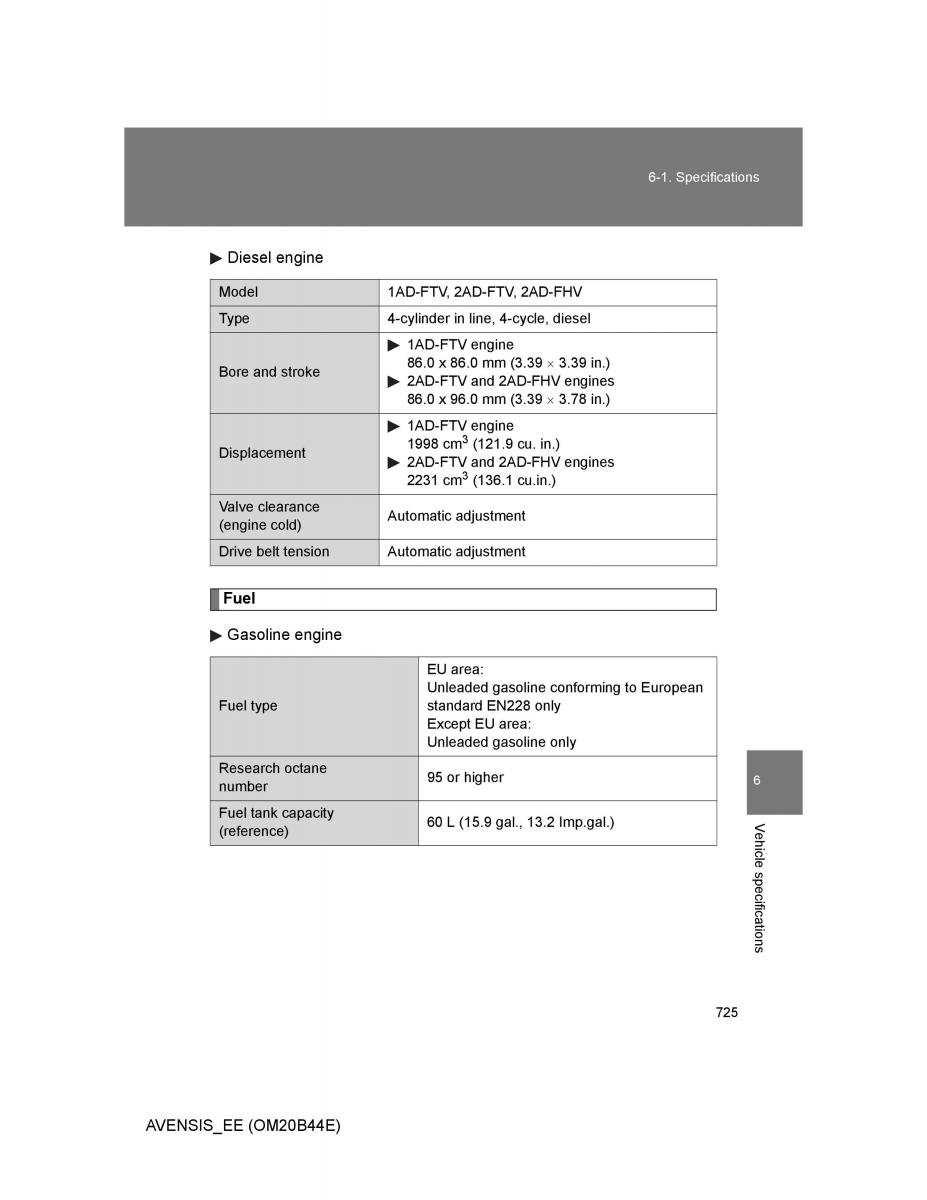

6-1. Specifications
Diesel engine
Model 1AD-FTV, 2AD-FTV, 2AD-FHV
Type 4-cylinder in line, 4-cycle, diesel
1AD-FTV engine
Bore and stroke 86.0 x 86.0 mm (3.39 3.39 in.)
2AD-FTV and 2AD-FHV engines
86.0 x 96.0 mm (3.39 3.78 in.)
1AD-FTV engine
3
Displacement 1998 cm (121.9 cu. in.)
2AD-FTV and 2AD-FHV engines
3
2231 cm (136.1 cu.in.)
Valve clearance Automatic adjustment
(engine cold)
Drive belt tension Automatic adjustment
Fuel
Gasoline engine
EU area:
Unleaded gasoline conforming to European
Fuel type standard EN228 only
Except EU area:
Unleaded gasoline only
Research octane 95 or higher 6
number
Fuel tank capacity 60 L (15.9 gal., 13.2 Imp.gal.) Vehi
(reference)
cl
e specificatio
ns
725
AVENSIS_EE (OM20B44E)
