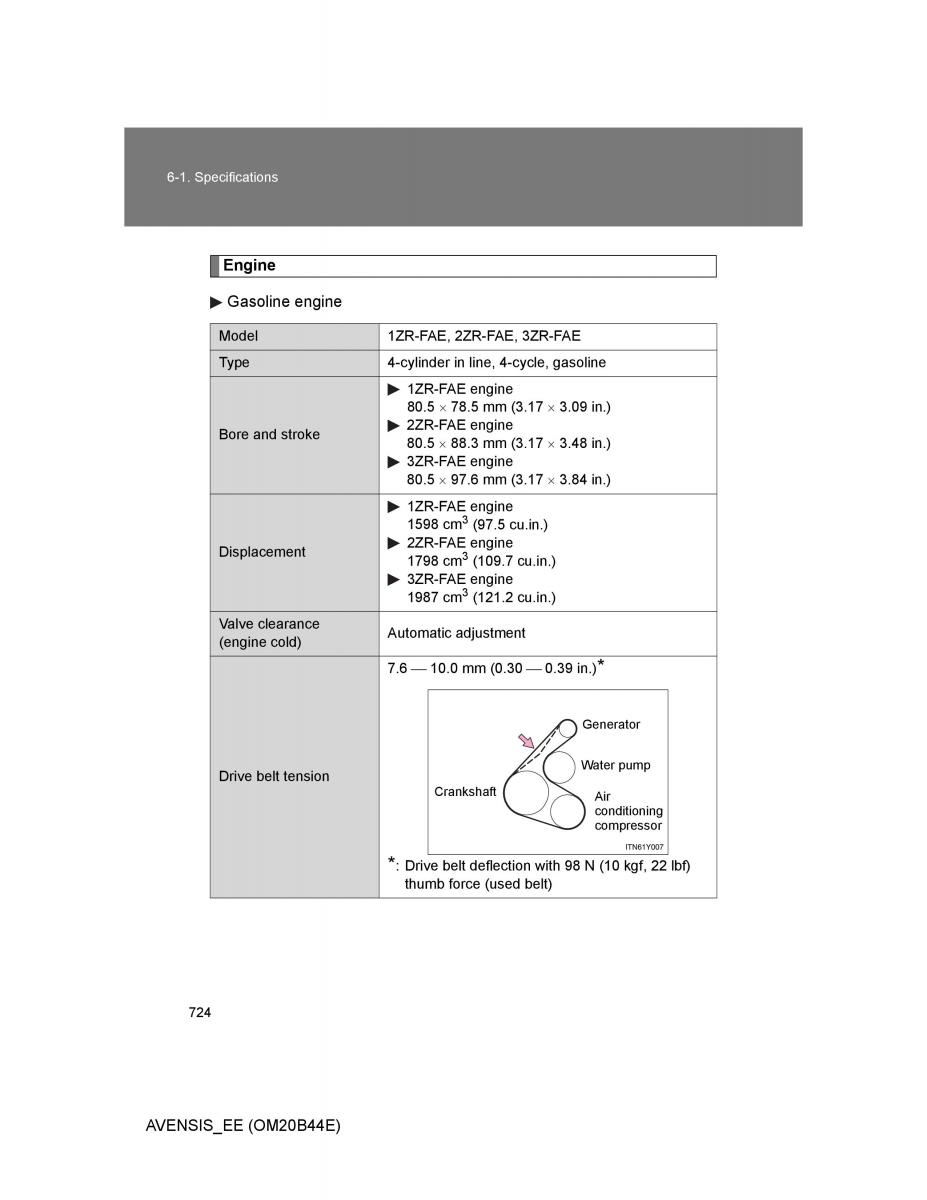

6-1. Specifications
Engine
Gasoline engine
Model 1ZR-FAE, 2ZR-FAE, 3ZR-FAE
Type 4-cylinder in line, 4-cycle, gasoline
1ZR-FAE engine
80.5 78.5 mm (3.17 3.09 in.)
Bore and stroke 2ZR-FAE engine
80.5 88.3 mm (3.17 3.48 in.)
3ZR-FAE engine
80.5 97.6 mm (3.17 3.84 in.)
1ZR-FAE engine
3
1598 cm (97.5 cu.in.)
Displacement 2ZR-FAE engine
3
1798 cm (109.7 cu.in.)
3ZR-FAE engine
3
1987 cm (121.2 cu.in.)
Valve clearance Automatic adjustment
(engine cold)
7.6 10.0 mm (0.30 0.39 in.)*
Generator
Drive belt tension Water pump
Crankshaft Air
conditioning
compressor
*: Drive belt deflection with 98 N (10 kgf, 22 lbf)
thumb force (used belt)
724
AVENSIS_EE (OM20B44E)
